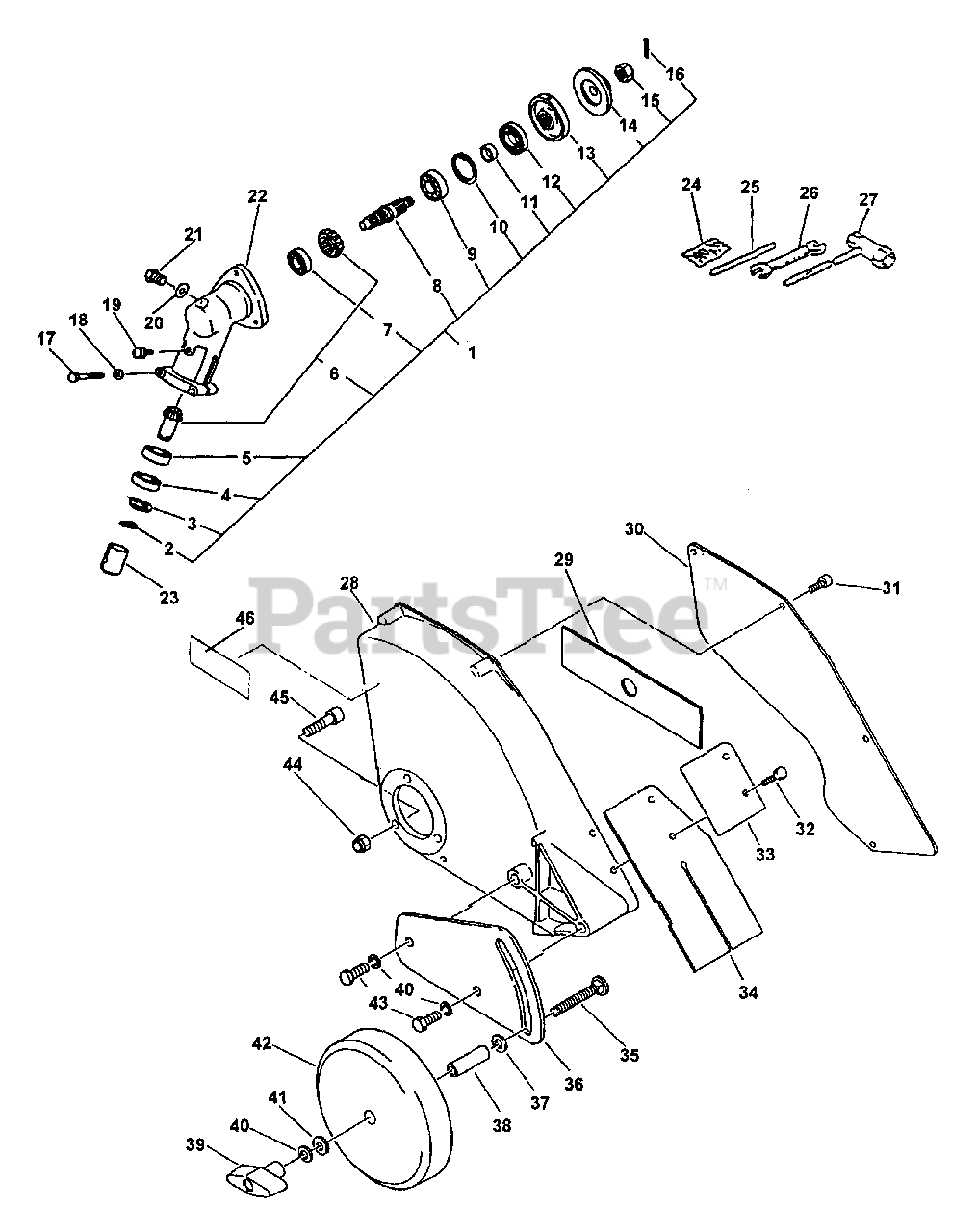

PE-2000 - Echo Edger (Type 1) Gear Case, Shield, Tools S/N: 007508 - 021578 Parts Diagram

Edger (Type 1)

Gear Case, Shield, Tools S/N: 007508 - 021578 Parts Diagram

  • Title

1

Echo 61040055330

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 2-22

$

$

Not available

2

Echo 61033555330

RING, RETAINING - 18
(Superseded to Discontinued)

$

$

Not available

3

Echo 10022955330

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

4

Echo 90080400609

BEARING, BALL - 609

$15.99

$

In Stock, Qty 5

0

5

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

6

Echo 61030055330

GEAR SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 90081400629

BEARING, BALL - 629

$11.99

$

Usually ships in 2-4 days

0

8

Echo 61031055330

GEAR - SHAFT
(Superseded to 61040040730)

$

$

Not available

9

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 3 left!

0

10

Echo 10023855330

RING, RETAINING - 20

$0.99

$

Usually ships in 2-4 days

0

11

Echo 61031555330

SPACER

$2.99

$

Usually ships in 2-4 days

0

12

Echo 61041355330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

13

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 5

0

14

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

15

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

16

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

20

Echo 61051155330

WASHER

$0.99

$

In Stock, only 1 left!

0

21

Echo 61051055330

FITTING, GREASE

$0.99

$

Usually ships in 2-4 days

0

22

Echo 61041055330

CASE, GEAR
(Superseded to 61040040730)

$

$

Not available

23

Echo 61022555330

COLLAR
(Superseded to 61022555331)

$6.99

$

In Stock, only 1 left!

0

24

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!

0

25

Echo 89751801131

LOCKING TOOL

$

$

Not available

26

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

27

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

28

Echo 69901055330

NEW BLADE SHIELD
(Superseded to P021007590)

$60.99

$

Usually ships in 2-4 days

0

29

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, Qty 20+

0

30

Echo 69901752630

COVER, SHIELD

$15.99

$

Usually ships in 2-4 days

0

31

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 8

0

32

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

33

Echo 69901355330

FLAP, DEBRIS

$3.49

$

Usually ships in 2-4 days

0

34

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 6

0

35

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

36

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$7.99

$

In Stock, Qty 9

0

37

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

38

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

39

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

40

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

41

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

42

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

43

Echo 90010008014

BOLT - 8X14

$0.99

$

In Stock, Qty 20+

0

44

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

45

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

46

Echo 89016052630

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0
