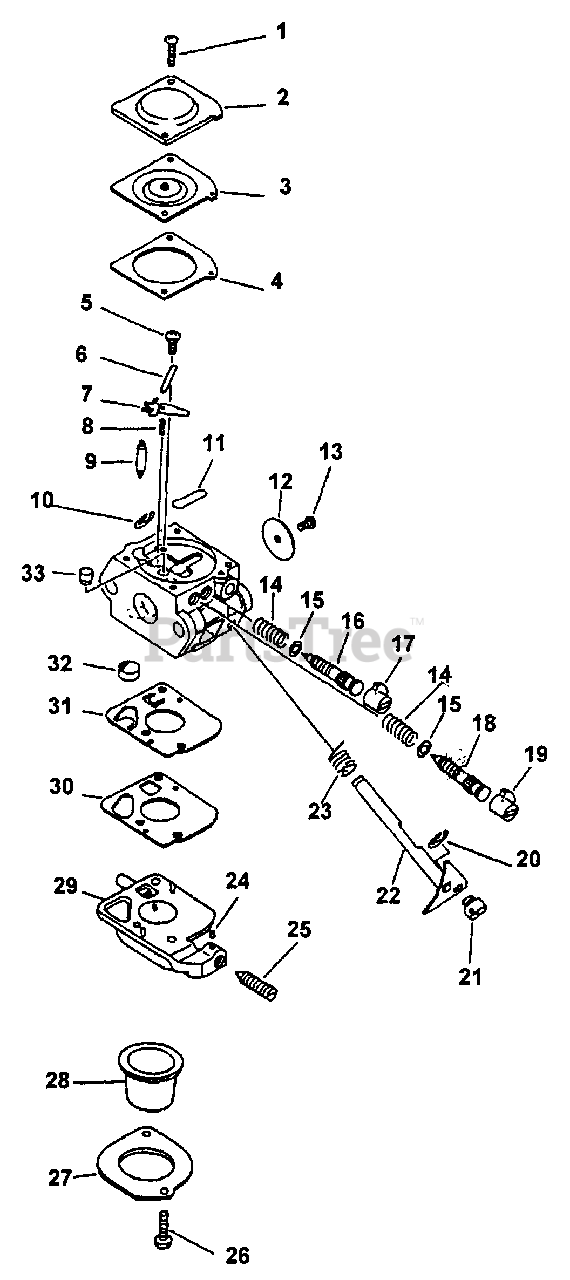

PE-2000 - Echo Edger (Type 1) Carburetor S/N: 024135 - 999999 Parts Diagram

Edger (Type 1)

Carburetor S/N: 024135 - 999999 Parts Diagram

  • Title

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

Note: INCLUDES THE FOLLOWING ITEMS

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530049030 & GASKET/DIAPHRAGM P/N 12530349030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530049030 & GASKET/DIAPHRAGM P/N 12530349030

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

12

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

16

Echo 12531807360

NEEDLE - LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12535153130

CAP, LIMITER
(Superseded to 12532909860)

$1.99

$

In Stock, Qty 13

0

18

Echo 12532007360

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

20

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

21

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

27

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

28

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

29

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

30

------------------

GASKET, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12530049030 & GASKET/DIAPHRAGM P/N 12530349030

$

$

Not available

31

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12530049030 & GASKET/DIAPHRAGM P/N 12530349030

$

$

Not available

32

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12530049030

$

$

Not available

33

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

Echo 12530049030

REPAIR KIT
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

Echo 12530349030

DIAPHRAGM/GASKET KIT
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0
