PD GT 26H48 A - Poulan Pro Lawn Tractor (2003) Steering Assembly Parts Diagram

Lawn Tractor

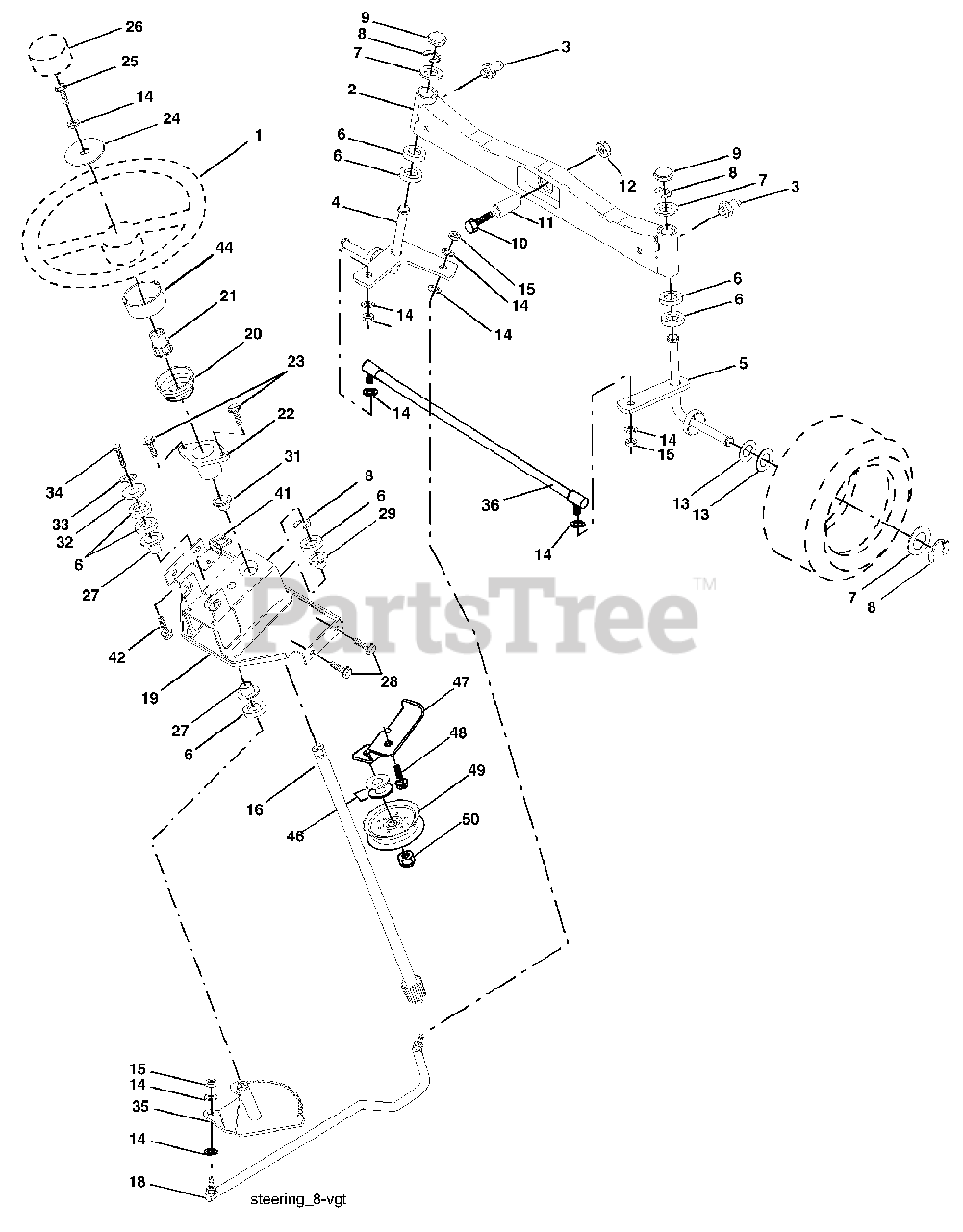

Steering Assembly Parts Diagram

  • Title
1

Electrolux/AYP 180656

Wheel, Steering

$

$

Not available

2

Electrolux/AYP 178557

Axle Asm., Front
(Superseded to 532178557)

$

$

Not available

3

Electrolux/AYP 6855M

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 161849

Spindle Asm, LH
(Superseded to 532161849)

$

$

Not available

5

Electrolux/AYP 161848

Spindle Asm., RH
(Superseded to 532161848)

$

$

Not available

6

Electrolux/AYP 6266H

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 12000029

Ring, Klip #T5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 121232X

Cap, Spindle
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

10

Electrolux/AYP 74781044

Bolt, Fin Hex 5/8-11 x 2-3/4
(Superseded to 874781044)

$

$

Not available

11

Electrolux/AYP 136518

Spacer, Brg. Axle Front
(Superseded to 532136518)

$9.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 73901000

Nut, Lock Flange 5/8-11 Unc
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 7810H

Nut Lock Center 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 145103

Shaft Asm., Steering
(Superseded to 532145103)

$121.99

$

In Stock, only 3 left!

0

18

Electrolux/AYP 175572

Draglink, Ball Joint Solid Vgt
(Superseded to 532175572)

$74.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 156011

Support Asm., Steering Vgt
(Superseded to 532156011)

$

$

Not available

20

Electrolux/AYP 163887X428

Boot Steering Stealth
(Superseded to 532163887)

$

$

Not available

21

Electrolux/AYP 159945

Adapter, Wheel Steering
(Superseded to 532159945)

$

$

Not available

22

Electrolux/AYP 155105

Bushing, Strg.
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

24

UNKNOWN

$

$

Not available

25

Electrolux/AYP 74780616

Bolt, Fin Hex 3/8-16 x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 180657

Insert Cap Strg WH

$

$

Not available

27

Electrolux/AYP 3366R

Bearing, Col. Strg.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 17000612

Screw Hexwsh thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 104239X

Bearing, Flange
(Superseded to 532104239)

$12.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 138136

Bushing, Nyliner Snap
(Superseded to 532138136)

$10.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 19111610

Washer 11/32 x 1 x 10 Ga.
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 10040500

Washer, Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 74780512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 138059

Gear, Sector Steering
(Superseded to 532138059)

$

$

Not available

36

Electrolux/AYP 186799

Tie Rod
(Superseded to 532186799)

$87.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 155246

Bracket Switch Interlock Vgt 97
(Superseded to 532155246)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2 Tyt
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 160135X428

Extension Steering
(Superseded to 574977501)

$

$

Not available

45

Electrolux/AYP 19132411

Washer 13/32 x 1-1/2 x 11 Ga.
(Superseded to 819132411)

$

$

Not available

46

Electrolux/AYP 19131610

Washer 13/32 x 1 x 10 Ga.
(Superseded to 819131610)

$6.49

$

In Stock, Qty 7

0

47

Electrolux/AYP 179471

Bracket Asm. Idler Stationary
(Superseded to 532179471)

$7.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 17060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 175820

Pulley Idler Flat
(Superseded to 596481401)

$26.99

$

In Stock, only 1 left!

0

50

Murray 73900600

Nut Lock Flg. 3/8-16 Unc

$

$

Not available
