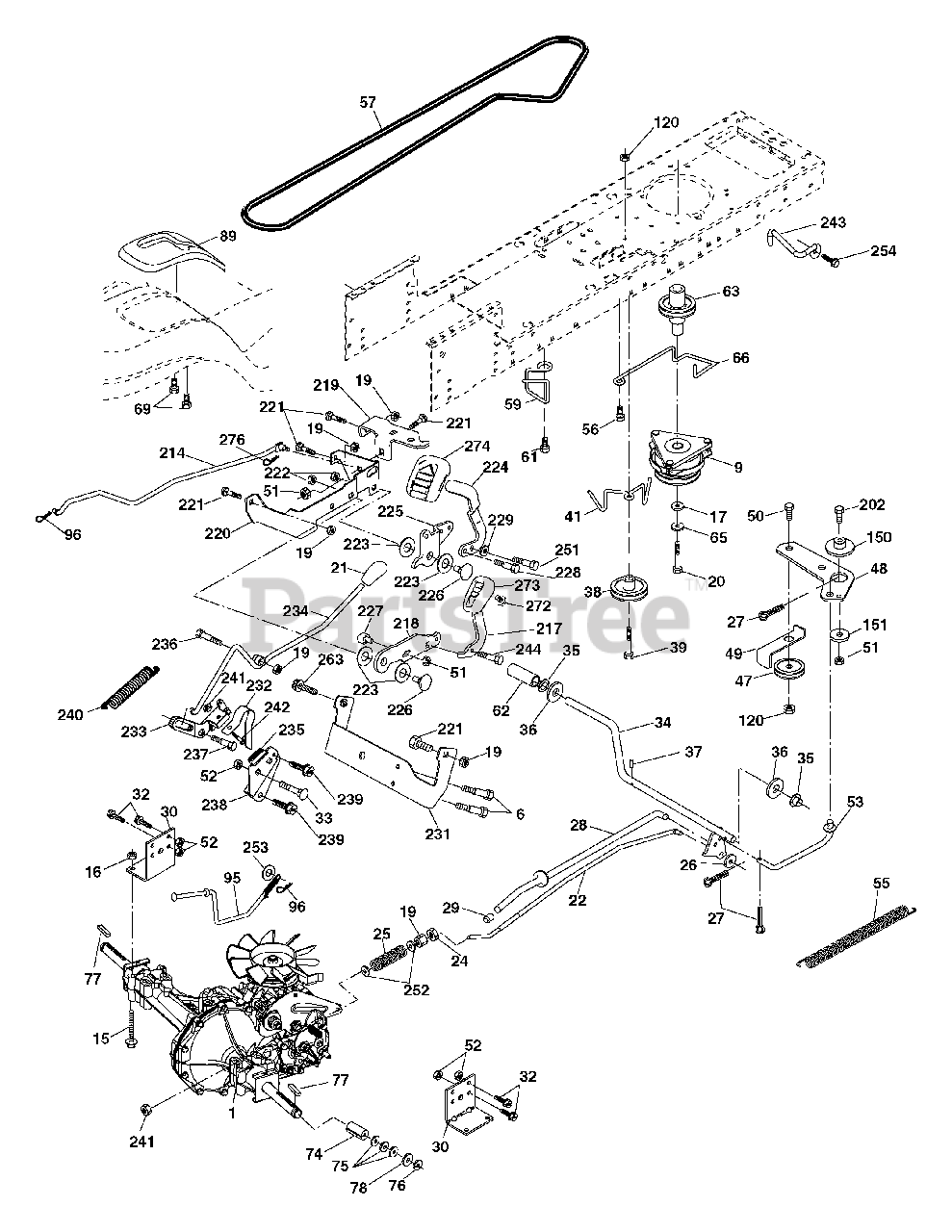

PD 24PH42ST (960170003-00) - Poulan Pro Lawn Tractor (2005) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle Hydro gear Model 347-0510 (See Breakdown)

$

$

Not available

6

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 180505

Clutch Elec
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74490544

Bolt Hex Flghd 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

Nut Lock Hex W/Ins. 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 126197X

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 73800600

Nut Lock Hex W/Wsh 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 175036X421

Knob Custom Control Cruise
(Superseded to 532186566)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 175896

Rod, Brake
(Superseded to 532175896)

$21.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 73350600

Nut, Hex Jam 3/8-16 unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 192036

Spring, Brake Rod
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 19131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 175765

Rod, Parking Brake
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap Brake Parking
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 169592

Bracket, Transaxle
(Superseded to 532169592)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

Bolt Hex Hd 5/16-18 unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 175578

Shaft, Foot Pedal
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin, Roll

$

$

Not available

38

Electrolux/AYP 179114

Pulley, Composite, Flat
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 72110622

Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

41

Electrolux/AYP 175556

Keeper, Belt Idler Flat
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley, Idler, V-Groove

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drw Stl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 140294

V-Belt, Ground Drive
(Superseded to 532140294)

$39.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 169691

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 123533X

Cover, Pedal
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 174607

Pulley, Engine
(Superseded to 532174607)

$66.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4-1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 137057

Spacer, Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key, Square
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

89

Electrolux/AYP 188308X428

Console, Shift
(Superseded to 532192258)

$12.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 195631

Rod Bypass
(Superseded to 583227201)

$18.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

120

Murray 73900600

Nut Lock Flg 3/8-16 unc

$

$

Not available

150

Electrolux/AYP 175456

Spacer Retainer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

202

Electrolux/AYP 72110614

Bolt RDHD 3/8-16 unc x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

214

Electrolux/AYP 174735

Link Transaxle
(Superseded to 532174735)

$48.99

$

Usually ships in 3-10 days

0

217

Electrolux/AYP 179433

Pedal Reverse
(Superseded to 532179433)

$

$

Not available

218

Electrolux/AYP 174713

Arm Control Pedal Reverse
(Superseded to 532174713)

$

$

Not available

219

Electrolux/AYP 174839

Bracket Frest Pdl Ctrl. Hyd
(Superseded to 532174839)

$9.99

$

Usually ships in 3-10 days

0

220

Electrolux/AYP 174711

Bracket Mtg. Pedal Control
(Superseded to 532174711)

$14.99

$

Usually ships in 3-10 days

0

221

Electrolux/AYP 72140606

Bolt Rdhd Sqnk 3/8-16 unc x 3/4
(Superseded to 872140606)

$

$

Not available

222

Electrolux/AYP 73680700

Nut Crownlock 7/16-14 unc
(Superseded to 873680700)

$2.99

$

Usually ships in 3-10 days

0

223

Electrolux/AYP 174840

Washer Nylon 11/16 ID x .060
(Superseded to 532174840)

$

$

Not available

224

Electrolux/AYP 174736

Pedal Forward

$4.99

$

Usually ships in 3-10 days

0

225

Electrolux/AYP 174712

Arm Control Pedal Forward
(Superseded to 532174712)

$

$

Not available

226

Electrolux/AYP 174902

Bolt Pivot Spacer

$

$

Not available

227

Electrolux/AYP 174710

Cam Reverse Pedal LT
(Superseded to 532174710)

$7.49

$

In Stock, only 1 left!

0

228

Electrolux/AYP 179032

Bolt Shoulder 5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

229

Electrolux/AYP 176451

Washer Serrated 5/16 x .75
(Superseded to 532176451)

$4.99

$

Usually ships in 3-10 days

0

231

Electrolux/AYP 174573

Strap Torque
(Superseded to 532174573)

$9.49

$

Usually ships in 3-10 days

0

232

Electrolux/AYP 175570

Actuator Cruise Disengage

$2.49

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 174856

Pawl Control Cruise

$10.99

$

Usually ships in 3-10 days

0

234

Electrolux/AYP 174858

Lever Control Cruise
(Superseded to 532174858)

$17.99

$

Usually ships in 3-10 days

0

235

Electrolux/AYP 174857

Sector Control Cruise
(Superseded to 532174857)

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 128903

Bolt Shoulder 3/8-16 unc 1/44
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

237

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

238

Electrolux/AYP 175807

Arm Mtg. Cruise Sector

$4.49

$

Usually ships in 3-10 days

0

239

Electrolux/AYP 17490508

Screw Thdrol 5/16 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

240

Electrolux/AYP 175610

Spring Return Cruise Control
(Superseded to 532175610)

$7.99

$

Usually ships in 3-10 days

0

241

Electrolux/AYP 73930400

Nut Centerlock 1/4-20 unc

$

$

Not available

242

Electrolux/AYP 74780412

Bolt Fin Hex 1/4-20 x .75
(Superseded to 874780412)

$

$

Not available

243

Electrolux/AYP 190736

Bracket Anti-Rotation
(Superseded to 532190736)

$40.99

$

In Stock, only 3 left!

0

244

Electrolux/AYP 17490510

Screw 5/16-18 x 5/8
(Superseded to 817490510)

$4.99

$

Usually ships in 3-10 days

0

251

Electrolux/AYP 17060516

Screw 5/16-18
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

252

Electrolux/AYP 19131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

253

Electrolux/AYP 179422

Washer .3125 x .615 x 16 Gr.
(Superseded to 532179422)

$6.49

$

In Stock, only 2 left!

0

254

Electrolux/AYP 17000616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

263

Electrolux/AYP 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

272

Electrolux/AYP 17670508

Screw, 5/16-18 x 1/2 TT
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

273

Electrolux/AYP 179610

Pad, Reverse Pedal
(Superseded to 583093401)

$9.49

$

Usually ships in 3-10 days

0

274

Electrolux/AYP 175646

Cover Pedal Forward
(Superseded to 532175646)

$9.99

$

Usually ships in 3-10 days

0

276

Electrolux/AYP 178062

Clip Retainer .0375
(Superseded to 532178062)

$4.99

$

In Stock, only 1 left!
