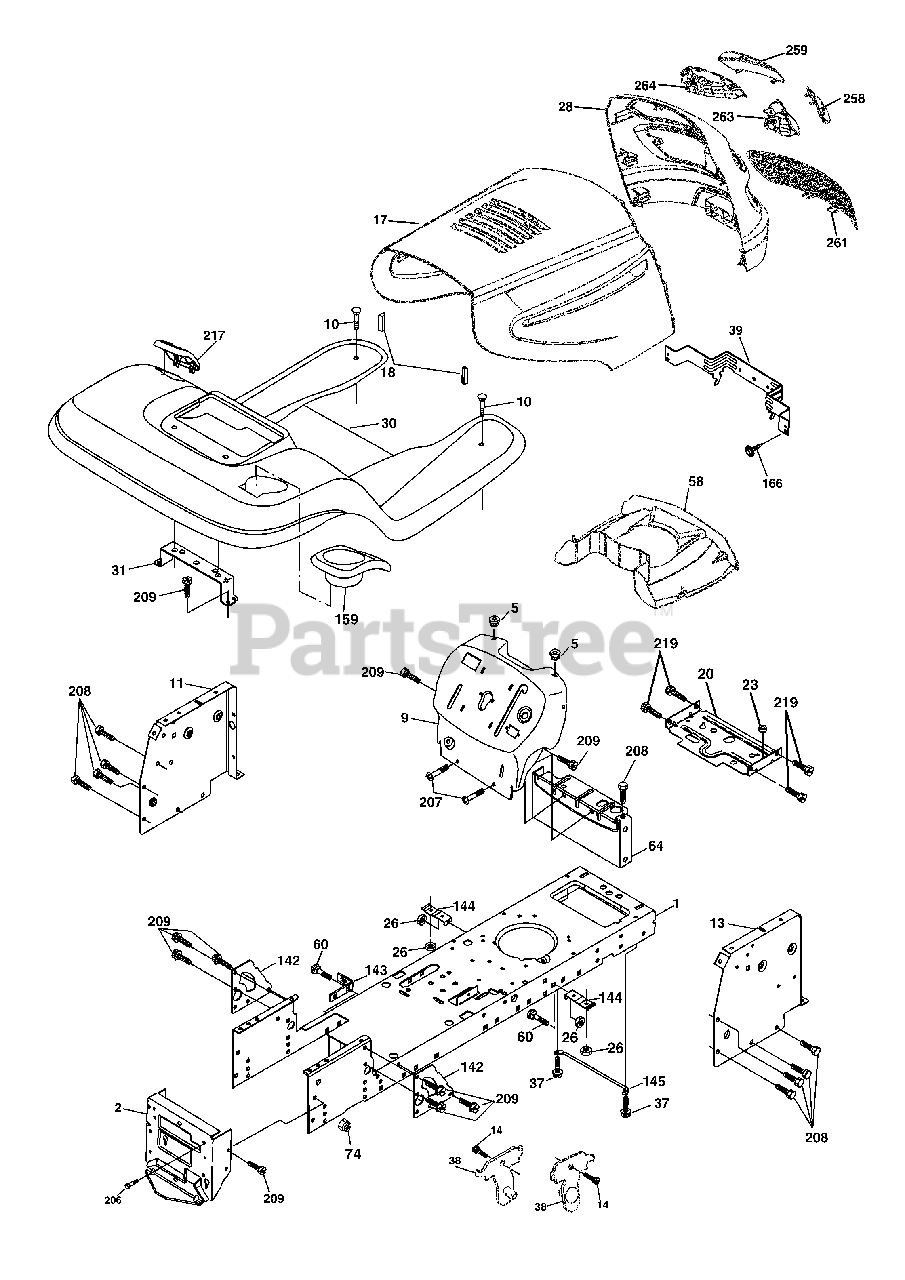

PD 22H42ST A - Poulan Pro Lawn Tractor (2004) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 168337X012

Dash P/L
(Superseded to 168337012)

$

$

Not available

10

Murray 72140608

Bolt Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 174996

Panel Dash Lh
(Superseded to 532174996)

$

$

Not available

13

Electrolux/AYP 175255

Panel Dash Rh

$10.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 183393X428

Hood
(Superseded to 532194588)

$78.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

Bumper Hood
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 180679

Plate Battery
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

Bushing

$

$

Not available

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 183828

Grille/Lens Asm
(Superseded to 583170701)

$

$

Not available

30

Electrolux/AYP 179131X428

Fender Footrest STLT Pnt
(Superseded to 583714001)

$267.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

Bracket Fender
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 174714

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

58

$

$

Not available

60

Electrolux/AYP 72140606

Bolt RDHD Sqnk 3/8-16 unc x 3/4
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 154798

Dash Lower STLT
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 124346X

Nut Self Thd Wsh - HD 1/4 Zinc
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 186689

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Electrolux/AYP 175582

Bracket Footrest Step-thru
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Electrolux/AYP 179950X428

Cupholder
(Superseded to 583701001)

$9.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 171875

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, only 3 left!

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

217

Electrolux/AYP 179132X428

Console Fuel Window
(Superseded to 532194618)

$7.49

$

Usually ships in 3-10 days

0

219

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

258

Electrolux/AYP 183835X599

Lens Grille Pro RH
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 183834X599

Lens Grille Pro LH
(Superseded to 183834599)

$

$

Not available

261

$

$

Not available

263

Electrolux/AYP 183832

Bezel Grille LH
(Superseded to 532183832)

$

$

Not available

264

Electrolux/AYP 183833

Bezel Grille RH
(Superseded to 532183833)

$

$

Not available
