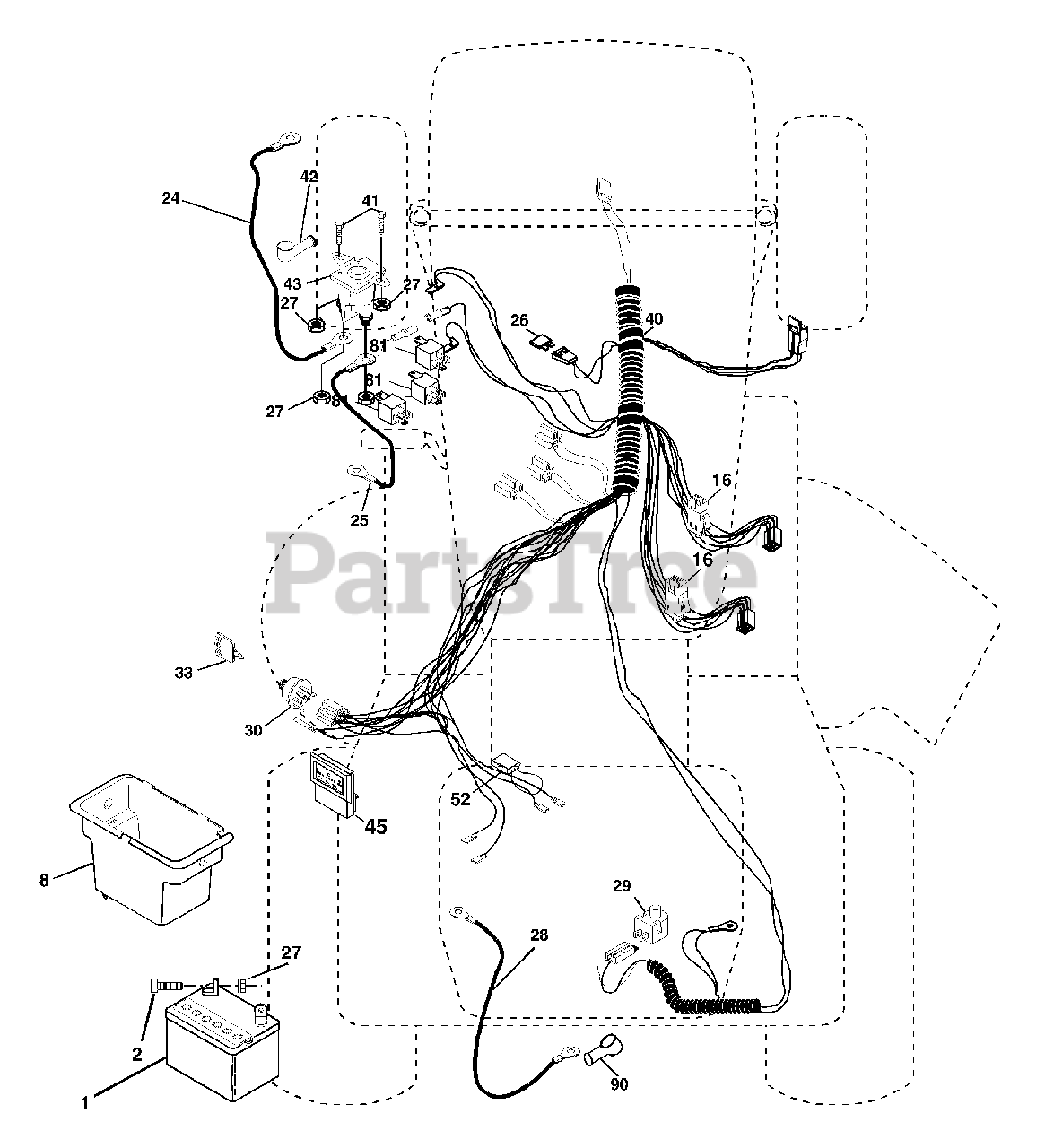

PD 18H42ST A - Poulan Pro Lawn Tractor (2003) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20unc X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 176689

Box Battery
(Superseded to 532176689)

$

$

Not available

16

Electrolux/AYP 176137

Switch Interlock
(Superseded to 532176137)

$24.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 183759

Harness Asm Light W/4152J
(Superseded to 532183759)

$47.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

Cable Battery 6 Ga w/16 wire,red
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse 20 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

Cable Ground 6 Ga 12" black
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 160784

Switch Plunger
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 175566

Switch Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

Key Ign
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 179722

Harness Ign
(Superseded to 532179722)

$218.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

Bolt Blk Fin Hex 1/4-20 X 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

Electrolux/AYP 122822X

Ammeter
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

Relay Asm.
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

90

Electrolux/AYP 180449

Cover Terminal

$2.99

$

Usually ships in 3-10 days

0
