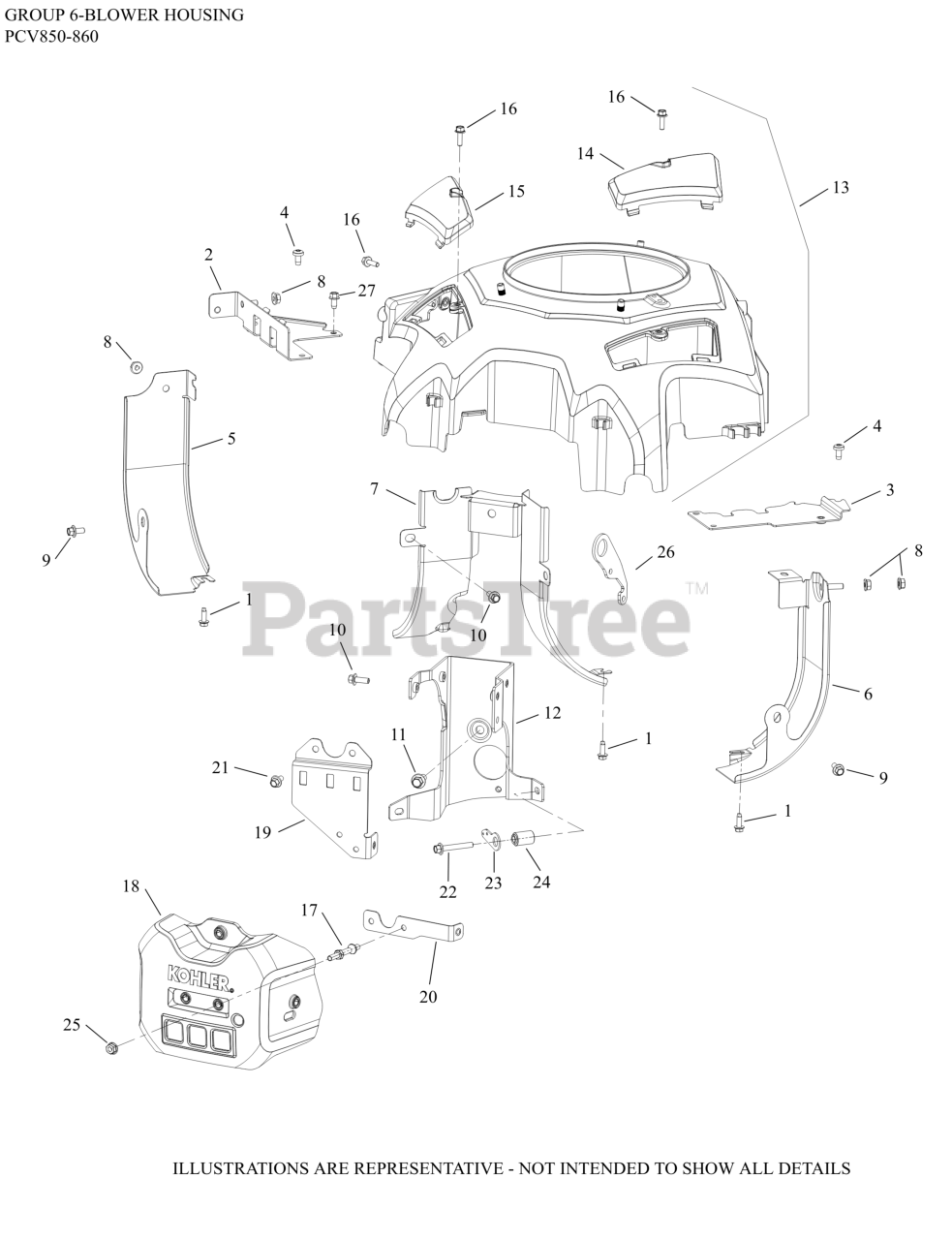

PCV860-3013 - Kohler Command PRO EFI Propane Engine, Made for Dixie Chopper, 29hp 06 Blower Housing Parts Diagram

Command PRO EFI Propane Engine, Made for Dixie Chopper, 29hp

06 Blower Housing Parts Diagram

  • Title

1

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

2

Kohler 19 063 02-S

BAFFLE, CRANKCASE #1 CYLINDER

$10.99

$

Usually ships in 2-5 days

0

3

Kohler 19 063 03-S

BAFFLE, CRANKCASE #2 CYLINDER

$6.99

$

Usually ships in 2-5 days

0

5

Kohler 19 063 04-S

BAFFLE, BARREL #1 CYLINDER

$6.99

$

Usually ships in 2-5 days

0

6

Kohler 19 063 05-S

BAFFLE, BARREL #2 CYLINDER

$10.99

$

Usually ships in 2-5 days

0

7

Kohler 19 063 14-S

BAFFLE, VALLEY ASSEMBLY

$19.99

$

Usually ships in 2-5 days

0

9

Kohler M-651012-S

SCREW, FLG M6X1.0X12

$3.49

$

Usually ships in 2-5 days

0

10

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

11

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

Usually ships in 2-5 days

0

12

Kohler 19 126 10-S

BRACKET, THROTTLE BODY

$20.99

$

Usually ships in 2-5 days

0

13

Kohler 19 027 07-S

KIT, BLOWER HOUSING

$57.99

$

Usually ships in 2-5 days

0

14

Kohler 19 096 10-S

COVER, CLEAN OUT #2 CYLINDER

$6.49

$

In Stock, only 1 left!

0

15

Kohler 19 096 09-S

COVER, CLEAN OUT #1 CYLINDER

$6.49

$

Usually ships in 2-5 days

0

16

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

19

Kohler 19 126 05-S

BRACKET, FUSE HOLDER

$6.49

$

Usually ships in 2-5 days

0

21

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

22

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

23

Kohler 19 090 01-S

LEVER, GOVERNOR LINKAGE
(Superseded to 19 090 05-S)

Note: Before S/N 4922600011

$17.99

$

Usually ships in 2-5 days

0

24

Kohler 19 112 04-S

SPACER, STEPPED O.D.

$3.99

$

Usually ships in 2-5 days

0

25

Kohler 25 100 65-S

NUT, HEX FLANGE

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 19 090 05-S

LEVER, GOVERNOR LINKAGE

Note: After S/N 4922600001

$17.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 703-S

SCREW,THREAD FORMING

$2.49

$

In Stock, only 2 left!

0
