PCV860-3013 - Kohler Command PRO EFI Propane Engine, Made for Dixie Chopper, 29hp 02 CrankCase Parts Diagram

Command PRO EFI Propane Engine, Made for Dixie Chopper, 29hp

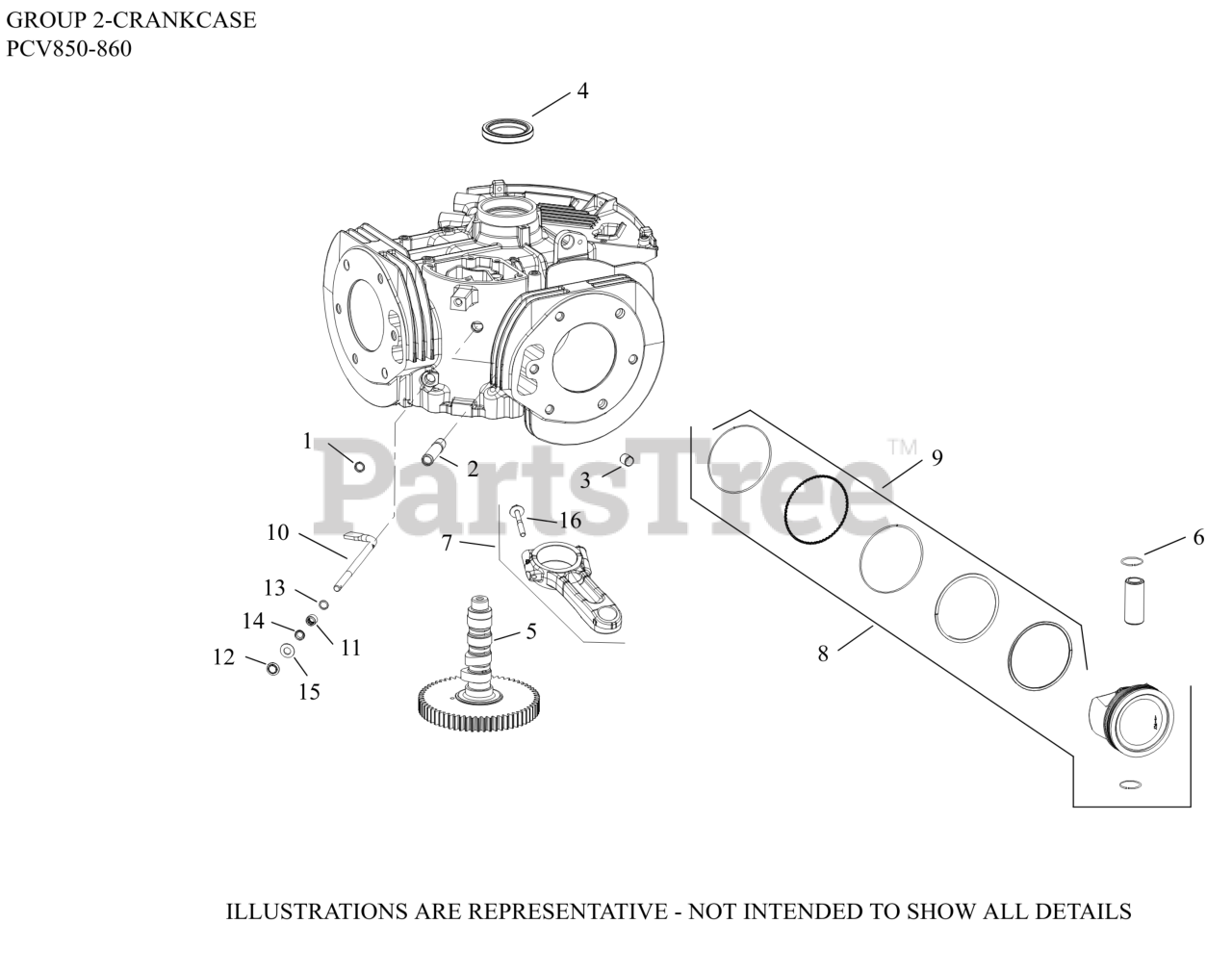

02 CrankCase Parts Diagram

  • Title

2

Kohler 19 294 02-S

FITTING, BREATHER HOSE

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

4

Kohler 25 032 16-S

SEAL, OIL

$8.49

$

In Stock, only 2 left!

0

4

Kohler 62 032 16-S

SEAL, OIL-(#2503218S)
(Superseded to 25 032 18-S)

$

$

Not available

5

Kohler 19 012 03-S

KIT, CAMSHAFT

$156.99

$

Usually ships in 2-5 days

0

6

Kohler 19 018 02-S

RETAINER, PISTON PIN

$2.49

$

In Stock, only 2 left!

0

7

Kohler 19 067 01-S

ROD, CONNECTING ASSEMBLY

$62.99

$

In Stock, only 2 left!

0

10

Kohler 19 144 01-S

SHAFT, GOVERNOR CROSS

$3.99

$

In Stock, only 1 left!

0

11

Kohler 28 030 05-S

BEARING, NEEDLE

$12.99

$

Usually ships in 2-5 days

0

12

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

15

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

NI

Kohler 19 108 04-S

KIT, RING SET (STD)

$141.99

$

Usually ships in 2-5 days

0

NI

Kohler 19 874 04-S

KIT, PISTON RINGS, PIN & CLIPS (STD)

$161.99

$

In Stock, only 3 left!

0

NI

Kohler 19 874 05-S

KIT, PISTON RINGS, PIN & CLIPS (.25)

$

$

Not available

NI

Kohler 19 874 06-S

KIT, PISTON RINGS, PIN & CLIPS (.50)

$

$

Not available

NI

Kohler 25 086 677-S

KIT, ROD BOLTS

$2.49

$

In Stock, only 3 left!

0
