PCV680-3018 - Kohler Command PRO EFI Propane Engine, Made for Medart/Blastrac, 22hp, 16.4kW 09 Engine Controls Parts Diagram

Command PRO EFI Propane Engine, Made for Medart/Blastrac, 22hp, 16.4kW

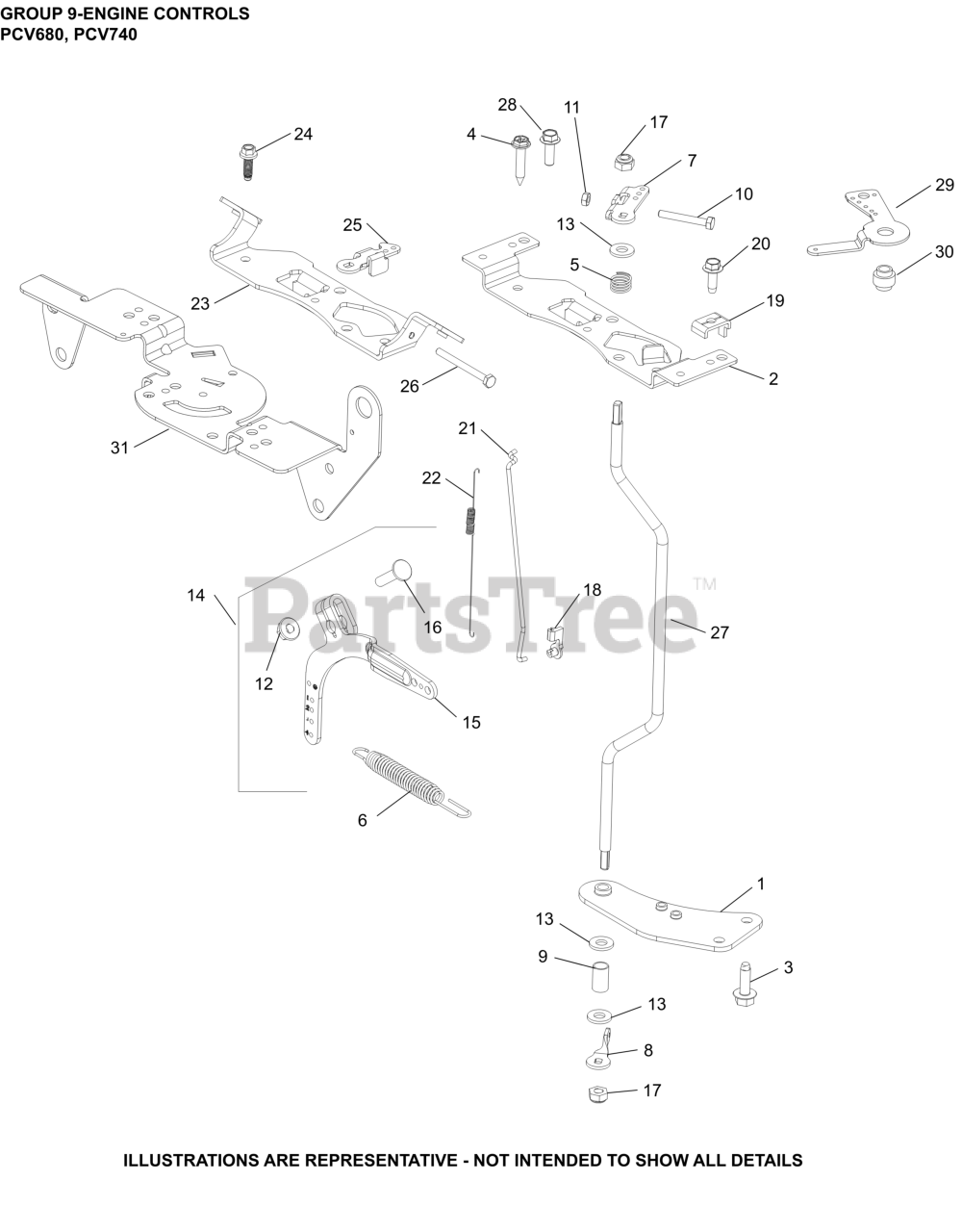

09 Engine Controls Parts Diagram

  • Title

1

Kohler 24 126 162-S

BRACKET, THROTTLE SHAFT

$8.99

$

In Stock, only 1 left!

0

3

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 089 20-S

SPRING, THROTTLE SHAFT

$5.49

$

In Stock, Qty 12

0

6

Kohler 24 089 46-S

SPRING, GOVERNOR (BLACK)

$8.99

$

In Stock, only 2 left!

0

8

Kohler 24 090 12-S

LEVER, THROTTLE CONTROL

$10.99

$

In Stock, only 1 left!

0

9

Kohler 24 112 10-S

SPACER

$2.99

$

In Stock, only 1 left!

0

12

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

13

Kohler X-25-72-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

14

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

15

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

16

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

17

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

18

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

21

Kohler 24 079 33-S

LINKAGE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

22

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

23

Kohler 24 126 231-S

BRACKET, CONTROL

$10.99

$

Usually ships in 2-5 days

0

25

Kohler 24 090 71-S

LEVER, THROTTLE CONTROL

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 25 086 428-S

SCREW, HEX HEAD

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 24 144 56-S

THROTTLE CONTROL SHAFT

$21.99

$

Usually ships in 2-5 days

0

28

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

NI

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 237 41-S

CLAMP, CABLE

$2.99

$

Usually ships in 2-5 days

0
