PCV680-3018 - Kohler Command PRO EFI Propane Engine, Made for Medart/Blastrac, 22hp, 16.4kW 08 Fuel System Parts Diagram

Command PRO EFI Propane Engine, Made for Medart/Blastrac, 22hp, 16.4kW

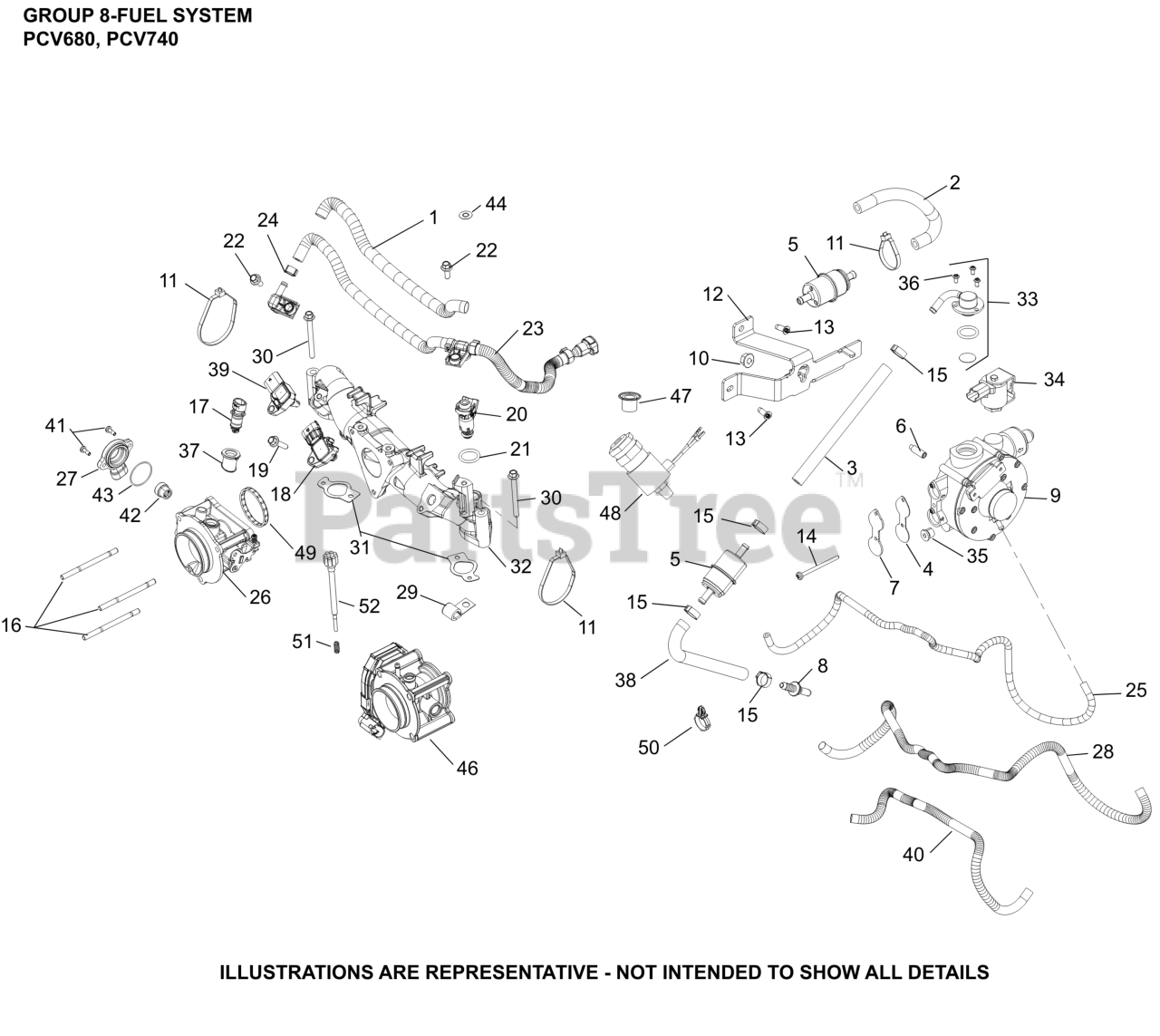

08 Fuel System Parts Diagram

  • Title

1

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

2

Kohler 24 111 40-S

HOSE, FUEL LOW PERMEATION

$16.99

$

Usually ships in 2-5 days

0

3

Kohler 24 111 41-S

HOSE, FUEL LOW PROPANE

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 25 041 13-S

GASKET

$2.49

$

In Stock, only 4 left!

0

5

Kohler 25 050 46-S

PROPANE FUEL FILTER-(#2505050S)
(Superseded to 25 050 50-S)

$45.99

$

In Stock, only 3 left!

0

5

Kohler 25 050 50-S

PROPANE FUEL FILTER KIT

$45.99

$

In Stock, only 3 left!

0

6

Kohler 25 072 28-S

STUD, LP REGULATOR

$5.99

$

In Stock, only 3 left!

0

7

Kohler 25 139 83-S

COVER, OIL PORT

$4.49

$

In Stock, only 4 left!

0

8

Kohler 25 294 28-S

FITTING, FUEL - STRAIGHT

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 25 403 33-S

REGULATOR, W/RTV

$609.99

$

Usually ships in 2-5 days

0

10

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 126 232-S

BRACKET, LP REGULATOR

$

$

Not available

13

Kohler 25 086 437-S

SCREW, THREAD FORMING

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

16

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

20

Kohler 25 331 02-S

INJECTOR, GASEOUS FUEL

$296.99

$

Usually ships in 2-5 days

0

21

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

22

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

23

Kohler 24 399 36-S

FUEL HOSE ASSY(ECV,FCV,EZT,EKT,PCH,PCV)

$137.99

$

Usually ships in 2-5 days

0

25

Kohler 24 326 143-S

HOSE, EVAPORATIVE

$5.49

$

In Stock, only 1 left!

0

26

Kohler 25 583 15-S

BODY, THROTTLE ASM W/ PIN (30)

$649.99

$

Usually ships in 2-5 days

0

27

Kohler 25 418 12-S

SENSOR, THROTTLE POSITION

$86.99

$

In Stock, only 1 left!

0

30

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

30

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

31

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$2.99

$

In Stock, Qty 7

0

32

Kohler 24 164 185-S

KIT, MANIFOLD

$100.99

$

Usually ships in 2-5 days

0

33

Kohler 25 294 38-S

KIT, OUTLET FITTING W/O-RING LPG

$96.99

$

In Stock, Qty 5

0

34

Kohler 25 435 10-S

KIT, LOCK-OFF ASSY LPG (A7-175)

$273.99

$

Usually ships in 2-5 days

0

35

Kohler 25 755 44-S

KIT, PLUG W/O-RING LPG (A7-173)

$16.99

$

In Stock, only 4 left!

0

36

Kohler 25 086 447-S

SCREW, STARTER SWITCH

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

40

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

40

Kohler 62 431 03-S

SLEEVE, ANTI ABRASION

$3.49

$

Usually ships in 2-5 days

0

41

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

42

Kohler 25 152 08-S

MAGNET ASSEMBLY, TPS

$16.99

$

In Stock, only 2 left!

0

43

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

44

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

49

Kohler 25 153 12-S

O-RING, THROTTLE BODY

$13.99

$

Usually ships in 2-5 days

0

50

Kohler 25 018 05-S

RETAINER, WIRE HARNESS
(Superseded to 25 154 27-S)

$2.49

$

Usually ships in 2-5 days

0

51

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

52

Kohler 66 159 03-S

CABLE, IDLE ADJUSTMENT

$76.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 465 01-S

KIT, VAPORIZER FILTER REPL'MT LPG(A7-170

$49.99

$

Usually ships in 2-5 days

0
