PCT 6118K - Ferris ProCut 61" Front Mount Mower, Gear Drive, 18hp Kohler (SN: 0212 & Above) Brake Group Parts Diagram

ProCut 61" Front Mount Mower, Gear Drive, 18hp Kohler

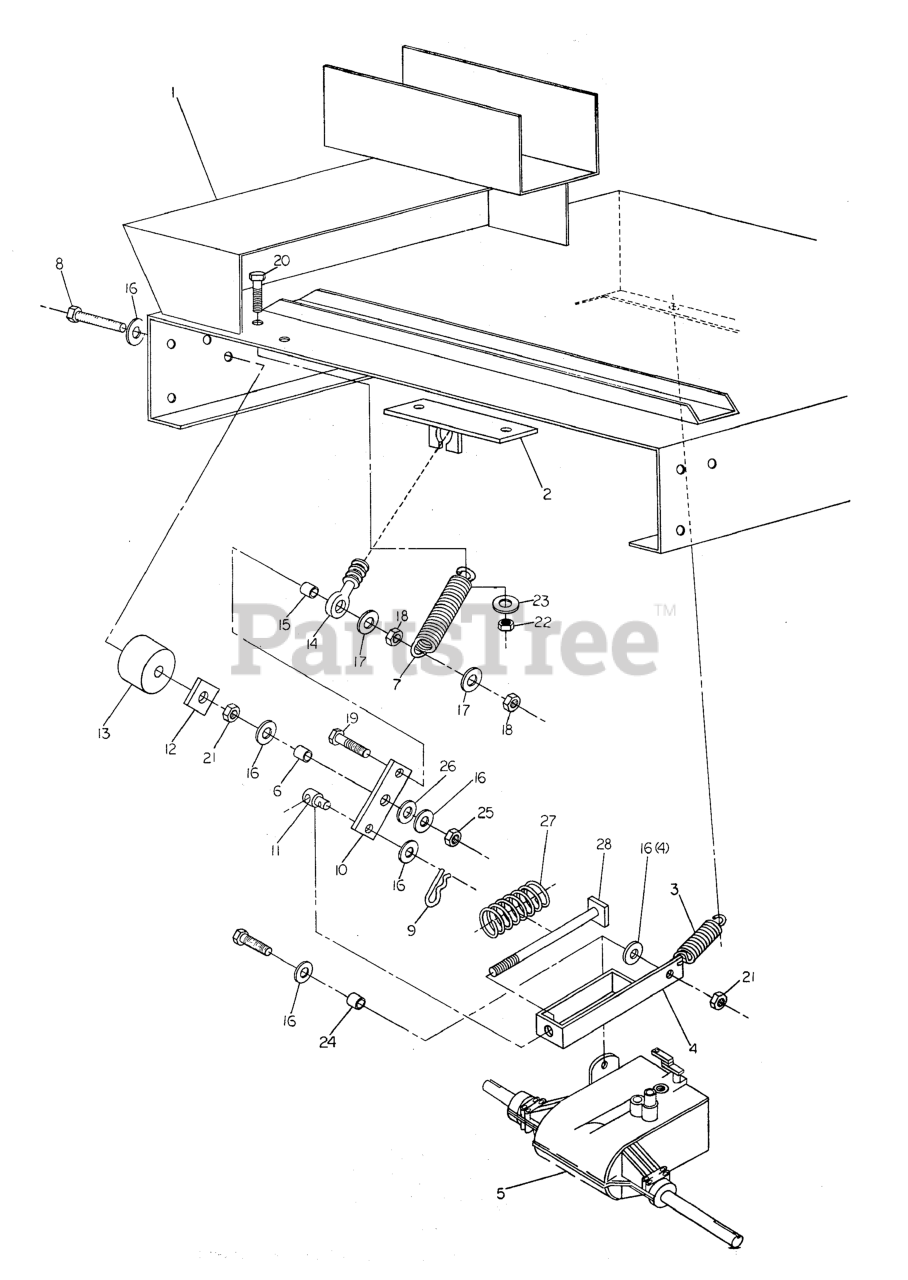

Brake Group Parts Diagram

  • Title

1

Ferris 30295

Engine Deck Weldment

$

$

Currently unavailable

2

Ferris 5041763

Brake Cable Mount Weldment

$

$

Currently unavailable

3

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

4

Ferris 5041758

Brake Weldment

$

$

Currently unavailable

5

Ferris 5020794

Transaxle

$

$

Currently unavailable

6

Ferris 5041625

SLEEVE

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

8

3/8-16 x 3-1/2 GD 5 Tap Bolt

Note: (Obtain Locally)

$

$

Not available

9

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5041759

Brake Lever

$

$

Currently unavailable

11

Ferris 5041751

Brake Linkage Adjuster

$

$

Currently unavailable

12

Ferris 5041760

Brake Mount

$

$

Currently unavailable

13

Ferris 5040946

Nylon Roller

$

$

Currently unavailable

14

Ferris 5020813

Clutch Cable

$154.99

$

Usually ships in 2-12 days

0

15

Ferris 5041483

Cable Spacer
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

16

3/8 Flat Washer SAE

Note: (Obtain Locally)

$

$

Not available

17

1/4 Flat Washer

Note: (Obtain Locally)

$

$

Not available

18

1/4-20 Lock Nut

Note: (Obtain Locally)

$

$

Not available

19

1/4-20 x 1-1/2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

20

5/16-18 x 1-1/4 GD 5 Tap Bolt

Note: (Obtain Locally)

$

$

Not available

21

3/8-16 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

22

5/16-18 Lock Nut

Note: (Obtain Locally)

$

$

Not available

23

5/16 Flat Washer

Note: (Obtain Locally)

$

$

Not available

24

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

25

3/8-16 Top Lock Nut

Note: (Obtain Locally)

$

$

Not available

26

1/2 Flat Washer SAE

Note: (Obtain Locally)

$

$

Not available

27

Ferris 5020915

SPRING, Compression

$

$

Currently unavailable

28

Ferris 5041765

Brake Linkage Adjustment Rod

$

$

Currently unavailable
