PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0211 & Below) Main Frame Group Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

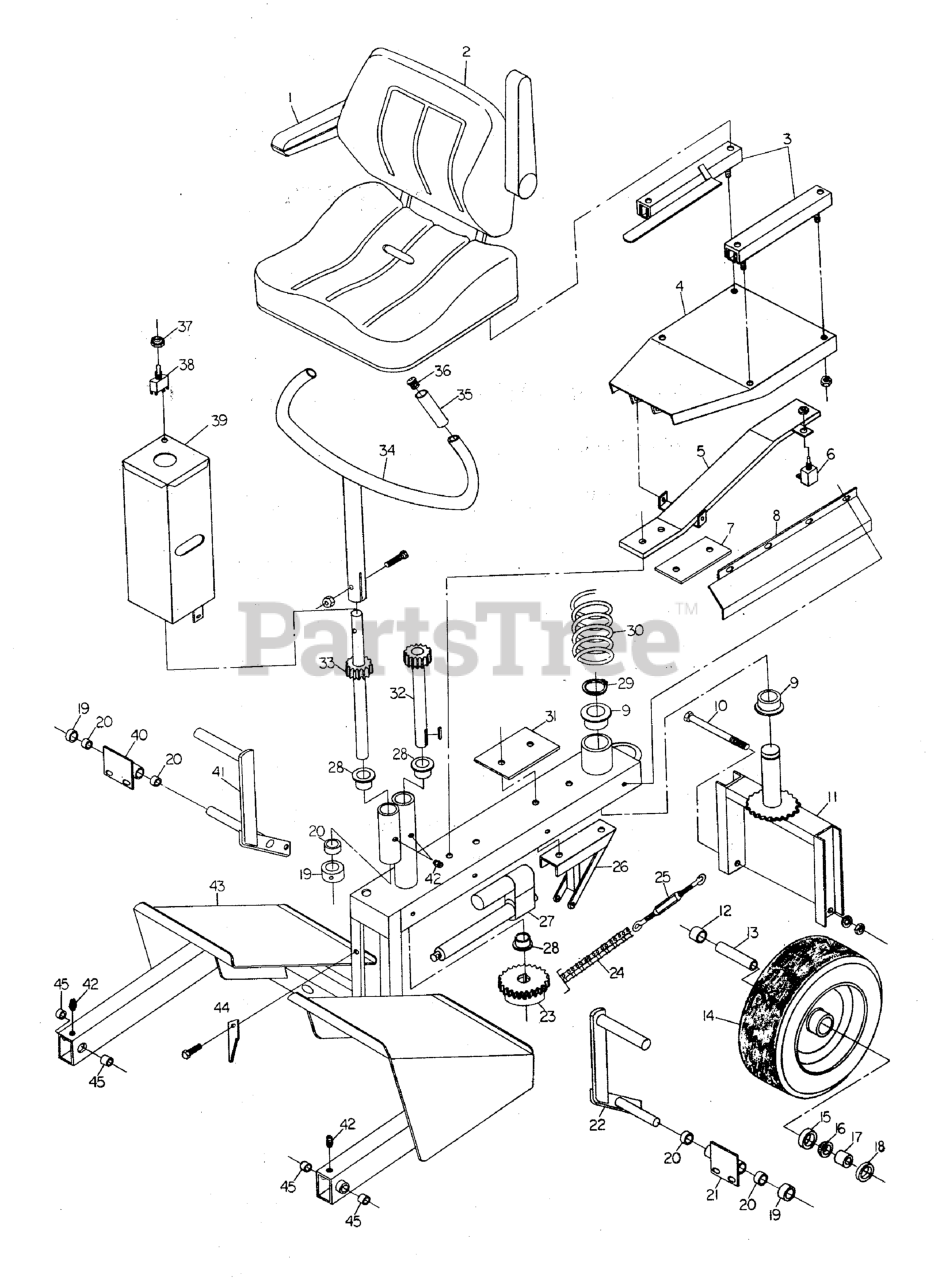

Main Frame Group Parts Diagram

  • Title

1

Ferris 5020784X2

Arm Rest (Left/Right Interchangeable)

$

$

Currently unavailable

2

Ferris 5020784X1

Seat Assembly

$

$

Currently unavailable

3

Ferris 5020784X3

SEAT ADJUSTER RAILS (Set)

$

$

Currently unavailable

4

Ferris 5041513

Seat Mounting Plate Weldment

$

$

Currently unavailable

5

Ferris 5041518B

Seat Spring Weldment

$

$

Currently unavailable

6

Ferris 5020882

Seat Switch

$

$

Currently unavailable

7

Ferris 5041522B

SUPPORT, Seat Plate

$25.99

$

Usually ships in 2-12 days

0

8

Ferris 5041523

Chain Guard Left

$

$

Currently unavailable

8

Ferris 5041524

Chain Guard Right

Note: (Not Shown)

$

$

Currently unavailable

9

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

10

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5041525

Steering Wheel Mount Weldment

$

$

Currently unavailable

12

Ferris 5041530

SPACER, 1.00 x 1.25 x 1.53

$

$

Currently unavailable

13

Ferris 5041475

Steering Wheel Sleeve

$40.99

$

Usually ships in 2-12 days

0

14

Ferris 5020786

Steering Tire Assembly

$

$

Currently unavailable

14

Ferris 20787

Tire Only

$

$

Currently unavailable

14

Ferris 20788

Rim Only

$

$

Currently unavailable

15

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

16

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

17

Ferris 5041531

Steering Tire Spacer

$

$

Currently unavailable

18

Ferris 5020885

GREASE SEAL
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

19

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

20

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5041532

Clutch Pedal Bracket Weldment

$

$

Currently unavailable

22

Ferris 5041535

Clutch Pedal Weldment

$

$

Currently unavailable

23

Ferris 5020821

40B 24 x 3/4 Sprocket

$

$

Currently unavailable

24

Ferris 5010673X99

CHAIN, #40 Roller, 99 Links

$

$

Currently unavailable

25

Ferris 5020803

Turnbuckle

$

$

Currently unavailable

26

Ferris 5041538

Actuator Mount Weldment

$

$

Currently unavailable

27

Ferris 5020844

Electric Actuator

$980.99

$

Usually ships in 2-12 days

0

28

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

29

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5020881

Compression Seat Spring

$

$

Currently unavailable

31

Ferris 5041541

Actuator Mount Support
(Superseded to 5041541FS)

$13.99

$

Usually ships in 2-12 days

0

32

Ferris 5041542B

Steering Shaft Weldment

$

$

Currently unavailable

33

Ferris 5041544B

Steering Handle Shaft Weldment

$

$

Currently unavailable

34

Ferris 5041546B

Steering Handle Weldment

$

$

Currently unavailable

35

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

36

Ferris 5020809

End Plug

$

$

Currently unavailable

37

Ferris 5020831

Toggle Boot

$24.99

$

Usually ships in 2-12 days

0

38

Ferris 5020830

Toggle Switch

$59.99

$

Usually ships in 2-12 days

0

39

Ferris 5041549

Steering Gear Guard

$

$

Currently unavailable

40

Ferris 5041554

Brake Pedal Bracket

$

$

Currently unavailable

41

Ferris 5041555B

Brake Pedal Weldment

$

$

Currently unavailable

42

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

43

Ferris 5030294B

Rider Frame Weldment

$

$

Currently unavailable

44

Ferris 5041556

Brake Lever

$

$

Currently unavailable

45

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0
