PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0211 & Below) Engine & PTO Group - Briggs Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

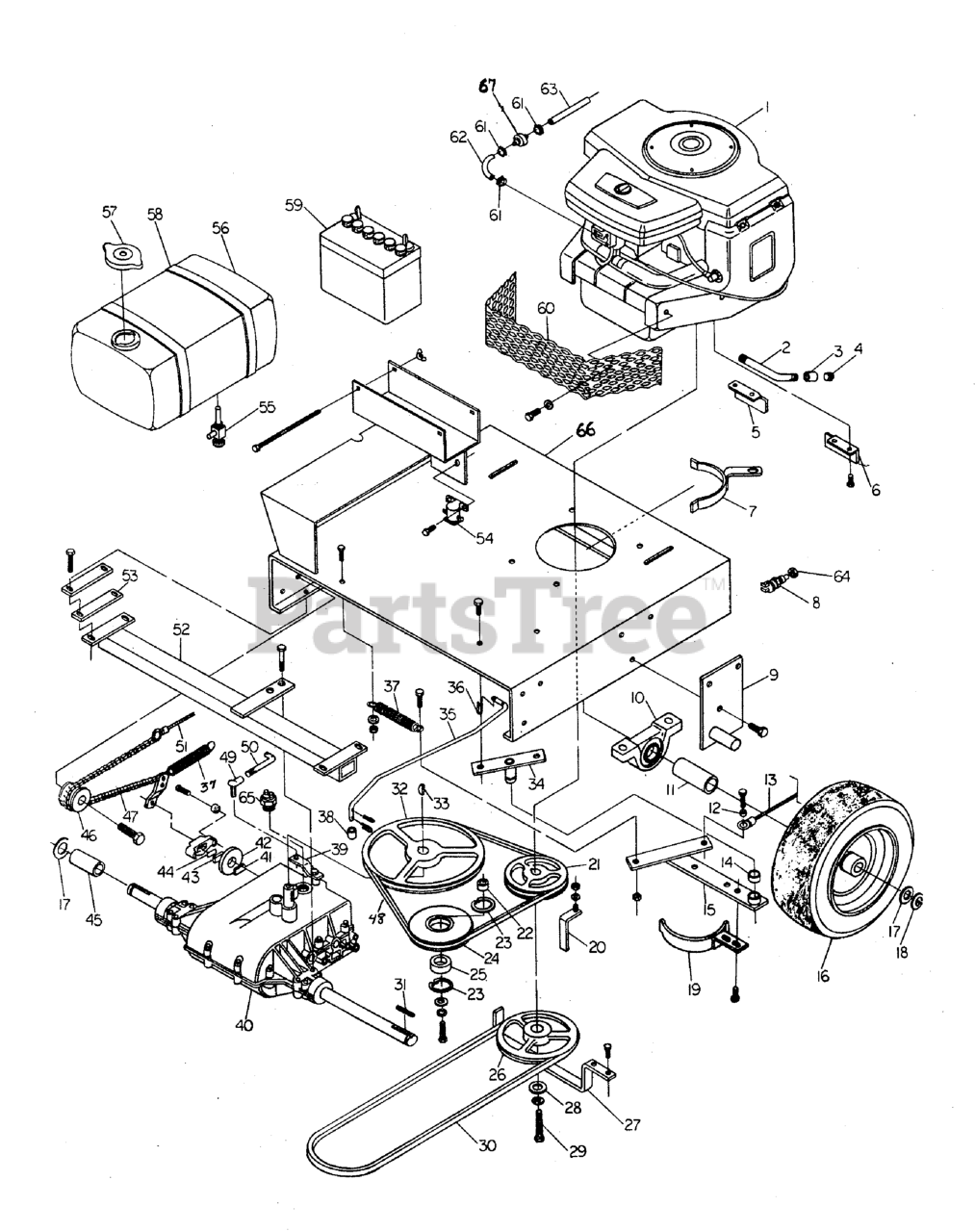

Engine & PTO Group - Briggs Parts Diagram

  • Title
1

ENGINE, 18HP Briggs & Stratton

$

$

Not available

2

Ferris 5020879

Oil Drain Extension

$

$

Currently unavailable

3

Ferris 5020862

Coupler

$

$

Currently unavailable

4

Ferris 5025049

Pipe Plug

$

$

Currently unavailable

5

Ferris 5041575

Heat Shield Right

$

$

Currently unavailable

6

Ferris 5041576

Heat Shield Left

$

$

Currently unavailable

7

Ferris 5041577B

ENGINE BELT GUIDE

$

$

Currently unavailable

8

Ferris 5020833

Safety Switch
(Superseded to 5020833FS)

$67.99

$

Usually ships in 2-12 days

0

9

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

$47.99

$

Usually ships in 2-12 days

0

9

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

Note: (Not Shown)

$51.99

$

Usually ships in 2-12 days

0

10

Ferris 5010090

Pillow Block Bearing

$

$

Currently unavailable

11

Ferris 5041583B

SPACER, .76 x 1.00 x 3.38

$

$

Currently unavailable

12

Ferris 5041483

Cable Spacer
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5020813

Clutch Cable

$154.99

$

Usually ships in 2-12 days

0

14

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

15

Ferris 5041585B

Idler Arm Weldment

$

$

Currently unavailable

16

Ferris 5020789

Drive Tire Assembly (Tire & Rim)

$

$

Currently unavailable

16

Ferris 5020790

Tire Only

$

$

Currently unavailable

16

Ferris 5020791

Rim Only

$

$

Currently unavailable

16

Ferris 5020792

DRIVE HUB
(Superseded to 5048417)

$146.99

$

Usually ships in 2-12 days

0

17

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5041588

Idler Pulley Belt Guide

$

$

Currently unavailable

20

Ferris 5041591

Belt Guide

$

$

Currently unavailable

21

Ferris 5020818

ENGINE PULLEY

$

$

Currently unavailable

22

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

In Stock, only 1 left!

0

24

Ferris 5041474

Idler Pulley Clutch

$

$

Currently unavailable

25

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

26

Ferris 5020817

ENGINE PULLEY

$80.99

$

Usually ships in 2-12 days

0

27

Ferris 5041593B

Belt Guide

$

$

Currently unavailable

28

Ferris 5041486

SPACER, .44 X .75 X .63

$

$

Currently unavailable

29

Ferris 5025016X12

BOLT, 7-16-20 x 1-1/2

$

$

Currently unavailable

30

Ferris 5020871

BELT, B Section

Note: (61" Deck)

$85.99

$

Usually ships in 2-12 days

0

30

Ferris 5020872

BELT, B Section

Note: (48" deck)

$

$

Currently unavailable

31

Ferris 5048409

KEY, 3/16" SQ. X 2-1/2
(Superseded to 5048409SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5020845

Transaxle Pulley

$

$

Currently unavailable

33

Ferris 5020051

KEY, #9 Woodruff

$

$

Currently unavailable

34

Ferris 5041596

Idler Pivot Weldment

$

$

Currently unavailable

35

Ferris 5041599

Linkage Arm

$

$

Currently unavailable

36

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

37

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

38

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

39

Ferris 5041601B

Shifting Lever

$

$

Currently unavailable

40

Ferris 5020794

Transaxle

$

$

Currently unavailable

41

Ferris 5020794X52

Brake Pad

$

$

Not available

42

Ferris 5020794X21

Brake Disc

$

$

Currently unavailable

43

Ferris 5020794X52

Brake Pad

$

$

Not available

44

Ferris 5020794X51

Brake Pad Plate

$

$

Currently unavailable

45

Ferris 5041584B

SPACER, .76 x 1.00 x 1.88

$

$

Currently unavailable

46

Ferris 5040963

Beveled Idler Block

$

$

Currently unavailable

47

Ferris 5010670X43

CHAIN, #41 Roller, 43 Links

$

$

Currently unavailable

48

Ferris 5020800

Belt A Section

$25.99

$

Usually ships in 2-12 days

0

49

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

50

Ferris 5041602

Shifting Linkage

$

$

Currently unavailable

51

Ferris 5020812

Brake Cable

$131.99

$

Usually ships in 2-12 days

0

52

Ferris 5041603B

Transaxle Support Weldment

$

$

Currently unavailable

53

Ferris 5041604

Transaxle Support Spacer

$

$

Currently unavailable

54

Ferris 5020801

SOLENOID, Starter
(Superseded to 5020801SM)

$133.99

$

Usually ships in 2-12 days

0

55

Ferris 5020840

Needle Valve

$

$

Currently unavailable

56

Ferris 5020796

Fuel Tank, 4 Gallon

$

$

Currently unavailable

57

Ferris 5020797

Gas Cap
(Superseded to 5020797FS)

$60.99

$

In Stock, only 1 left!

0

58

Ferris 5041606B

Gas Tank Strap

$19.99

$

Usually ships in 2-12 days

0

59

BATTERY, 11U1L, 350 CCA

$

$

Not available

60

Ferris 5041607B

Muffler Guard

$

$

Currently unavailable

61

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

62

Ferris 5020887

Fuel Hose Short

$

$

Currently unavailable

63

Ferris 5020888

Fuel Hose Long

$

$

Currently unavailable

64

Ferris 5020834

Brass Nut

$

$

Currently unavailable

65

Ferris 5020832

Neutral Safety Switch

$

$

Currently unavailable

66

Ferris 5030295B

Engine Deck Weldment

$

$

Currently unavailable

67

Ferris 5020886

Fuel Filter

$

$

Currently unavailable
