PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0211 & Below) 48" & 61" Mower Deck - Complete Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

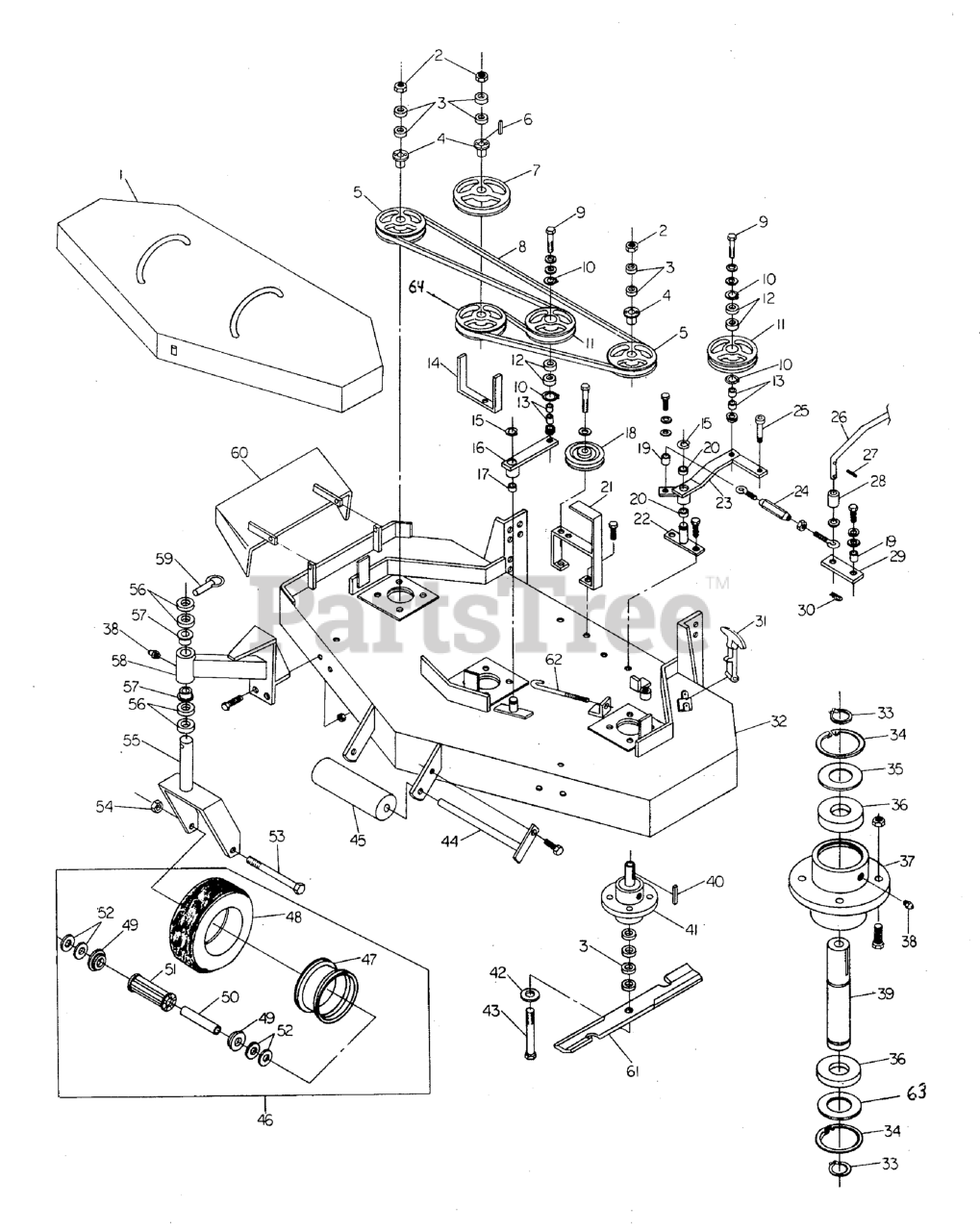

48" & 61" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5041613

61" DECK GUARD

$

$

Currently unavailable

1

Ferris 5041617

48" DECK GUARD

$

$

Currently unavailable

2

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

3

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

4

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

5

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

6

Ferris 5050407X3

KEY, 1/4 SQ. X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

7

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

8

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

8

Ferris 5020873

BELT, Blade Spindle

$87.99

$

Usually ships in 2-12 days

0

9

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

12

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

13

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

14

Ferris 5041620

Belt Guide 61" Deck

$

$

Currently unavailable

14

Ferris 5041621

Belt Guide 48" Deck

$

$

Currently unavailable

15

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5041622

IDLER ARM

$

$

Not available

17

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

18

Ferris 5020806

Idler Pulley

$

$

Currently unavailable

19

Ferris 5041625

SLEEVE

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5041626

Idler Pulley Weldment

$

$

Currently unavailable

22

Ferris 5041629B

IDLER MOUNT

$26.99

$

Usually ships in 2-12 days

0

23

Ferris 5041631

Idler Arm Weldment

$

$

Currently unavailable

24

Ferris 5020804

Turnbuckle
(Superseded to 5041852)

$40.99

$

Usually ships in 2-12 days

0

25

Ferris 5025219

SHOULDER BOLT, 3/8 x 1

$

$

Currently unavailable

26

Ferris 5041599B

Linkage Arm

$

$

Currently unavailable

27

Ferris 5025201X8

COTTER PIN, 3/32" x 1"

$

$

Currently unavailable

28

Ferris 5041661B

Caster Support

$

$

Currently unavailable

29

Ferris 5041636B

Blade Linkage Bracket

$

$

Currently unavailable

30

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

31

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

32

Ferris 5030297B

61" MOWER HOUSING

$

$

Currently unavailable

32

Ferris 5030298B

48" MOWER HOUSING

$

$

Currently unavailable

33

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

34

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

35

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

36

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

37

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

38

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

39

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

40

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

41

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

42

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

43

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

44

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 2 left!

0

45

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

46

Ferris 5020793

Caster Wheel Assembly

$

$

Currently unavailable

47

Ferris 5020889

Caster Wheel Rim Only

$

$

Currently unavailable

48

Ferris 5020890

Caster Wheel Tire Only

$

$

Currently unavailable

49

Ferris 5020892

Bearing Retainer

$

$

Currently unavailable

50

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

51

Ferris 5020891

Roller Bearing

$

$

Currently unavailable

52

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

53

Ferris 5025017X40

BOLT, 1/2-13 x 5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

54

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

55

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

56

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

57

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

58

Ferris 5041661B

Caster Support

$

$

Currently unavailable

59

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

60

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

61

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, only 3 left!

0

61

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, Qty 20+

0

62

Ferris 5041671

J-BOLT

$9.49

$

Usually ships in 2-12 days

0

63

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

64

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0
