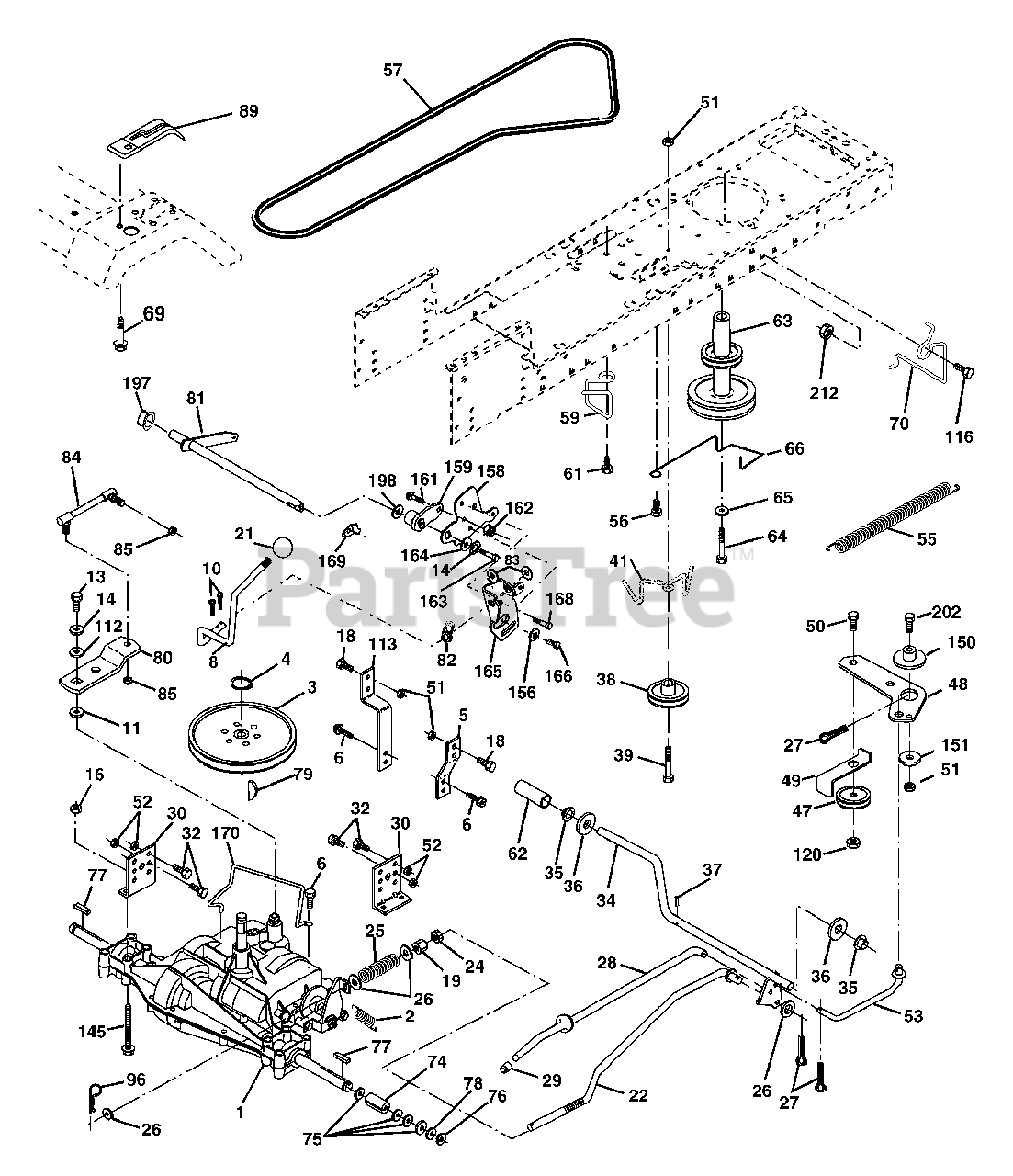

PC 1742ST A - Poulan Lawn Tractor (2003) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle Peerless (206-545C)

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Electrolux/AYP 146682

Spring Return Brake T/a Zinc
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 123666X

Pulley Transaxle 18" tires
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000028

Ring Retainer # 5100-62
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 121520X

Strap Torque 30 Degrees
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 165619

Rod Shift Fender Adjust Lt

$16.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

Pin Cotter 1/8 x 1 Cad
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

Washer Plate Shf 388 Sq Hole
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74550412

Bolt 1/4-28 Unf Gr 8 W/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

Nut Lock Hex w/ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

Bolt, Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106933X

Knob
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 130804

Rod Brake Blk Zinc 26 840
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 73350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4 Cad
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 175765

Rod Brake Parking LT/YT
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap Brake Parking
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Murray 174973

Bracket Mtg Transaxle

$

$

Not available

32

Electrolux/AYP 74760512

Bolt Hex Hd 5/16-18unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 175578

Shaft Asm Pedal Foot
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

Washer 21/32 x 1 x 16 Ga
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin Roll 3/16 x 1"

$

$

Not available

38

Electrolux/AYP 179114

Pulley Composite Flat
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74760648

Bolt Fin Hex 3/8-16 unc x 3
(Superseded to 583614301)

$

$

Not available

41

Electrolux/AYP 175556

Keeper Belt Flat Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley Idler V Groove Plastic

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Asm
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer Belt Style Spring
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crownlock 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring Return Clutch 6 75
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 130801

V-Belt Ground Drive 95 25
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

59

Electrolux/AYP 169691

Keeper Belt Span Ctr
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 8883R

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 175410

Engine Pulley
(Superseded to 532175410)

$87.99

$

In Stock, only 1 left!

0

64

Electrolux/AYP 173937

Bolt 7/16-20 x 4 x Gr.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine Foolproof
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

Screw Hex wsh Hi-Lo 1/4 x 1/2 Unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 134683

Guide Belt Mower Drive RH
(Superseded to 532134683)

$

$

Not available

74

Electrolux/AYP 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1 1/4 x 16 Ga
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-ring #5133-75
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key Square 2 0 x 1845/ 1865
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

79

Murray 2228M

Key Woodruff #9 3/16 x 3/4

$

$

Not available

80

Electrolux/AYP 131486

Arm Shift
(Superseded to 532131486)

$7.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 165594

Shaft Asm Cross Tapered PMST/20
(Superseded to 532165594)

$37.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 123782X

Spring Torsion T/a
(Superseded to 532123782)

$

$

Not available

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 166228

Link Transaxle PMST/18" Zinc
(Superseded to 597068801)

$

$

Not available

85

Electrolux/AYP 150360

Nut Lock Center 1/4 - 28 FNTHD
(Superseded to 532150360)

$

$

Not available

89

Electrolux/AYP 169372X428

Console Shift STLT

$3.49

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 127285X

Strap Torque LT
(Superseded to 532127285)

$

$

Not available

116

Murray 72140608

Bolt Rdhd Sq Neck 3/8-16 x 1

$

$

Not available

120

Murray 73900600

Nut Lock Flg. 3/8-16 Unc

$

$

Not available

145

Electrolux/AYP 74490540

Bolt Hex FLGHD 5/16-18 Gr. 5
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175456

Spacer Retainer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16ID x 1.125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 183900

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

Washer 5/8 x .281 x 10 Ga
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 178394

Keeper Belt Transaxle Gear
(Superseded to 532178394)

$9.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 169613

Nyliner Snap-In
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyliner
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 72110614

Bolt Rd Hd 3/8-16 Unc x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

212

Murray 145212

Nut Hex flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
