PBP 3000 (UT-08033-R) - Homelite Blower Carburetor And Fuel Tank Parts Diagram

Blower

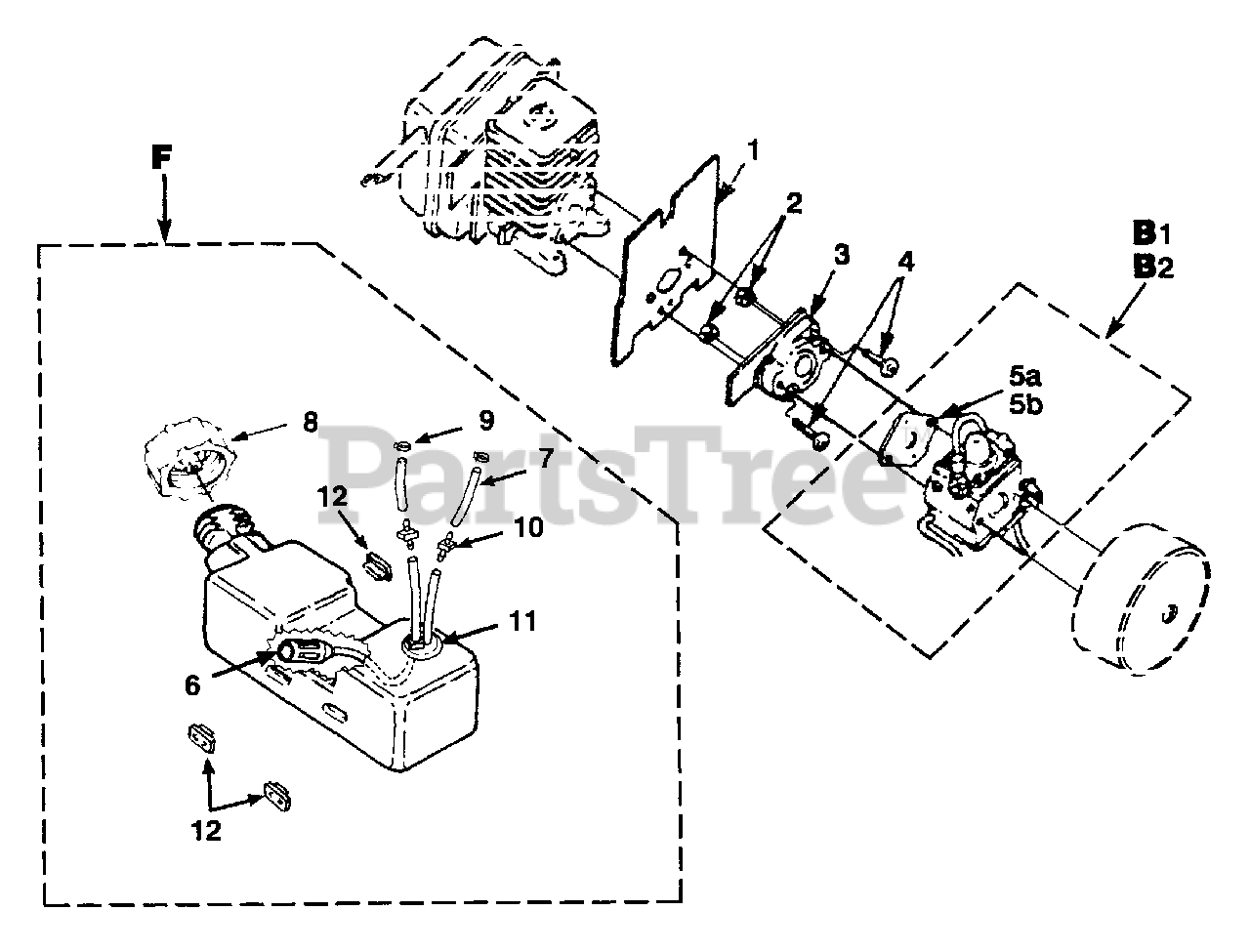

Carburetor And Fuel Tank Parts Diagram

  • Title

1

Homelite 08840

Heat Dam Gasket

$

$

Not available

2

Homelite 81208

Hex Nut (1/4-20)

$

$

Not available

3

Homelite 98768

Heat Dam
(Superseded to 98768A)

$

$

Not available

4

Homelite 880821

Screw, Machine (10-24 x 1 1/8")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

B1

Homelite A06805A

Carburetor Kit
(Superseded to UP00651)

Note: PHB Models

$

$

Not available

5A

Homelite 987661

Carburetor Gasket

$

$

Not available

B2

Homelite A07288

Carburetor Kit
(Superseded to UP00652)

Note: PBP Models

$

$

Not available

5B

Homelite 98766A

Carburetor Gasket
(Superseded to 900994004)

$

$

Not available

F

Homelite A04447C

FUEL TANK
(Superseded to UP00136)

$

$

Not available

6

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

7

Homelite 0745424

TUBING-Rubber
(Superseded to UP06561)

$

$

Not available

8

Homelite A00982B

FUEL CAP
(Superseded to UP04111)

$

$

Not available

9

Homelite 93426

CLAMP

$

$

Not available

10

Homelite 02067

FITTING - Inlet

$

$

Not available

11

Homelite 07469

GROMMET W/Fuel Line

$

$

Not available

12

Homelite 98792

BUMPER-Rubber

$1.49

$

Usually ships in 3-7 days
