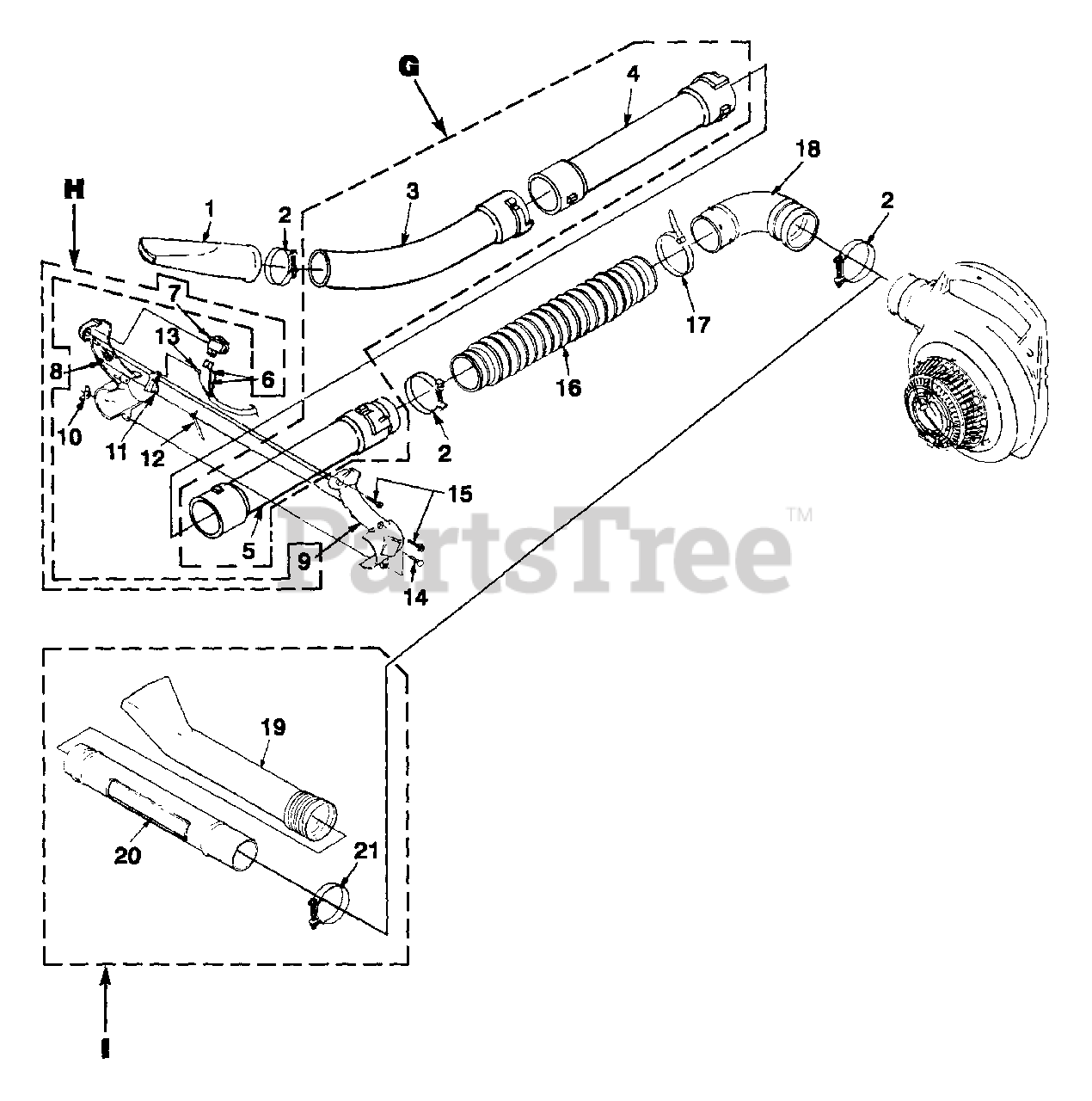

PBP 3000 (UT-08033-C) - Homelite Blower Tube Kit & Handle Parts Diagram

Blower

Tube Kit & Handle Parts Diagram

  • Title
1

Homelite 96329B

Sweeper Nozzle
(Superseded to UP05582)

$

$

Not available

2

Homelite 00433B

Clamp
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

G

Homelite A03036A

Blower Tube Kit
(Superseded to UP05582)

$

$

Not available

3

Homelite 02899

Elbow
(Superseded to UP05582A)

$

$

Not available

4

Homelite 028982

Straight Tube
(Superseded to UP05582A)

$

$

Not available

5

Homelite 028981

Upper Tube
(Superseded to UP00874)

$

$

Not available

H

Homelite A00219

Handle & Switch Kit
(Superseded to UP03794)

$

$

Not available

6

Homelite A03924

Electrical Lead w/Terminal
(Superseded to UP06782)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 02497

Switch
(Superseded to 985703001)

$

$

Not available

8

Homelite 03922

Control Handle (Right)

$

$

Not available

9

Homelite 03923

Control Handle (Left)
(Superseded to 580568001)

$

$

Not available

10

Homelite 81281

Wing Nut (10-24)

$

$

Not available

11

Homelite 94452B

Trigger
(Superseded to 518091001)

$2.49

$

In Stock, only 4 left!

0

12

Homelite 95906A

Trigger Latch

$

$

Not available

13

Homelite 01775

Throttle Cable
(Superseded to PA00666)

$13.99

$

Usually ships in 3-7 days

0

14

Homelite 82375

Bolt-Rib Neck (Round Hd.) (10-24 x 7/8")

$

$

Not available

15

Homelite 82563

Screw-Thread Form. (10-24 x 3/4")

Note: Torque Specs. 20-30 In.Lbs, 2.3-3.4 Nm

$1.99

$

In Stock, Qty 6

0

16

Homelite 01772

Bellows-Plastic

$

$

Not available

17

Homelite JA375487

Cable Tie
(Superseded to 900972001)

$

$

Not available

18

Homelite 01771A

Elbow-Curved
(Superseded to 580565001)

$3.99

$

In Stock, only 1 left!

0

I

Homelite A04986

Blower Tube Kit (PHB's)

$

$

Currently unavailable

19

Homelite 00373A

Sweeper Nozzle
(Superseded to 580556001)

$

$

Not available

20

Homelite A00309

Tube w/Decals
(Superseded to UP04365)

$

$

Not available

21

Homelite 00433B

Clamp w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0
