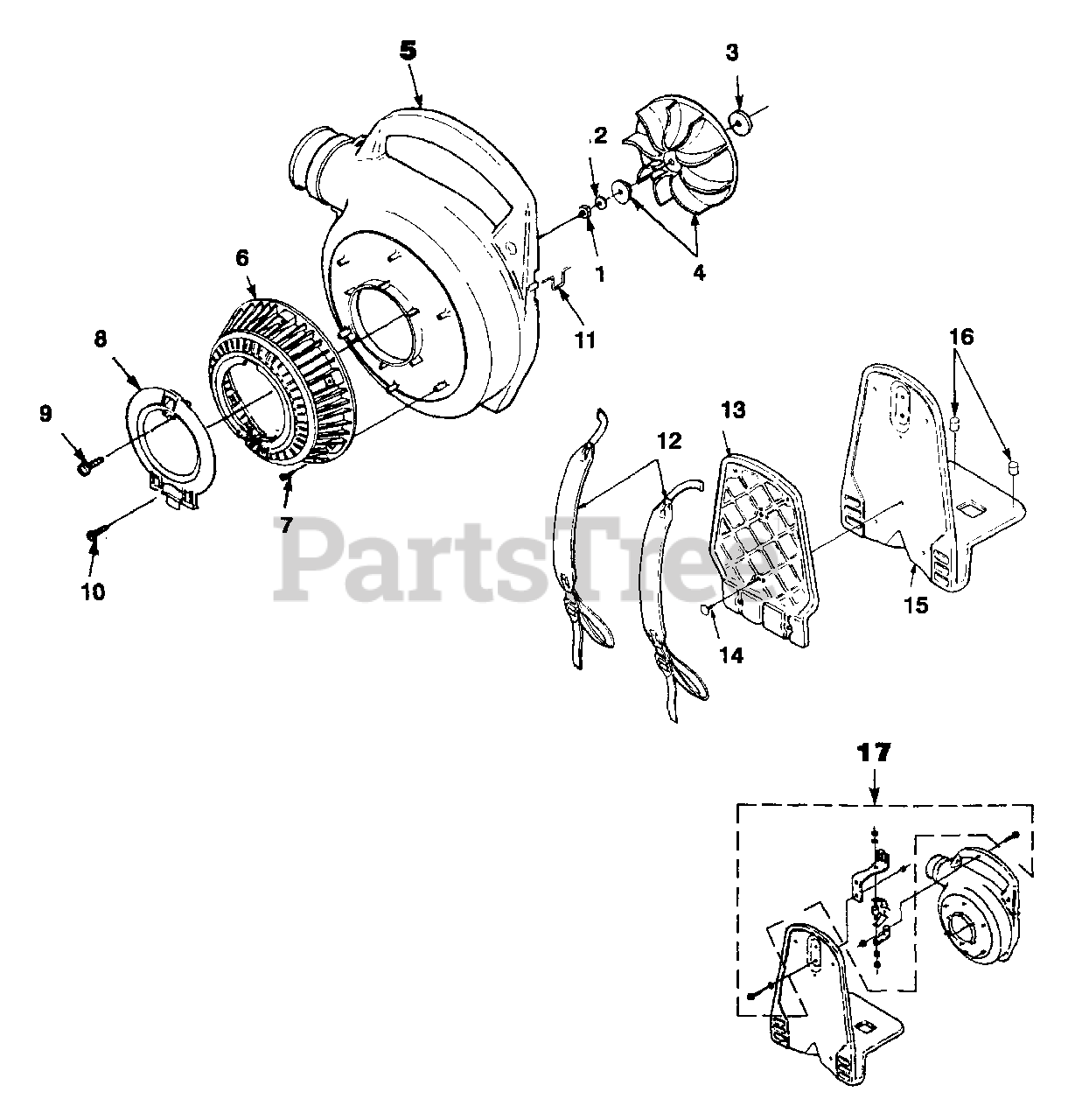

PBP 3000 (UT-08033-C) - Homelite Blower Fan, Outer Volute Housing, Grill, & Back Pack Parts Diagram

Blower

Fan, Outer Volute Housing, Grill, & Back Pack Parts Diagram

  • Title

1

Homelite 81124A

Hex Nut (3/8-24)

Note: Torque Specs. 130-150 In/Lbs, 14.7-16.9 Nm

$

$

Not available

2

Homelite 03163

Bellville Washer (3/8")

$

$

Not available

3

Homelite 03165

Flat Washer
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite A00503A

Blower Fan Kit
(Superseded to UP06826)

$

$

Not available

5

Homelite A04852A

Volute Housing Kit,Outer
(Superseded to 984918001)

$

$

Not available

6

Homelite A04853

Blower Vac Grille Kit
(Superseded to UP06720A)

$

$

Not available

7

Homelite 82536

Screw-Thread Form. (10-24 x 3/4")

Note: Torque Specs. 8-12 In/Lbs, 9-1.4 Nm

$

$

Not available

8

Homelite A04854

Access Cover
(Superseded to UP06613)

$

$

Not available

9

Homelite 82312

Screw-Thread Rolling (#10 x 5/8")

Note: Torque Specs. 10-20 In/Lbs, 1.1-2.3 Nm

$

$

Not available

10

Homelite 82376

Screw-Thread Form. (#8 x 1/2")
(Superseded to 660669001)

Note: Torque Specs. 8-20 In/Lbs, 9-1.4 Nm

$1.49

$

In Stock, only 3 left!

0

11

Homelite 00398

Wire Loop

$

$

Not available

12

Homelite 01776

Shoulder Harness

$

$

Not available

13

Homelite 02023

Foam Pad
(Superseded to PS02023)

$23.99

$

Usually ships in 3-7 days

0

14

Homelite 01783

Push Clip

$4.99

$

Usually ships in 3-7 days

0

15

Homelite 01763

Blower Frame
(Superseded to UP04405A)

$

$

Not available

16

Homelite 01770A

Vibration Isolator One

Note: Included In #26 Kit

$

$

Not available

17

Homelite A04855

Vibration Isolator Kit
(Superseded to UP06885A)

$

$

Not available
