PBC 4000 (UT-15069-D) - Homelite String Trimmer Starter, Tank, Engine Internals & Muffler Parts Diagram

String Trimmer

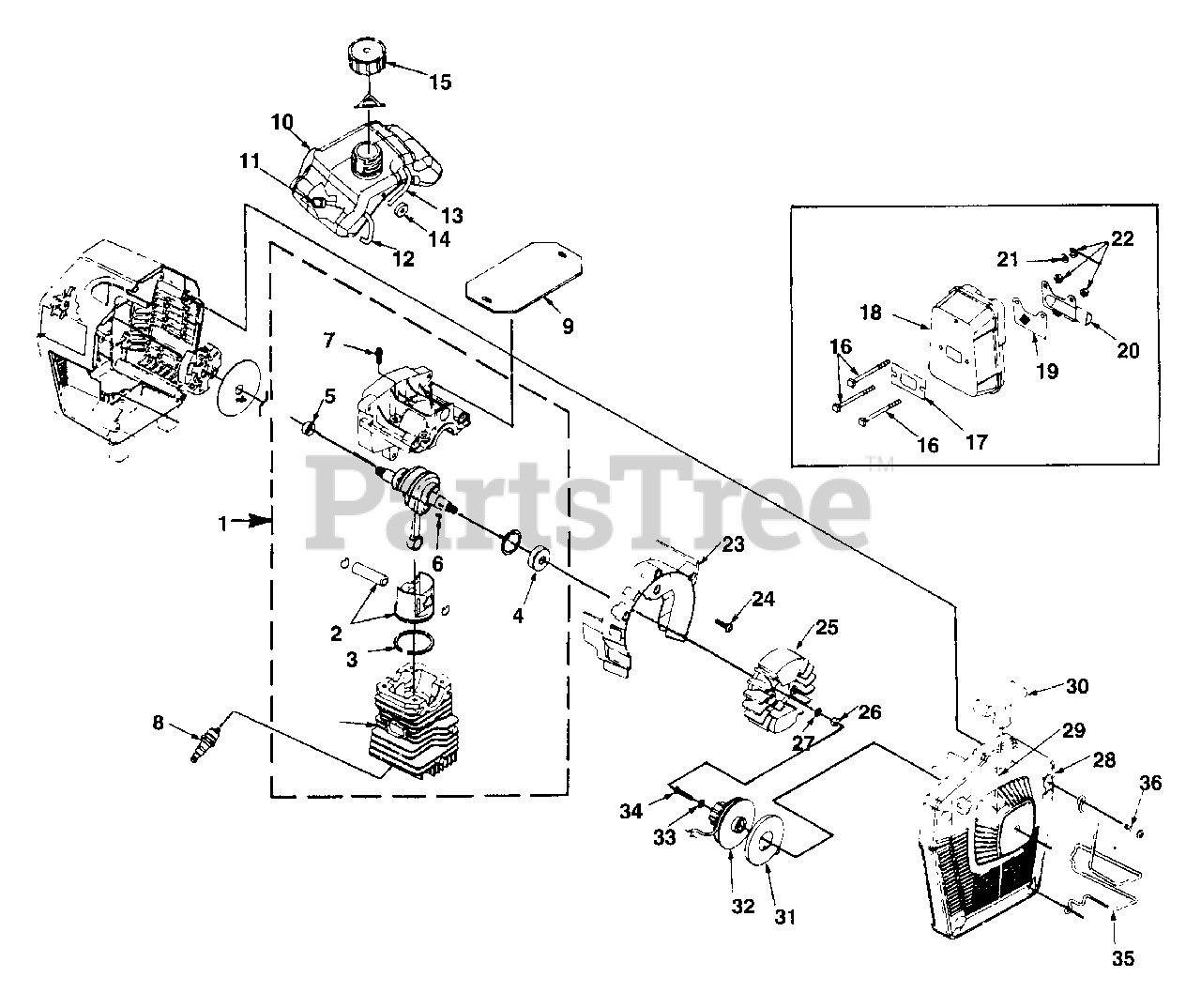

Starter, Tank, Engine Internals & Muffler Parts Diagram

  • Title
1

Homelite A027001

SHORT BLOCK

$

$

Currently unavailable

2

Homelite A02579C

PISTON & PIN

$

$

Not available

3

Homelite 01545A

RING-Piston
(Superseded to 01545B)

$

$

Not available

4

Homelite 98197

SEAL-Shaft
(Superseded to UP06470)

$

$

Not available

5

Homelite 93858

SEAL-Crankshaft
(Superseded to UP07439)

$

$

Not available

6

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

7

Homelite 80891

SCREW-Hex Hd (12-24 X 7/8")

$

$

Not available

8

Homelite 93561S

SPARK PLUG (CJ6Y)
(Superseded to D93561)

$

$

Not available

Homelite 98217S

SPARK PLUG (RCJ-6Y)
(Superseded to 870174001)

Note: (Int'l Only)

$4.99

$

In Stock, Qty 20+

0

9

Homelite 03977

SPACER-Fuel Tank

$

$

Not available

10

Homelite A03559

TANK-Fuel

$

$

Not available

11

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

12

Homelite 9477240

TUBING-Rubber (10")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

13

Homelite 0143937

TUBING-Rubber (9 1/4")

$

$

Currently unavailable

14

Homelite 02080

SPACER-Fuel Tank

$

$

Not available

15

Homelite A00982A

FUEL CAP ASSEMBLY

$

$

Currently unavailable

16

Homelite 02176

SCREW-Square Hex (10-23 X 2 1/2")

$

$

Not available

17

Homelite 01543B

GASKET-Muffler

$

$

Not available

18

Homelite A02083

MUFFLER

$

$

Currently unavailable

19

Homelite 01532

SCREEN-Spark Arrestor

$

$

Not available

20

Homelite 015711

COVER-Exhaust

$

$

Not available

21

Homelite 84003

WASHER-Flat (#10)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 81206

NUT-Locking Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

23

Homelite 02064

SCROLL-Fan

$

$

Not available

24

Homelite 82538

SCREW-Thread Form (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

25

Homelite A02098

ROTOR ASSEMBLY

$

$

Not available

26

Homelite 81257

NUT-Hex Jam (3/8-24)

$

$

Not available

27

Homelite 83102

WASHER-Lock (3/8")

$

$

Not available

28

Homelite A03782

STARTER-Complete
(Superseded to A03782A)

$

$

Currently unavailable

29

Homelite 9789902

ROPE-Starter
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

30

Homelite 02264

GRIP-Starter
(Superseded to UP03832)

$

$

Not available

31

Homelite A02104

SPRING & CONTAINER (L.H.)

$

$

Not available

32

Homelite 02103

PULLEY-Starter

$32.99

$

Usually ships in 3-7 days

0

33

Homelite 94062

WASHER (#10)

$

$

Not available

34

Homelite 82409

SCREW-Thread Form (#10)

$

$

Not available

35

Homelite 03654

GUARD-Wire

$

$

Not available

36

Homelite 82537

SCREW-Thread Form (10-24 X 7/8")

$1.99

$

Usually ships in 3-7 days

0
