PBC 3800 (UT-15077-B) - Homelite String Trimmer Boom & Head Assembly Parts Diagram

String Trimmer

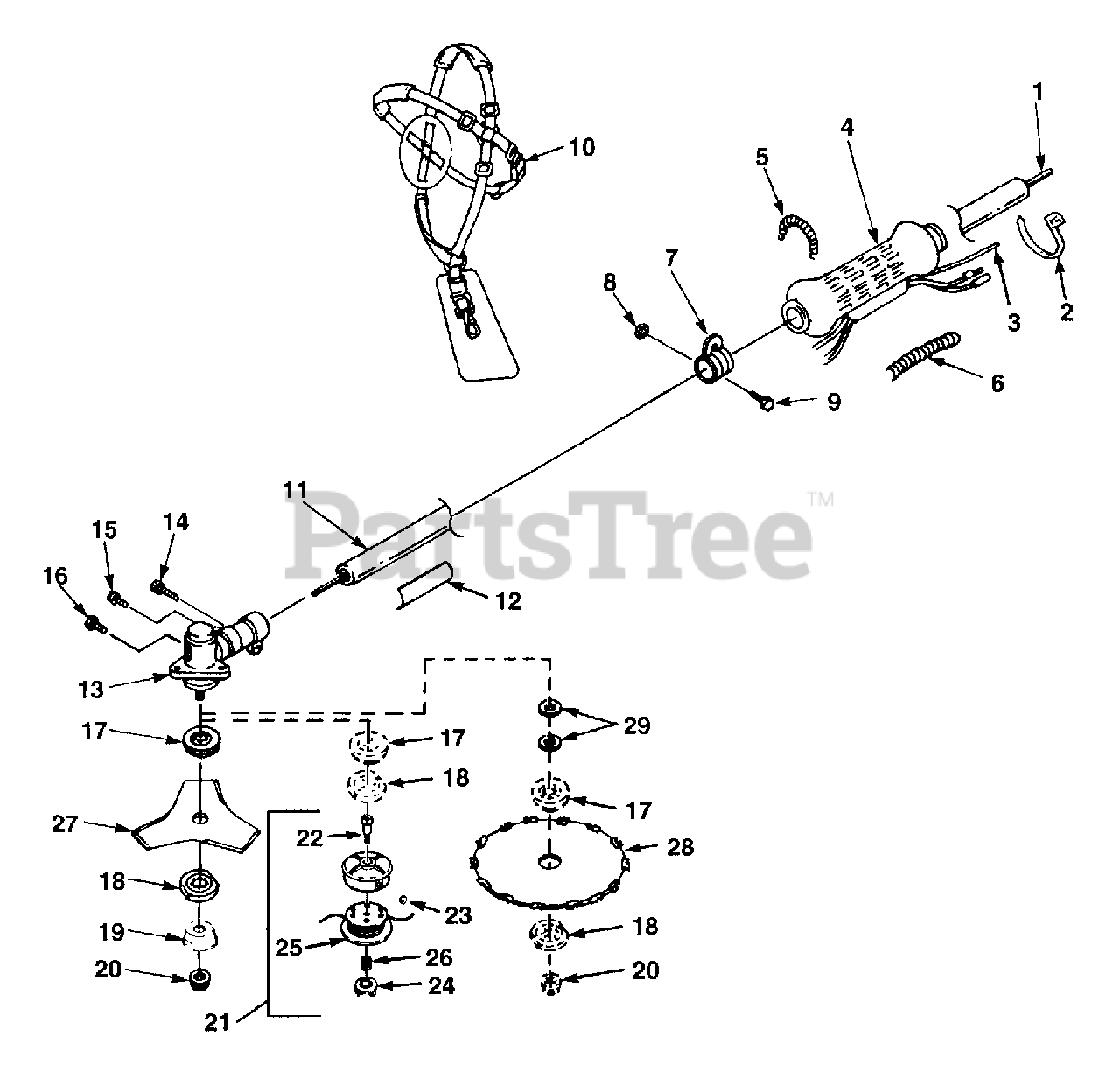

Boom & Head Assembly Parts Diagram

  • Title

1

Homelite 04499

DRIVE SHAFT

$

$

Not available

2

Homelite JA991366

TIE-Cable

$

$

Currently unavailable

3

Homelite 02077A

CABLE-Throttle
(Superseded to A06426)

$43.99

$

Usually ships in 3-7 days

0

4

Homelite 00597A

GRIP/HIP PAD

$

$

Currently unavailable

5

Homelite 00737

SPRING-Tension

$

$

Not available

6

Homelite A03926

SLEEVING

$

$

Currently unavailable

7

Homelite 04502

BAND-Hanger

$

$

Not available

8

Homelite 00677

NUT-Hex

$

$

Not available

9

Homelite 04025

BOLT & WASHER

$

$

Not available

10

Homelite 02836

HARNESS-Shoulder
(Superseded to UP08159)

$

$

Not available

11

Homelite A04500

HOUSING-Driveshaft

$

$

Not available

12

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

13

Homelite A04496

GEAR HEAD
(Superseded to UP06735)

$155.99

$

Usually ships in 3-7 days

0

14

Homelite 03993

SCREW-Cap

$

$

Not available

15

Homelite 03994

SCREW & WASHER-Mach (M6)

$

$

Not available

16

Homelite 04111

SCREW-Grease

$

$

Not available

17

Homelite 04579

WASHER-Blade

$

$

Not available

18

Homelite 03996

WASHER-Blade

$

$

Not available

19

Homelite 02258

NUT-Guard

$

$

Not available

20

Homelite 03997

NUT-Gear Head
(Superseded to UP07221)

$

$

Not available

21

Homelite A04019

STRINGHEAD-Complete

$

$

Not available

22

Homelite 04139

CONNECTOR-Drive

$

$

Not available

23

Homelite 04021

EYELET

$

$

Not available

24

Homelite 04123

KNOB (L.H.)

$

$

Not available

25

Homelite 04125

SPOOL w/Line

$

$

Not available

26

Homelite 04121

SPRING

$

$

Not available

27

Homelite 031641

BLADE-Tri-Arc (10")
(Superseded to 06896)

$

$

Not available

28

MACHETE BLADE KIT

Note: Not Used On This Model.

$

$

Not available

29

SPACER

Note: Not Used On This Model.

$

$

Not available
