PBC 3800 (UT-15077-A) - Homelite String Trimmer Zama - Carburetor Parts Diagram

String Trimmer

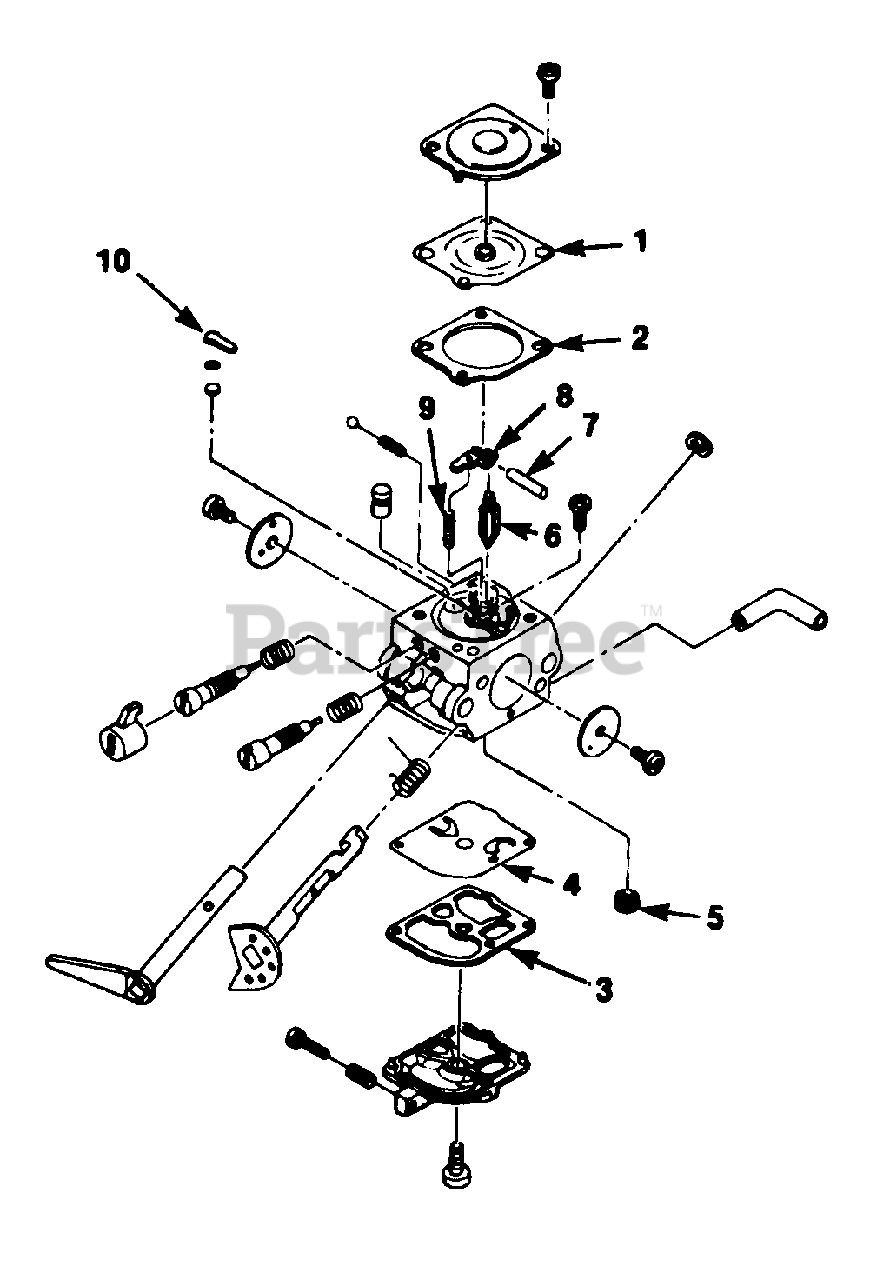

Zama - Carburetor Parts Diagram

  • Title

1

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

1

Homelite A-03904

Gasket/Diaphragm Kit

Note: Includes Ref. #1 - 4.

$

$

Not available

2

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

2

Homelite A-03904

Gasket/Diaphragm Kit

Note: Includes Ref. #1 - 4.

$

$

Not available

3

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

3

Homelite A-03904

Gasket/Diaphragm Kit

Note: Includes Ref. #1 - 4.

$

$

Not available

4

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

4

Homelite A-03904

Gasket/Diaphragm Kit

Note: Includes Ref. #1 - 4.

$

$

Not available

5

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

6

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

7

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

8

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

9

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available

10

Homelite 03172

Repair Kit

Note: Includes Ref. #1 - 10.

$

$

Not available
