PBC 3600-B (UT-15091-F) - Homelite String Trimmer Starter Parts Diagram

String Trimmer

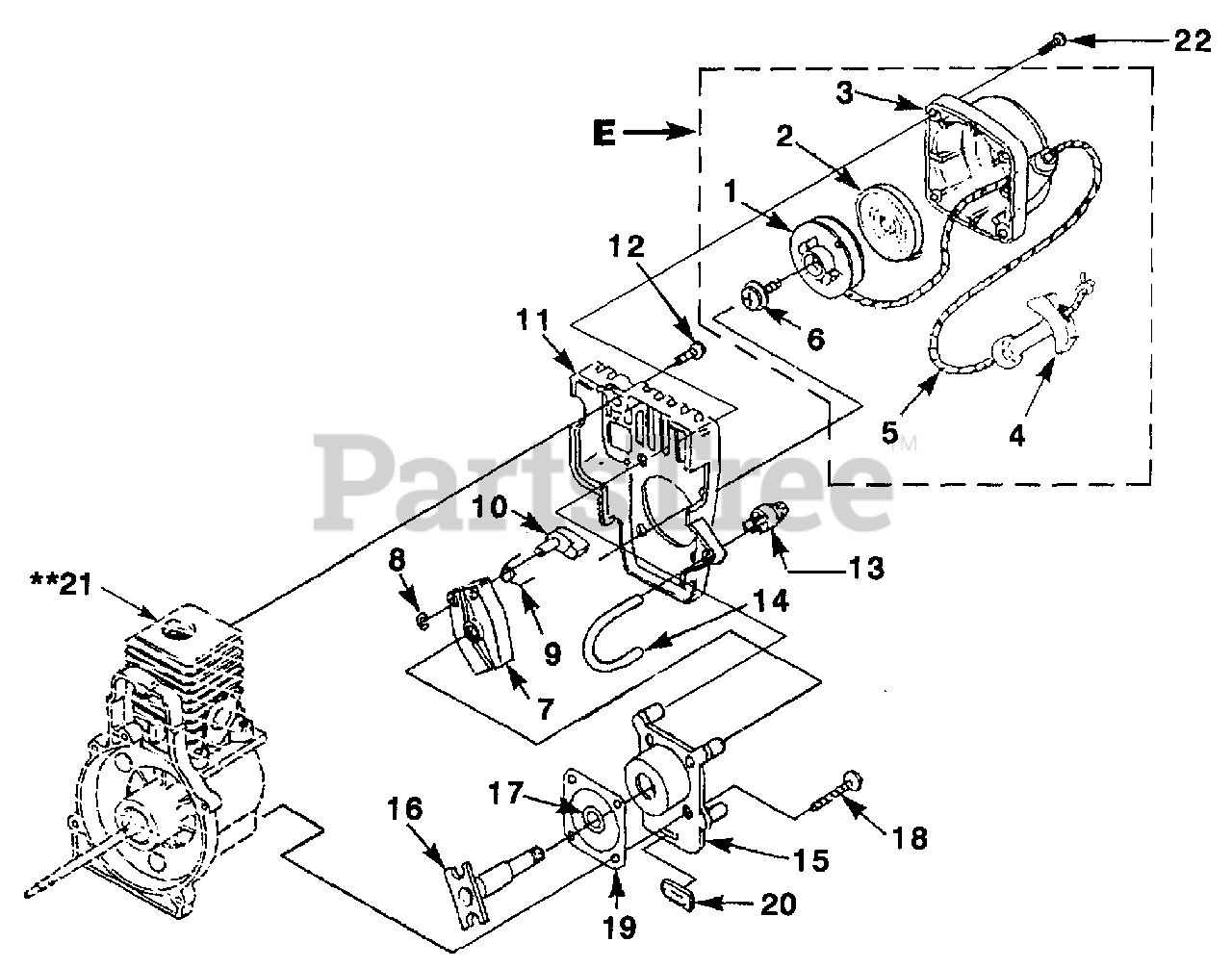

Starter Parts Diagram

  • Title

E

Homelite A04069

STARTER-Complete

$

$

Not available

1

Homelite 0406905

PULLEY-Starter
(Superseded to UP04880)

$96.99

$

Usually ships in 3-7 days

0

2

Homelite 0406906

SPRING-Recoil
(Superseded to UP04871)

$

$

Not available

3

Homelite 0406901

HOUSING-Starter

$

$

Not available

4

Homelite 0406902

GRIP-Starter

$

$

Not available

5

Homelite 0406903

ROPE-Starter

$

$

Not available

6

Homelite 0406904

SCREW-Set

$

$

Not available

7

Homelite A04018

CUP-Starter
(Superseded to UP04879)

$

$

Not available

8

Homelite 0401804

RETAINING RING
(Superseded to UP04879)

$

$

Not available

9

Homelite 0401803

SPRING-Starter
(Superseded to UP04879)

$

$

Not available

10

Homelite 0401802

PAWL-Starter
(Superseded to UP04879)

$

$

Not available

11

Homelite 04023

COWLING-Engine
(Superseded to UP05884)

$

$

Not available

12

Homelite 82541

SCREW-Thread Forming (#10 x 1/2")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

In Stock, only 3 left!

0

13

Homelite 01183

BULB-Air Purge
(Superseded to 300780002)

$

$

Not available

14

Homelite 0143932

RUBBER TUBING (8")
(Superseded to UP03825)

$

$

Not available

15

Homelite A040172

CRANKCASE COVER
(Superseded to UP04878)

$

$

Not available

16

Homelite 04016B

SHAFT-Starter

$

$

Not available

17

Homelite 04589

SPACER

$

$

Not available

18

Homelite 825551

SCREW-Thread Form. (10-24 x 3/4")
(Superseded to UP03899)

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm.

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 98767A

GASKET-Crankcase

$

$

Not available

20

Homelite 98792

BUMPER-Rubber

$

$

Not available

21

SHORT BLOCK

Note: (See "Engine Internal" illustration and parts list.)

$

$

Not available

22

Homelite 82538

SCREW-Taptite, T-25 Torx (10-24 x 3/4")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm.

$1.99

$

Usually ships in 3-7 days

0
