PBC 3600-B (UT-15091-F) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

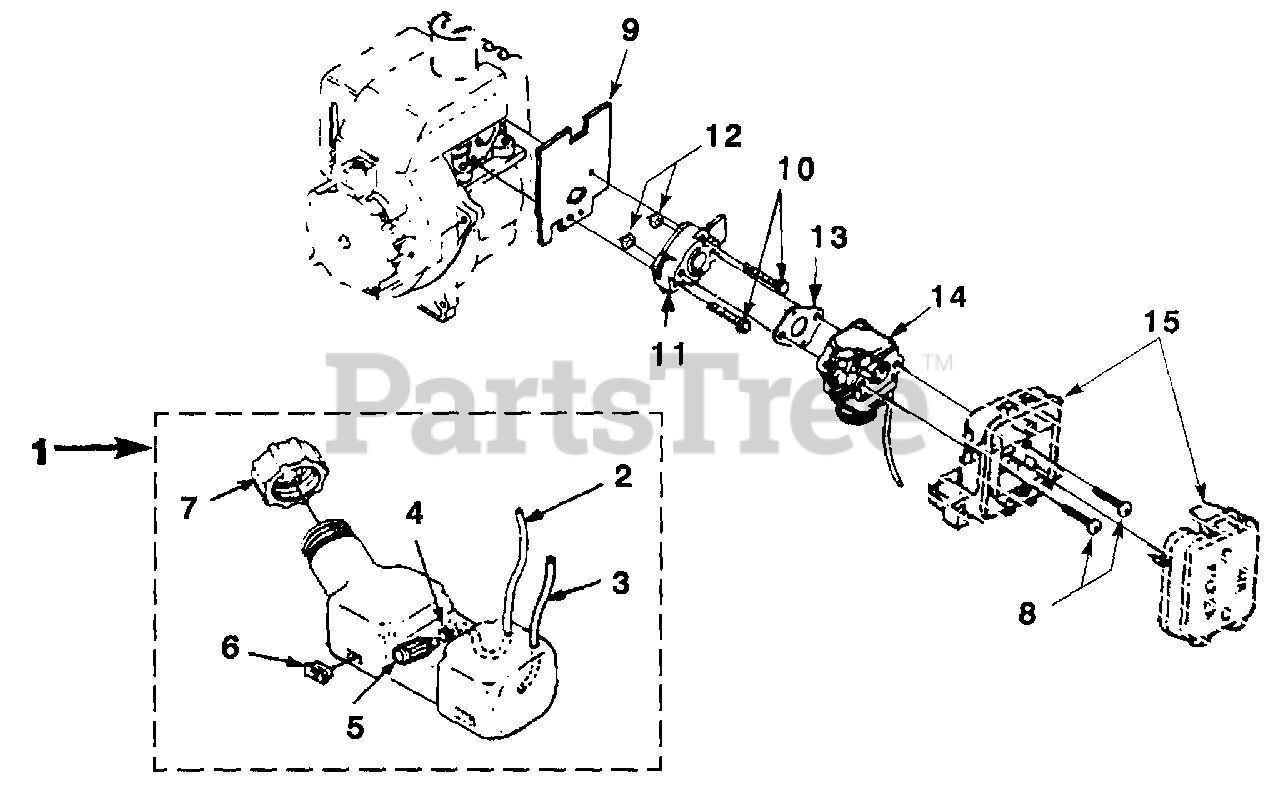

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite A04658

FUEL TANK
(Superseded to UP06596)

$

$

Currently unavailable

2

Homelite 0143917

TUBING-Rubber (4 1/4")
(Superseded to 0143918)

$

$

Not available

3

Homelite 9477230

TUBING-Rubber (7 1/2")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

4

Homelite 98268

CLAMP-Wire
(Superseded to 690765001)

$1.99

$

In Stock, Qty 7

0

5

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

6

Homelite 98792

BUMPER-Rubber

$1.49

$

Usually ships in 3-7 days

0

7

Homelite A00982B

CAP-Fuel Tank
(Superseded to UP04111)

$

$

Not available

8

Homelite 88060

SCREW-Sems Hex Hd. (10-24 x 2 1/2")
(Superseded to 660673001)

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 08840

GASKET-Heat Dam

Note: (See "Engine Internal" illustration and parts list.)

$

$

Not available

10

Homelite 880821

SCREW-Sems, Torx (10-24 x 1.12")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

11

Homelite 00864B

HEAT DAM
(Superseded to 00864C)

$26.99

$

Usually ships in 3-7 days

0

12

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

13

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

14

Homelite A02606

CARBURETOR (Zama)
(Superseded to UP00651)

$

$

Not available

Homelite A02607

CARBURETOR (Walbro)

$

$

Currently unavailable

15

Homelite A04707A

AIR FILTER

Note: (See "Muffler - Air Cleaner" illustration and parts list.)

$

$

Not available
