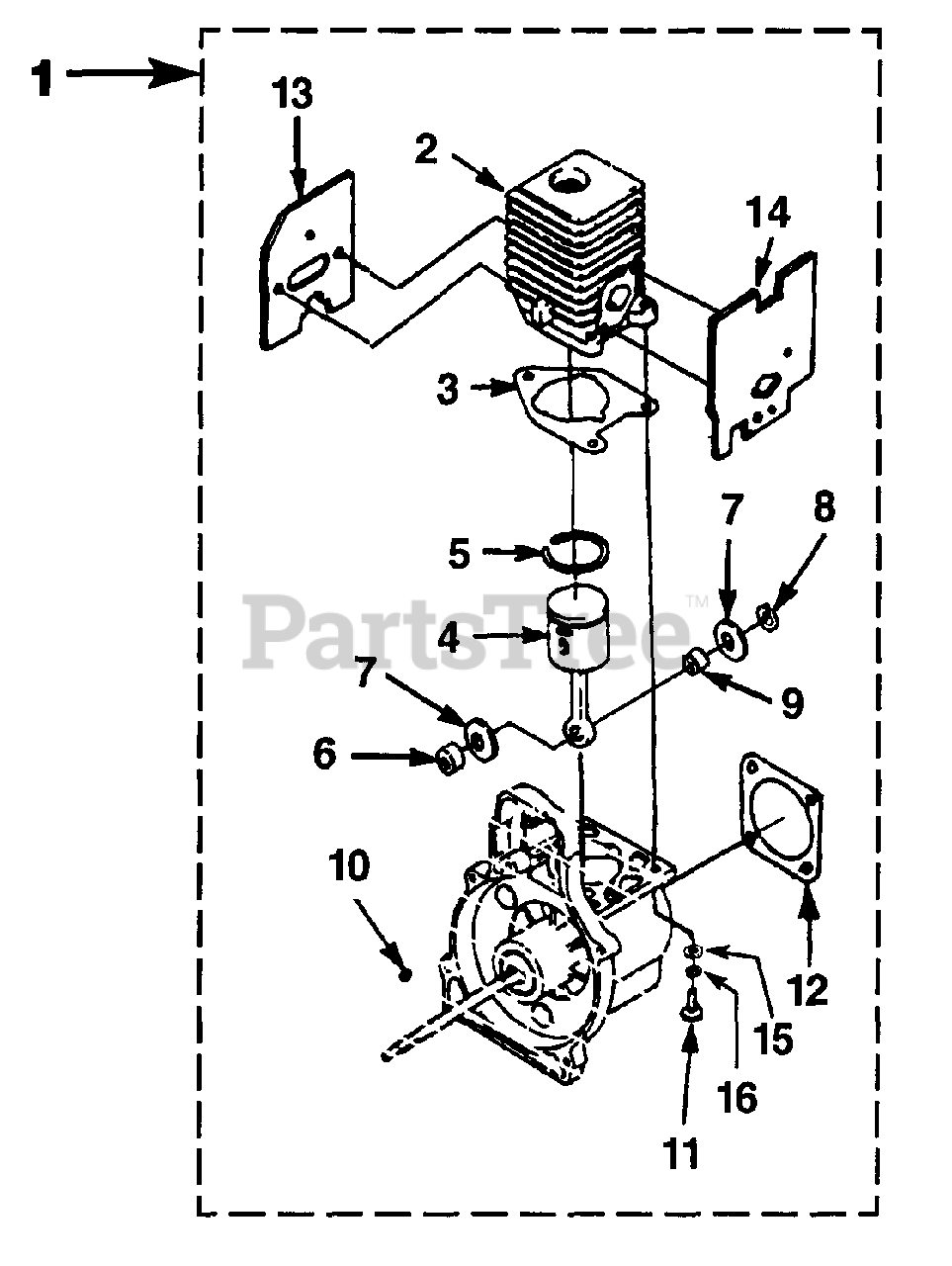

PBC 3600-B (UT-15091-A) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP00879

SHORT BLOCK

$

$

Not available

2

Homelite UP07146

CYLINDER & GASKET
(Superseded to UP07146A)

Note: See "Muffler - Air Cleaner" illustration and parts list.

$

$

Not available

3

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

4

Homelite A06291B

PISTON & ROD
(Superseded to UP03037)

$91.99

$

In Stock, only 1 left!

0

5

Homelite 04933

RING-Piston

$

$

Not available

6

Homelite 04860

SPACER-Bearing

$

$

Not available

7

Homelite 00118

WASHER-Thrust

$

$

Not available

8

Homelite 03796

RING-Retaining

$

$

Not available

9

Homelite 02461

BEARING-Needle

$

$

Not available

10

Homelite 69250

KEY-Woodruff

$

$

Not available

11

Homelite 825801

SCREW-Torx Pan Hd. (12-24 X 3/4")

Note: Torque Specs: 55-60 In/Lbs; 6.2-6.8 Nm

$

$

Not available

12

Homelite 98767A

GASKET-Crankcase

Note: Also included in Cylinder Kit

$

$

Not available

13

Homelite 08846

GASKET-Muffler

Note: Also included in Cylinder Kit

$

$

Not available

14

Homelite 08840

GASKET-Heat Dam

Note: Also included in Cylinder Kit

$

$

Not available

15

Homelite 84115

WASHER, Flat
(Superseded to 588512)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 83056

WASHER, Lock

$

$

Not available
