PBA 195H42 LT (960120079-00) - Poulan Pro Lawn Tractor (2007-10) Seat Parts Diagram

Lawn Tractor

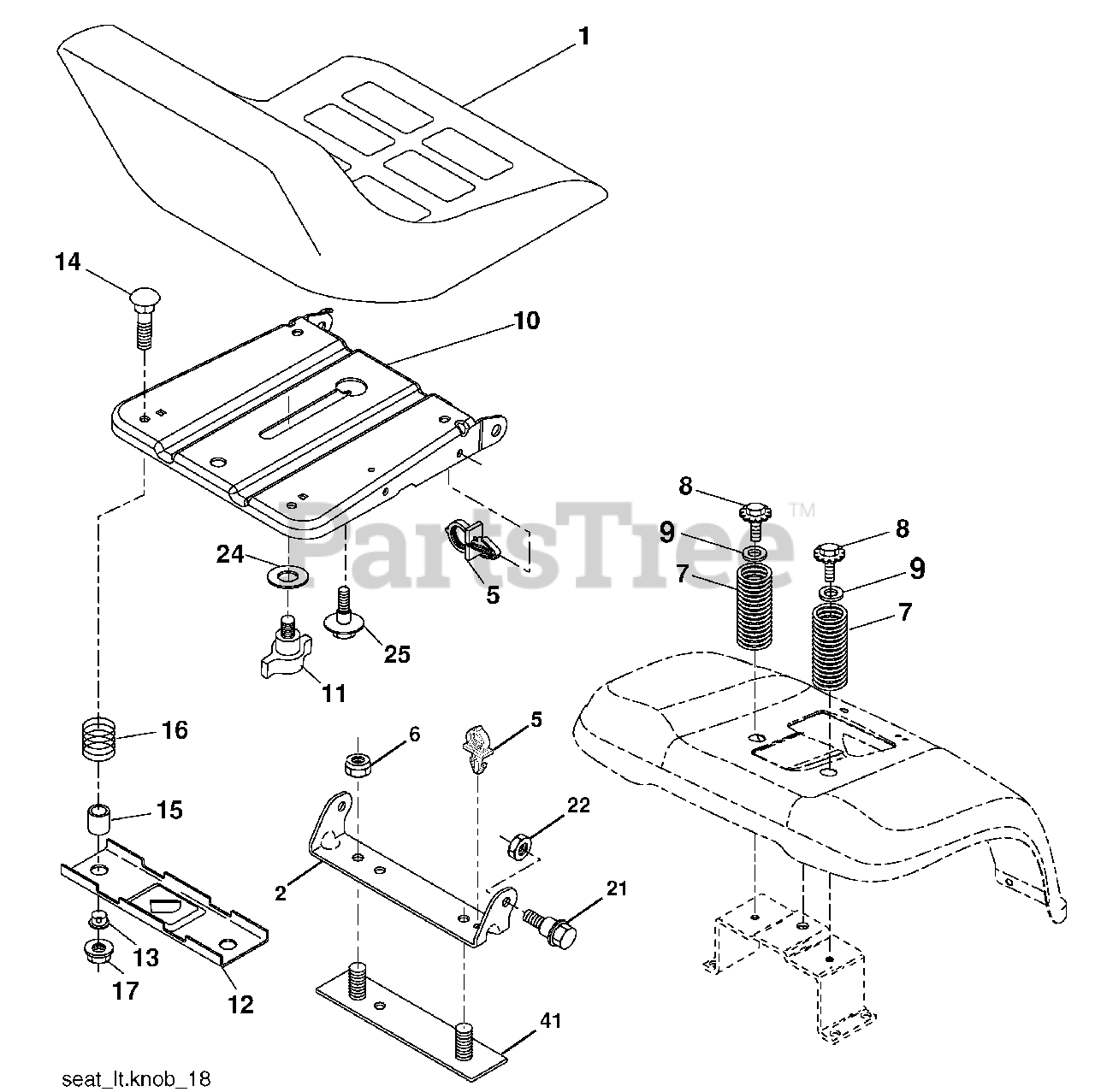

Seat Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 140551

Bracket Seat Pivot
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip Push-In Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut Lock Hex w/Ins 3/8 - 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 17000616

Screw 3/8-16 x 1.5
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Murray 19131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 195530

Pan Pnt Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 166369

Knob Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 174648

Bracket Pnt Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121248X

Bushing Snap Blk Nyl
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121249X

Spacer Split .28 x .88
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 123740

Spring Cprsn

$

$

Not available

17

Electrolux/AYP 123976X

Nut Lock 1/4 Lge Flg
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

21

Electrolux/AYP 171852

Bolt Shoul der 5/16-18 unc-2A
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 73800500

Nut Lock Hex w/Ins 5/16 - 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 19171912

Washer 17/32 x 1-3/16 x 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 127018X

Bolt Shoul der 5/16-18 x .62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 140675

Strap Asm Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0
