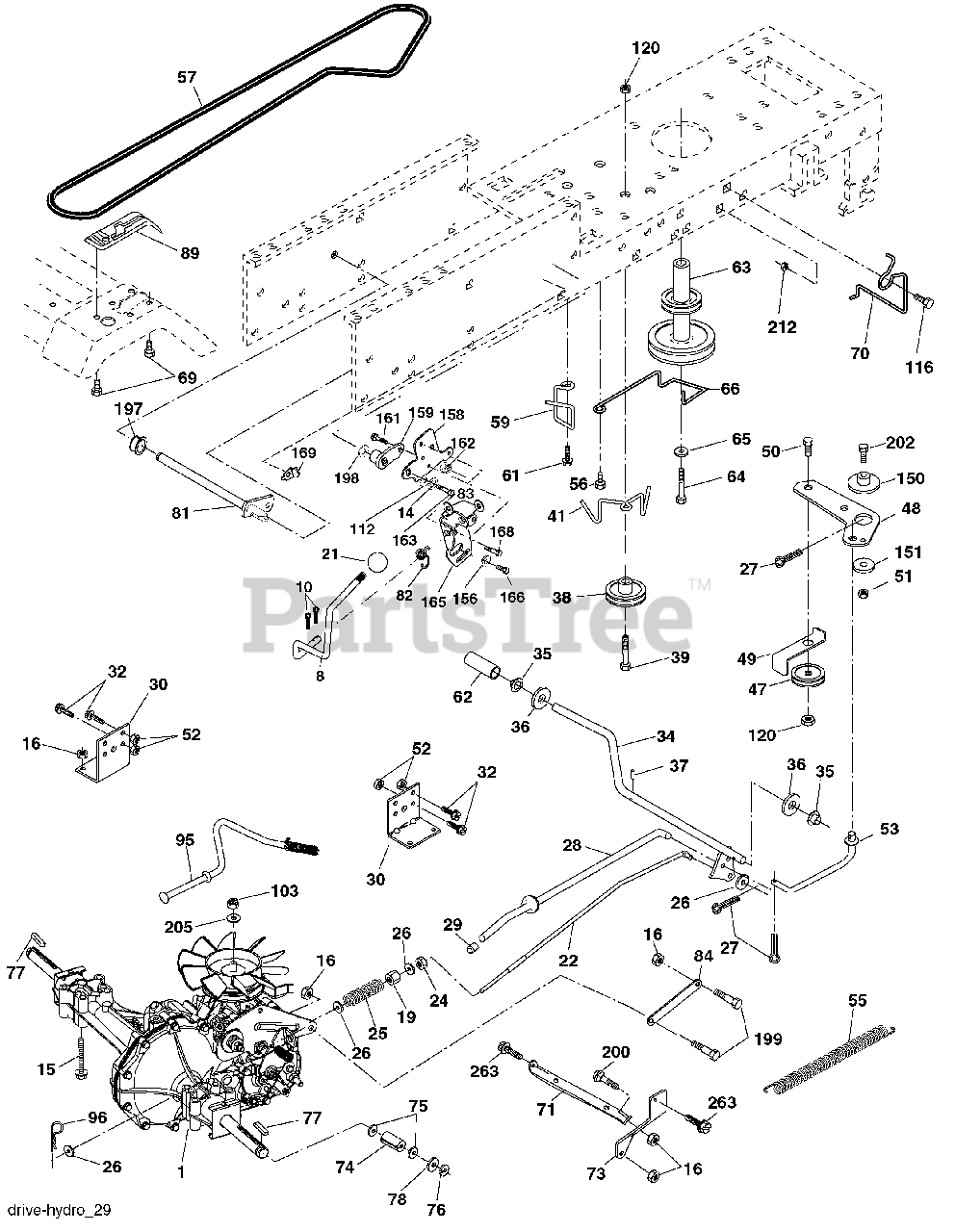

PBA 195H42 LT (960120079-00) - Poulan Pro Lawn Tractor (2007-10) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gear Model 322-0510

Note: (Order parts from transaxle manufacturer)

$

$

Not available

8

Electrolux/AYP 192502

Rod Shift
(Superseded to 532192502)

$

$

Not available

10

Electrolux/AYP 76020416

Pin Cotter 1/8 X 1
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 74490544

Bolt Hex FLGHD 5/16-18 Gr. 5 unc
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

Nut Lock Hex w/ins 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 73800600

Nut Lock Hex w/wsh 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 409154X421

Knob
(Superseded to 532411367)

$14.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 169498

Rod Brake
(Superseded to 532169498)

$20.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 73350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring Rod Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175765

Rod Brake Parking
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 124236X

Cap Brake Parking

$

$

Not available

30

Murray 174973

Bracket Transmission

$

$

Not available

32

Electrolux/AYP 74760512

Bolt Hex Hd 5/16-18 unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 175578

Shaft Foot Pedal
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin Roll

$

$

Not available

38

Electrolux/AYP 179114

Pulley Idler Composite
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 72110622

Bolt
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

41

Electrolux/AYP 175556

Keeper Belt Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley Idler V-Belt

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drustl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crownlock 5/16-28
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 199652

Link Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring Return Clutch
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 140294

V-Belt Drive
(Superseded to 532140294)

$39.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 169691

Keeper Belt Center
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 8883R

Cover Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 175410

Engine Pulley
(Superseded to 532175410)

$87.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine Hydro
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

Screw Hex wsh HiLo 1/4 x 1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 134683

Guide Belt Mower Drive RH
(Superseded to 532134683)

$

$

Not available

71

Electrolux/AYP 169183

Strap Torque, LH
(Superseded to 532169183)

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 169182

Strap Torque, RH
(Superseded to 532169182)

$17.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1 1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

Ring, E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key Square
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

81

Electrolux/AYP 165596

Shaft Asm Cross
(Superseded to 532165596)

$40.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 165711

Spring Torsion
(Superseded to 532165711)

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 169843

Link Transaxle

$2.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 192387

Console Shift

$

$

Not available

95

Electrolux/AYP 170201

Control Asm Bypass Hydro
(Superseded to 532170201)

$12.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

103

Electrolux/AYP 73940800

Nut, Hex Jam Top Lock 1/2-20 unf
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

112

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

116

Murray 72140608

Bolt 3/8-16 x 1

$

$

Not available

120

Murray 73900600

Bolt Hex 3/8-16 x 1-1/2

$

$

Not available

150

Electrolux/AYP 175456

Spacer Retainer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer 5/16 x 1.0 x 1.25
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 183900

Hub Tapered Flange Shift
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20 x 1
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 17490510

Screw 5/16-18 x 1.0 x .125
(Superseded to 817490510)

$4.99

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 169613

Nyliner Snap-In 5/8
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyliner 7/8 ID x .105 HYD
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 169612

Bolt Shoulder 5/16-18 unc
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Electrolux/AYP 72140508

Bolt Rdhd Sqnk 5/16-18 unc x 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

202

Electrolux/AYP 72110614

Bolt RdHd 3/8-16 unc x 1-1/2 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

205

Electrolux/AYP 19171616

Washer 17/32 x 1 x 16 Ga.

$2.99

$

Usually ships in 3-10 days

0

212

Murray 145212

Nut Hex flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

263

Electrolux/AYP 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!
