PB LGT 26H54 (960420140-00) - Poulan Pro Garden Tractor (2011-08) STEERING Parts Diagram

Garden Tractor

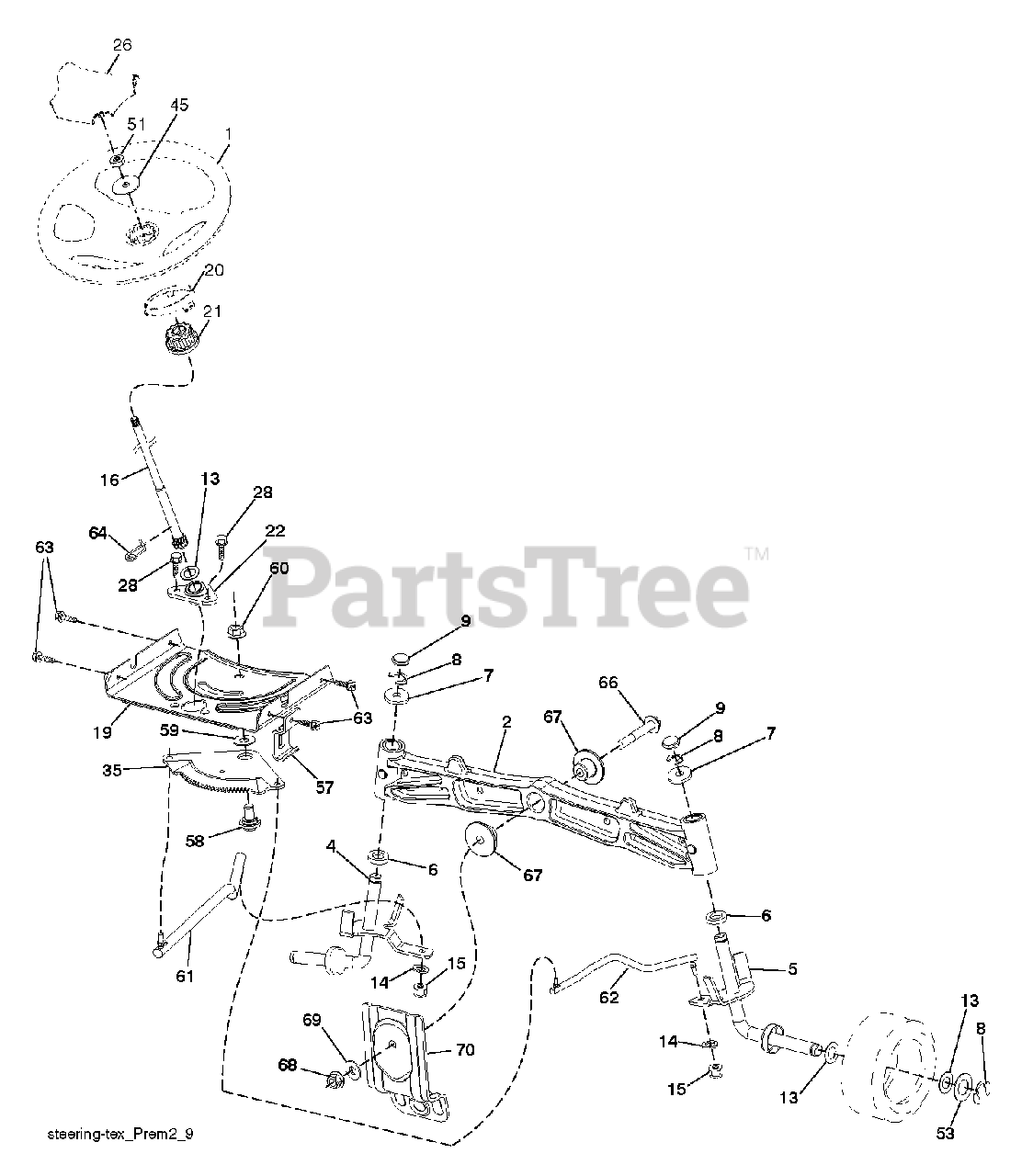

STEERING Parts Diagram

  • Title

1

Poulan 532424551

WHEEL.STEERING.MLT.BR.YEL/OVRM

$100.99

$

Usually ships in 3-10 days

0

2

Poulan 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

$145.99

$

In Stock, only 2 left!

0

4

Poulan 532403089

SPINDLE.WELDED.LH.16"TEX

Note: LH

$53.99

$

Usually ships in 3-10 days

0

5

Poulan 532403090

SPINDLE.WELDED.RH.16"TEX

Note: RH

$53.99

$

Usually ships in 3-10 days

0

6

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

13

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 532408219

SHAFT, STEERING
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

19

Poulan 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Poulan 532432784

BOOT, STEERING

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

22

Poulan 532420537

STEERING.SUPT.LOWER.
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Poulan 532424553

CAP.WHL.STRNG.MULTI.BRND.YEL

$17.99

$

Usually ships in 3-10 days

0

28

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

35

Poulan 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Poulan 819183812

WASHER 9/16"ID, 2 3/8""OD

$9.49

$

Usually ships in 3-10 days

0

51

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

53

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Poulan 532197246

BRKT.UPSTOP.GT/LT.TEX

$12.99

$

In Stock, only 1 left!

0

58

Poulan 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Poulan 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Poulan 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Poulan 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

Note: LH

$12.99

$

Usually ships in 3-10 days

0

62

Poulan 532194741

DRAGLINK.RH.BALLSTUD.D
(Superseded to 597047902)

Note: RH

$13.99

$

In Stock, Qty 20+

0

63

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Poulan 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Poulan 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Poulan 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Poulan 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0
