PB LGT 26H54 (960420140-00) - Poulan Pro Garden Tractor (2011-08) ENGINE Parts Diagram

Garden Tractor

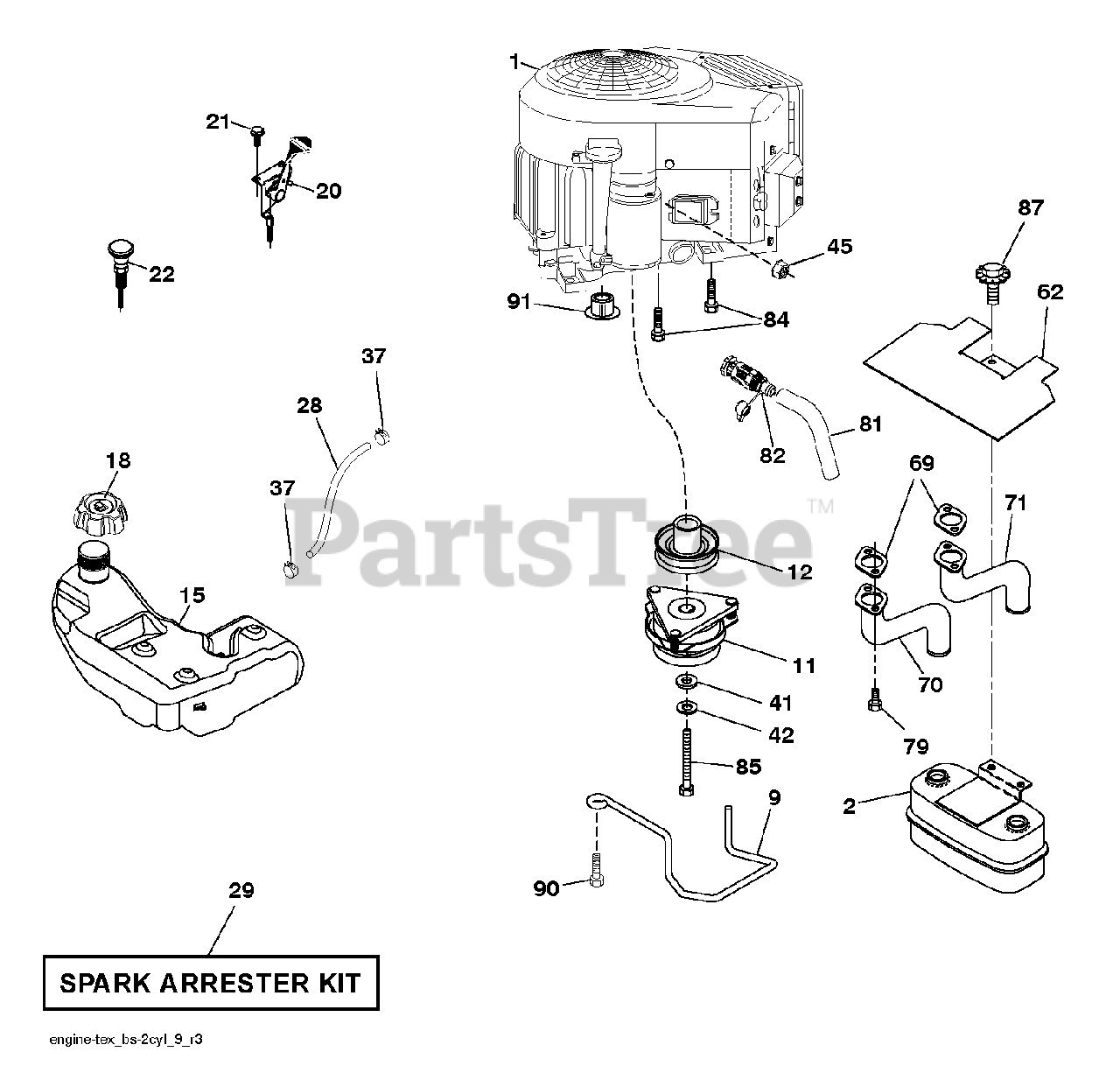

ENGINE Parts Diagram

  • Title
1

Poulan 000000000

Note: ENGINE B S MODEL NO 44P777-4448-G5 (445979)

$

$

Not available

2

Poulan 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Poulan 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

11

Poulan 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

12

Poulan 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Poulan 532438081

TANK.ASM.4.GAL.EPA.ONE.PORT
(Superseded to 598731101)

$194.99

$

Usually ships in 3-10 days

0

18

Poulan 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

In Stock, only 1 left!

0

20

Poulan 532178385

(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

22

Poulan 532191596

CONTROL CHOKE

$40.99

$

In Stock, only 1 left!

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS

$27.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Poulan 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

70

Poulan 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Poulan 532160589

RP.EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Poulan 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

87

Poulan 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Poulan 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0
