PB LGT 2654 (960420172-00) - Poulan Pro Garden Tractor (2014-10) DRIVE Parts Diagram

Garden Tractor

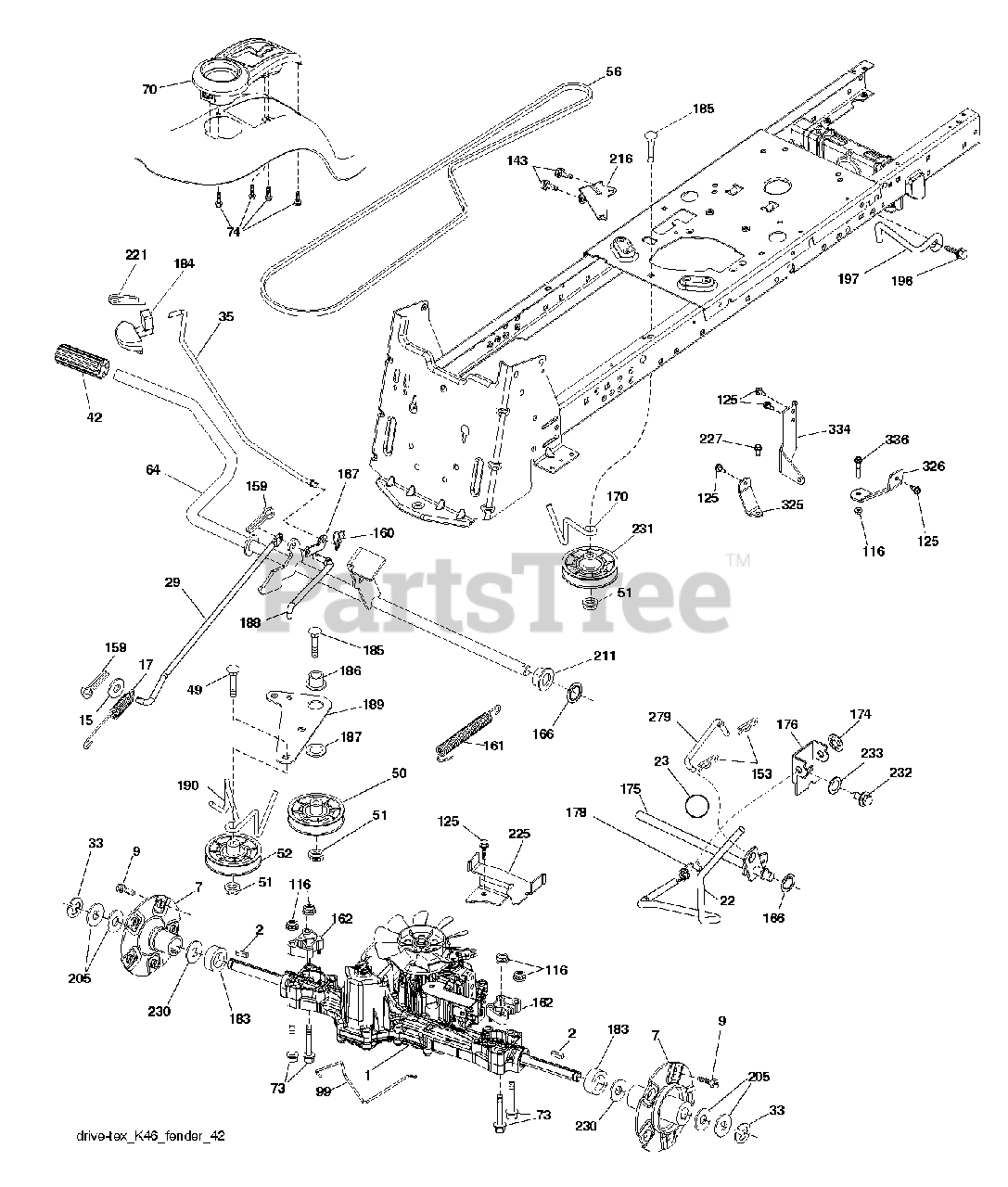

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE TUFFTORQ MODEL K46AW (448354)

$

$

Not available

2

Poulan 532186211

KEY.SQUARE.187X2.500

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532199844

HUB.ASM.WHEEL.REAR.22"

$56.99

$

In Stock, only 1 left!

0

9

Poulan 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Poulan 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

22

Poulan 532197329

ROD.SHIFT.FENDER.STGT.

$85.99

$

Usually ships in 3-10 days

0

23

Poulan 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

29

Poulan 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 15

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532130969

V-BELT.MOWER.92.40.42/K46

$30.99

$

Usually ships in 3-10 days

0

64

Poulan 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

70

Poulan 532193340

(Superseded to 583208701)

$85.99

$

Usually ships in 3-10 days

0

73

Poulan 874490560

Hex Flange Bolt, 5/16-18 X 3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

99

Poulan 532415743

ROD.SPRING.BYPASS.K46.TEX.GT

$10.99

$

In Stock, only 1 left!

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

143

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

SPRING, RETURN LT

$11.99

$

In Stock, Qty 6

0

162

Poulan 580457401

SPACER.TRANSAXLE.1"

$24.99

$

In Stock, only 2 left!

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

Usually ships in 3-10 days

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Poulan 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

174

Poulan 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Poulan 532406208

SHAFT ASM SHIFT

$26.99

$

Usually ships in 3-10 days

0

176

Poulan 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Poulan 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

183

Poulan 532400424

SPACER.SPLIT.800X.350

$8.99

$

In Stock, only 2 left!

0

184

Poulan 587653701

(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

196

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

197

Poulan 532199769

BRKT.ANIT-ROTATION.CLUTCH

$8.99

$

In Stock, only 4 left!

0

205

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 10

0

211

Poulan 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

216

Poulan 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

225

Poulan 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

227

Poulan 817490512

Screw, Lt
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

230

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Poulan 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, only 1 left!

0

232

Poulan 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Poulan 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

279

Poulan 532406207

LINK.SHIFT.T/A.K46.FEND.TX

$15.99

$

Usually ships in 3-10 days

0

325

Poulan 585995702

Torque Strap Bracket, 46 22" Tire LH

$4.99

$

In Stock, only 1 left!

0

326

Poulan 585993102

Torque Strap Bracket, 46 22" Tire RH

$4.99

$

In Stock, only 1 left!

0

334

Poulan 585882202

Sway Rod Bracket, K46 X431

$13.99

$

In Stock, only 1 left!

0

336

Poulan 587259601

Flanged Hex Bolt, 5/16-18 X 1-3/4
(Superseded to 587259602)

$4.99

$

In Stock, only 1 left!

0
