PB GT 27H54 (960220005-00) - Poulan Pro Garden Tractor (2005) Chassis And Enclosures Parts Diagram

Lawn Tractor

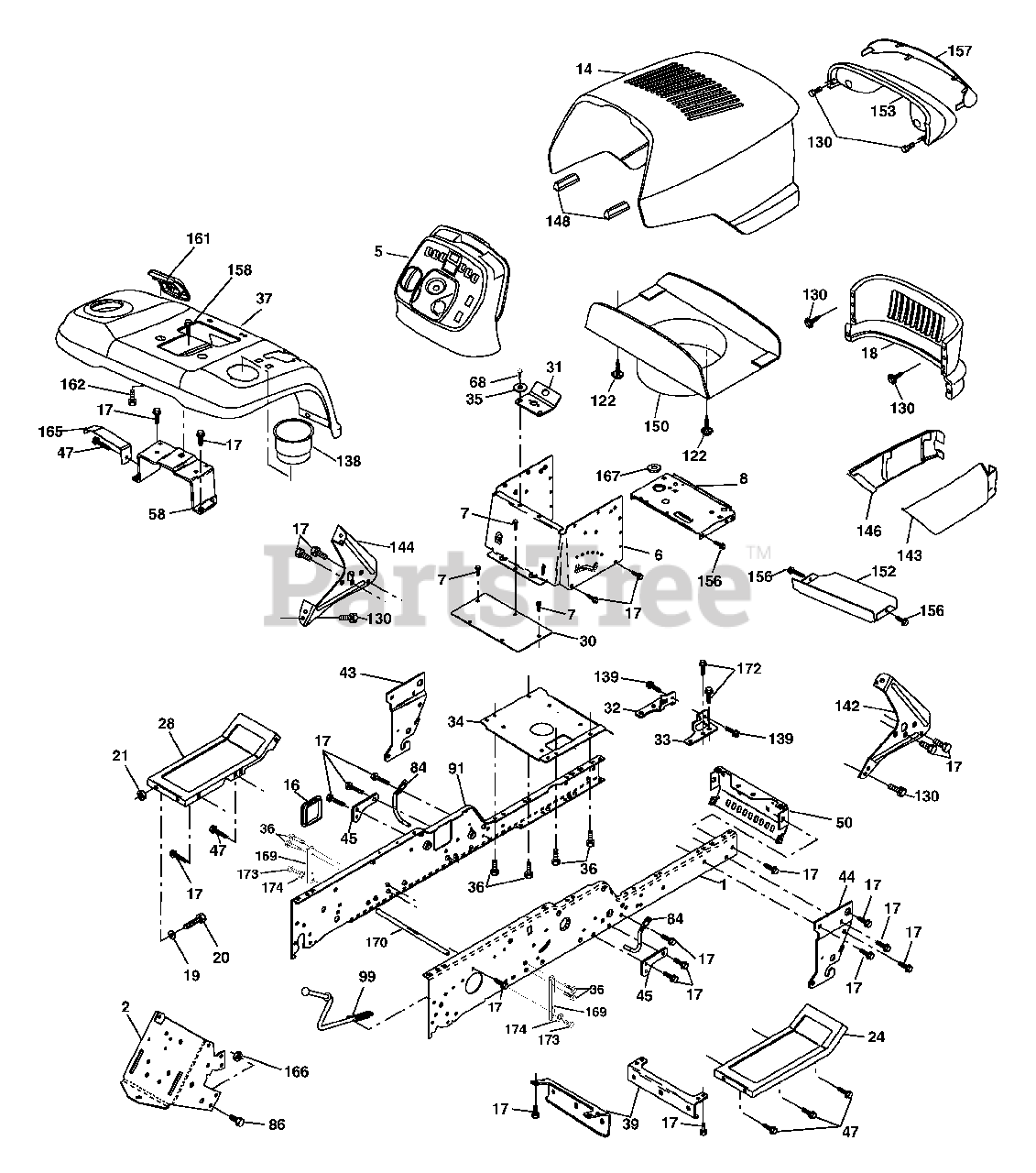

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 180375

Rail, Frame RH
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 175282

Drawbar, Gt
(Superseded to 532175282)

$

$

Not available

5

Electrolux/AYP 193636X428

Dash
(Superseded to 532194972)

$

$

Not available

6

Electrolux/AYP 157882

Dash Asm., Lower
(Superseded to 532157882)

$

$

Not available

7

Electrolux/AYP 17720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 184668

Support, Battery

$

$

Not available

14

Electrolux/AYP 175260X428

Hood Asm., Pnt
(Superseded to 584463701)

$

$

Not available

16

Electrolux/AYP 121794X

Cover, Access
(Superseded to 532121794)

$

$

Not available

17

Electrolux/AYP 17060612

Screw, 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

19

Electrolux/AYP 19131312

Washer
(Superseded to 596133201)

Note: 13/32 x 13/16 x 12 Ga.

$6.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 74780616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 73800600

Nut, Lock Hex w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 179717X428

Footrest, RH
(Superseded to 532182508)

$

$

Not available

28

Electrolux/AYP 179716X428

Footrest, LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 145052

Saddle, Hydro 1995
(Superseded to 532145052)

$

$

Not available

31

Electrolux/AYP 161419

Bracket, Supt 1-pc VGT Steering
(Superseded to 532161419)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 161327

Bracket, Pivot Chassis LH
(Superseded to 532161327)

$7.49

$

In Stock, only 4 left!

0

33

Electrolux/AYP 161326

Bracket, Pivot Chassis RH
(Superseded to 532161326)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 177018

Plate Asm. Engine Chassis
(Superseded to 532177018)

$37.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 192397X428

Fender, Pnt.
(Superseded to 532437111)

$182.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 175278

Bracket, Axle Front
(Superseded to 532175278)

$

$

Not available

43

Electrolux/AYP 136939

Bracket, Spnsn Front Lh
(Superseded to 532136939)

$

$

Not available

44

Electrolux/AYP 136940

Bracket, Spnsn Front Rh
(Superseded to 532136940)

$

$

Not available

45

Electrolux/AYP 187270

Bracket Arm Susp.
(Superseded to 532187270)

$8.99

$

In Stock, only 2 left!

0

47

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2 TYT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 175476

Bracket, Chassis Front
(Superseded to 532175476)

$

$

Not available

58

Electrolux/AYP 183569

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw, Thd 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 188164

Upstop
(Superseded to 532188164)

$

$

Not available

86

Electrolux/AYP 74780716

Bolt, Fin Hex 7/16-14 unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 180374

Rail, Frame Lh
(Superseded to 532180374)

$56.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 177143

Rod By Pass
(Superseded to 532177143)

$24.99

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

122

Electrolux/AYP 192512

Screw Hex Wshd 10-32 x 5/8
(Superseded to 532192512)

$5.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 191121X428

Cupholder YTGT
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 171873

Bolt Shoulder 5/16-18 TT
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 161897

Bracket Dash RH
(Superseded to 532161897)

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 169847X428

Skirt Grill RH
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 161900

Bracket Dash LH
(Superseded to 532161900)

$7.49

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 169848X428

Skirt Grill LH
(Superseded to 532187112)

$

$

Not available

148

Electrolux/AYP 164655

Extrusion Bumper
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175352

Duct Heat Hood
(Superseded to 583068401)

$36.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 177956

Shield Browning
(Superseded to 532177956)

$

$

Not available

153

Electrolux/AYP 179761

Light Box Asm. w/Lens
(Superseded to 583125001)

$

$

Not available

156

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

157

Electrolux/AYP 161840

Lens, Bar
(Superseded to 583125001)

$

$

Not available

158

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 17000612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

161

Electrolux/AYP 179612X428

Console Fuel Window
(Superseded to 532181787)

$34.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 142432

Screw 1/4-1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 183554

Bracket Support Tank
(Superseded to 532183554)

$85.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 73680700

Nut, Crownlock 7/16-14 unc
(Superseded to 873680700)

$2.99

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 184672

Bushing
(Superseded to 532184672)

$2.99

$

Usually ships in 3-10 days

0

169

Electrolux/AYP 188598

Bracket Chassis Sway
(Superseded to 532188598)

$

$

Not available

170

Electrolux/AYP 194667

Rod Bracket Sway Brace
(Superseded to 532194667)

$18.99

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

173

Electrolux/AYP 74780512

Bolt Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

174

Electrolux/AYP 10040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0
