PB GT 2654 (960420173-00) - Poulan Pro Garden Tractor (2014-10) DRIVE Parts Diagram

Garden Tractor

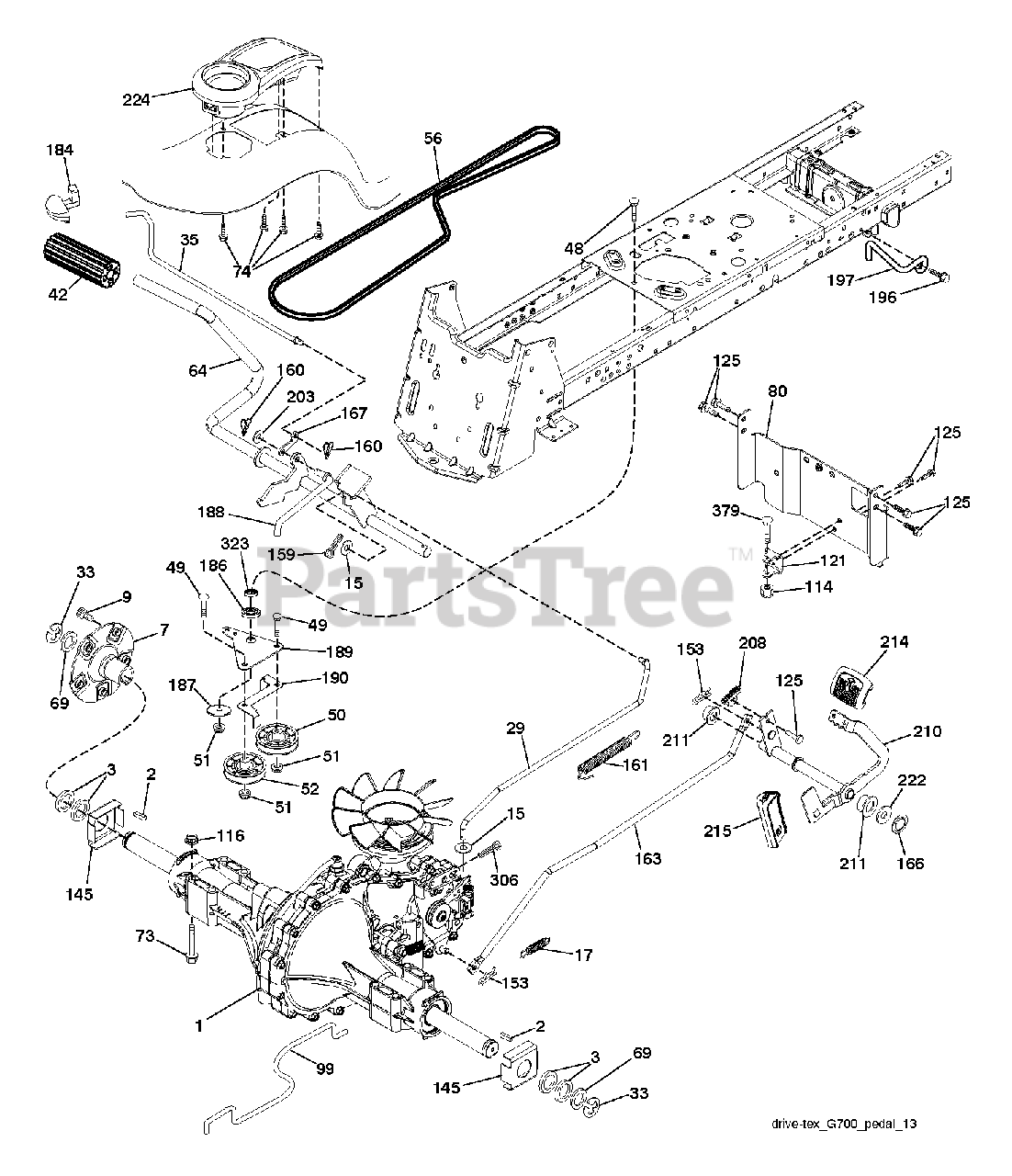

DRIVE Parts Diagram

  • Title
1

Poulan 000000000

Note: TRANSAXLE HYDRO G7-BCBB-1XDC-1FCA (420331)

$

$

Not available

2

Poulan 532007070

KEY 1/4 X 2.5

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 532007563

WASHER T

$8.99

$

In Stock, only 1 left!

0

7

Poulan 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 6

0

9

Poulan 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

$4.99

$

In Stock, Qty 5

0

17

Poulan 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

29

Poulan 532418186

ROD BRAKE

$34.99

$

Usually ships in 3-10 days

0

33

Poulan 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

48

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

Usually ships in 3-10 days

0

64

Poulan 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

$7.49

$

In Stock, only 1 left!

0

73

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 532418184

STRAP.TORQUE.YT.G700

$34.99

$

Usually ships in 3-10 days

0

99

Poulan 532418188

SPRING.BYPASS.YT.G700

$14.99

$

Usually ships in 3-10 days

0

114

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

121

Poulan 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

145

Poulan 532163168

WASHER.AXLE.FLANGE.HG-3000

$15.99

$

In Stock, only 3 left!

0

153

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Poulan 532418185

ROD PEDAL CONTROL

$34.99

$

Usually ships in 3-10 days

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

184

Poulan 587653701

(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532407504

BELLCRANK.GROUND.DRIVE.TRAPPED

$15.99

$

Usually ships in 3-10 days

0

190

Poulan 532407505

KEEPER BELLCRANK ROUND DRIVE

$10.99

$

In Stock, only 1 left!

0

196

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Poulan 585658601

Clutch Anti-Rotation Wireform
(Superseded to 585658602)

$5.99

$

In Stock, only 2 left!

0

203

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

208

Poulan 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

210

Poulan 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

211

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

214

Poulan 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Poulan 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

222

Poulan 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

224

Poulan 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

306

Poulan 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

323

Poulan 585714101

SLEEVE.BELLCRANK

$

$

Not available

379

Poulan 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0
