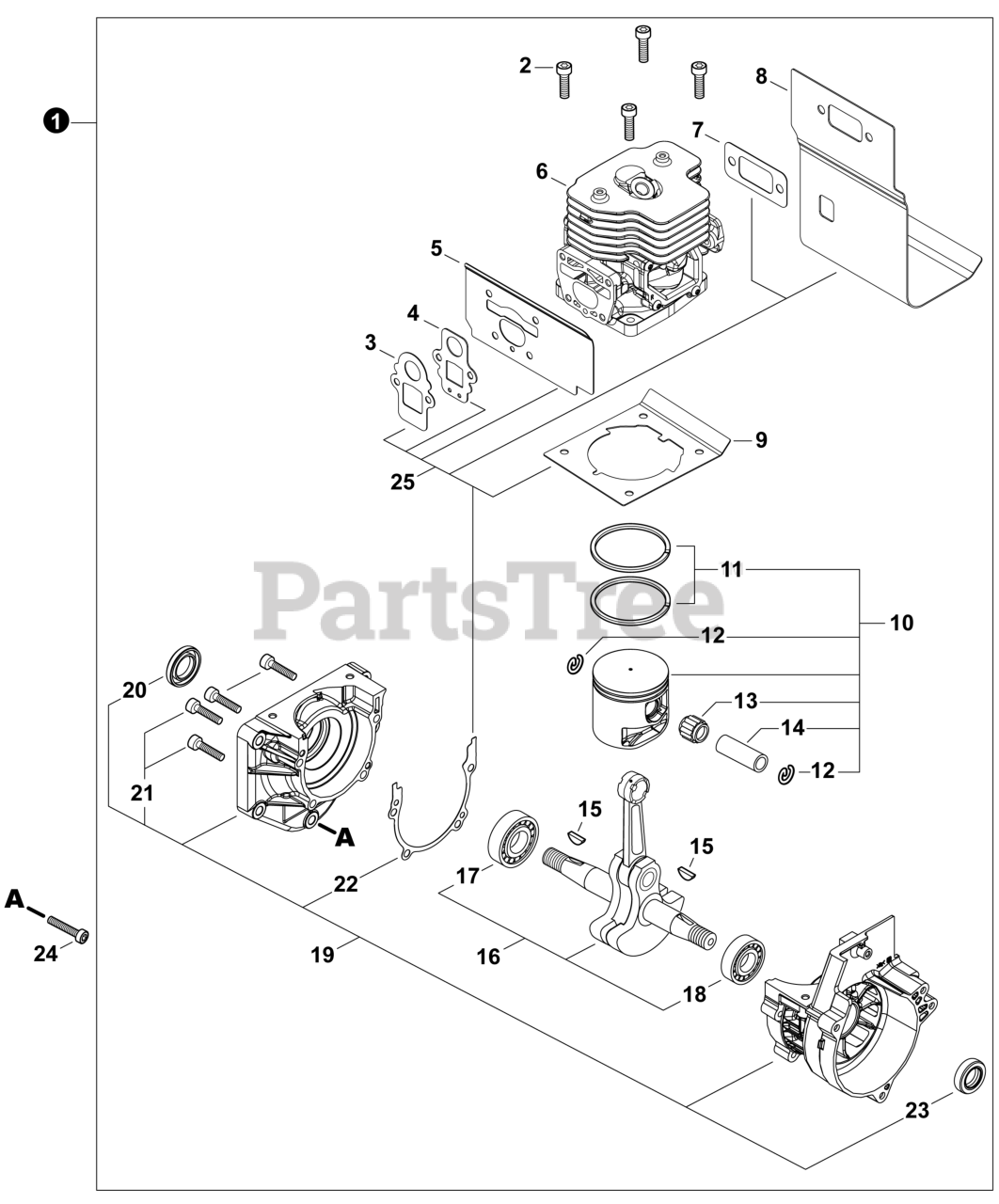

PB-9010 T - Echo Backpack Blower (SN: P53415001001 - P53415999999) Engine Parts Diagram

Backpack Blower

Engine Parts Diagram

  • Title
1

Echo SB1127

SHORT BLOCK

Note: Includes items 2-23

$397.99

$

Usually ships in 2-4 days

0

2

Echo V855000010

BOLT, TORX 5x25

$1.49

$

In Stock, only 2 left!

0

3

Echo V103002050

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

4

Echo V103002060

GASKET, INTAKE

$1.49

$

In Stock, Qty 13

0

5

Echo V103002150

HEAT SHIELD, INTAKE

$2.99

$

In Stock, Qty 19

0

6

Echo P100008280

CYLINDER ASSY
(Superseded to P100006300)

$136.99

$

In Stock, Qty 10

0

7

Echo V104002440

GASKET, EXHAUST

$1.49

$

In Stock, Qty 9

0

8

Echo V104002430

HEAT SHIELD, EXHAUST

$4.49

$

Usually ships in 2-4 days

0

9

Echo V100000880

GASKET, CYLINDER

$7.99

$

In Stock, Qty 12

0

10

Echo P100008021

PISTON KIT

Note: Includes items 11-14

$59.99

$

Usually ships in 2-4 days

0

11

Echo A101000820

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

12

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

13

Echo V558000020

BEARING, NEEDLE 13

$7.99

$

Usually ships in 2-4 days

0

14

Echo V611000020

PIN, PISTON

$6.49

$

In Stock, only 1 left!

0

15

Echo 90032303014

KEY, WOODRUFF 3x14

$1.49

$

In Stock, only 2 left!

0

16

Echo P200001000

CRANKSHAFT ASSY

Note: Includes items 17-18

$126.99

$

In Stock, only 1 left!

0

17

Echo V592000490

BEARING, BALL 6203

$8.49

$

Usually ships in 2-4 days

0

18

Echo V592000510

BEARING, BALL 6202

$8.49

$

Usually ships in 2-4 days

0

19

Echo P100006311

CRANKCASE SET

Note: Includes items 20-23

$80.99

$

Usually ships in 2-4 days

0

20

Echo V510000030

SEAL, OIL 17

$12.99

$

Usually ships in 2-4 days

0

21

Echo V805000290

BOLT, TORX 5x35

$1.49

$

In Stock, only 4 left!

0

22

Echo V102000320

GASKET, CRANKCASE

$1.49

$

In Stock, only 3 left!

0

23

Echo V508000100

SEAL, OIL 15

$5.49

$

In Stock, Qty 5

0

24

Echo V254000220

BOLT, TORX 6x30

$0.99

$

Usually ships in 2-4 days

0

25

Echo P021053170

GASKET KIT: ENGINE, INTAKE, EXHAUST

$22.99

$

Usually ships in 2-4 days

0
