PB-8010 T - Echo Backpack Blower (SN: P49515001001 - P49515999999) Fuel System Parts Diagram

Backpack Blower

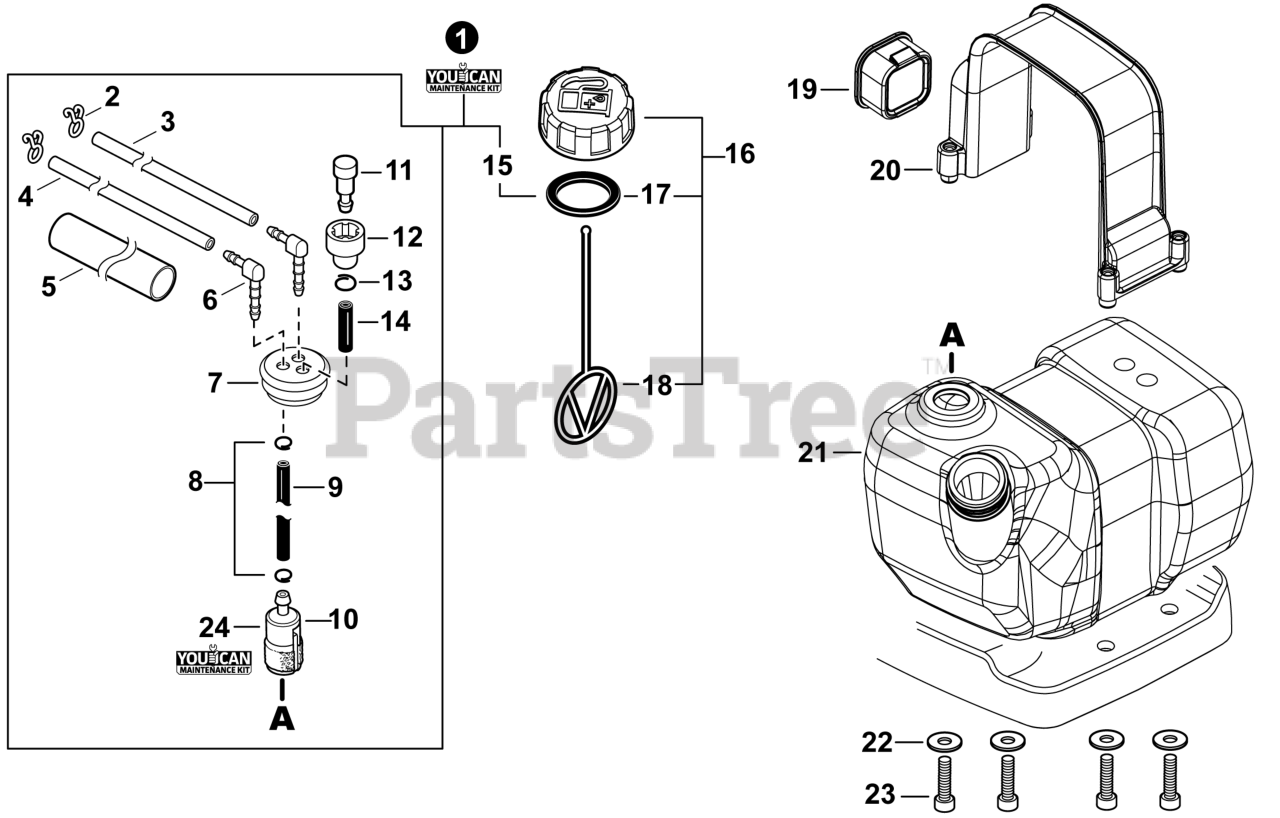

Fuel System Parts Diagram

  • Title
1

Echo 90195Y

FUEL SYSTEM KIT - YOUCAN?

Note: Includes items 2-15 See Maintenance Kits

$41.99

$

In Stock, only 3 left!

0

2

Echo V490000510

CLIP, SPRING 5.2

$0.99

$

In Stock, only 1 left!

0

3

Echo V471005430

PIPE, FUEL 3x6x170 YELLOW

$1.49

$

In Stock, Qty 5

0

4

Echo V471005410

PIPE, FUEL 3.5x6x160 CLEAR
(Superseded to V471005411)

$4.49

$

In Stock, Qty 5

0

5

Echo V475009460

TUBE, INSULATOR 16x18x90

$1.49

$

In Stock, only 1 left!

0

6

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 15

0

7

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

8

$0.99

$

Usually ships in 2-4 days

0

9

Echo V471001231

PIPE, FUEL 3x5x210 BLACK

$5.99

$

In Stock, only 4 left!

0

10

Echo A369000460

FILTER, FUEL

Note: Included in Tune-up Kit

$9.49

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

12

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

13

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

14

Echo V471005421

PIPE, FUEL 3x6x30 BLACK

$1.49

$

In Stock, only 4 left!

0

15

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

16

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes items 17-18

$5.99

$

In Stock, only 1 left!

0

17

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

Note: Included in Fuel System Kit

$1.49

$

In Stock, Qty 20+

0

18

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

19

Echo V420005400

CUSHION

$3.99

$

Usually ships in 2-4 days

0

20

Echo A392000460

BAND, FUEL TANK

$8.49

$

Usually ships in 2-4 days

0

21

Echo A350002390

TANK, FUEL
(Superseded to A350002481)

$55.99

$

In Stock, only 1 left!

0

22

Echo 13191103460

WASHER 5.5x16x0.8

$0.99

$

In Stock, Qty 9

0

23

Echo V253000990

BOLT 5x20

$1.49

$

In Stock, Qty 11

0

24

Echo 90194Y

TUNE-UP KIT - YOUCAN?

Note: See Maintenance Kits

$41.99

$

In Stock, Qty 9

0
