PB-8010 H - Echo Backpack Blower (SN: P48715001001 - P48715999999) Carburetor Parts Diagram

Backpack Blower

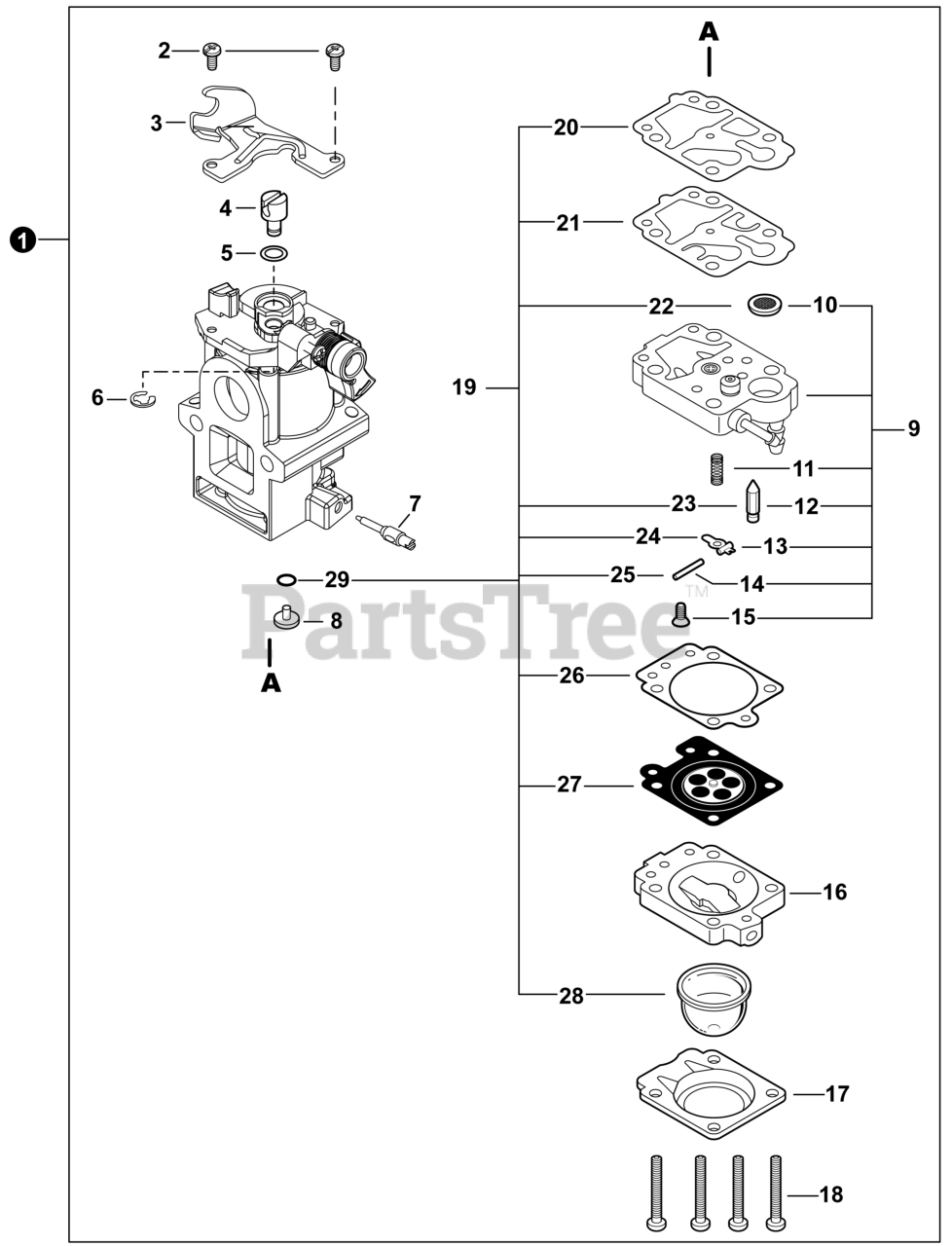

Carburetor Parts Diagram

  • Title

1

Echo A021004920

CARBURETOR WYAB-1

Note: Includes items 2-29

$74.99

$

In Stock, only 4 left!

0

2

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

3

Echo P003006190

BRACKET, THROTTLE CABLE

$11.99

$

Usually ships in 2-4 days

0

4

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

6

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

7

Echo P003005880

NEEDLE, MIXTURE

$7.49

$

Usually ships in 2-4 days

0

8

Echo P003006200

JET

$22.99

$

Usually ships in 2-4 days

0

9

Echo P003006180

BODY ASSY, PUMP

Note: Includes items 10-15

$14.99

$

In Stock, only 2 left!

0

10

SCREEN, FUEL INLET

$

$

Not available

11

SPRING, METERING LEVER

$

$

Not available

12

VALVE, INLET NEEDLE

$

$

Not available

13

LEVER, METERING

$

$

Not available

14

PIN, METERING LEVER

$

$

Not available

15

SCREW

$

$

Not available

16

Echo P003003980

BODY ASSY, PURGE

$5.49

$

In Stock, only 2 left!

0

17

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

18

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

19

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes items 20-29

$10.99

$

In Stock, Qty 12

0

20

GASKET, PUMP

$

$

Not available

21

DIAPHRAGM, FUEL PUMP

$

$

Not available

22

SCREEN, FUEL INLET

$

$

Not available

23

VALVE, INLET NEEDLE

$

$

Not available

24

LEVER, METERING

$

$

Not available

25

PIN, METERING LEVER

$

$

Not available

26

GASKET, METERING DIAPHRAGM

$

$

Not available

27

DIAPHRAGM, METERING

$

$

Not available

28

BULB, PURGE

$

$

Not available

29

O-RING

$

$

Not available
