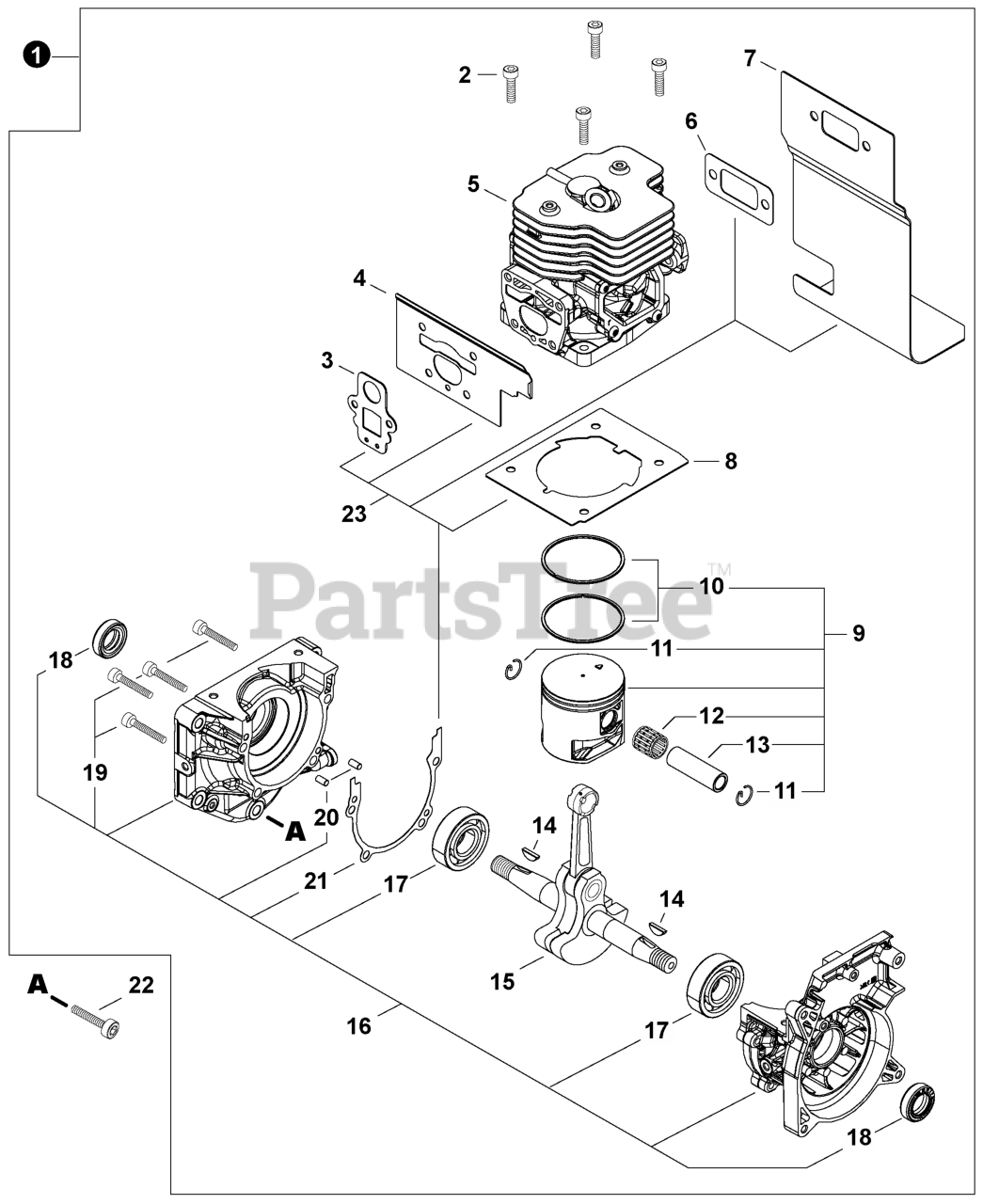

PB-7910 T - Echo Backpack Blower (SN: P57712001001 - P57712999999) Engine Parts Diagram

Backpack Blower

Engine Parts Diagram

  • Title

1

Echo SB1130

SHORT BLOCK

Note: Includes items 2-21

$

$

Currently unavailable

2

Echo V855000010

BOLT, TORX 5x25

$1.49

$

In Stock, only 2 left!

0

3

Echo V103002060

GASKET, INTAKE

$1.49

$

In Stock, Qty 13

0

4

Echo V103002260

HEAT SHIELD, INTAKE

$

$

Currently unavailable

5

Echo P100013220

CYLINDER ASSY

$

$

Currently unavailable

6

Echo V104002440

GASKET, EXHAUST

$1.49

$

In Stock, Qty 9

0

7

Echo V104002610

HEAT SHIELD, EXHAUST

$

$

Currently unavailable

8

Echo V100000910

GASKET, CYLINDER

$

$

Currently unavailable

9

Echo P100013210

PISTON KIT

Note: Includes items 10-13

$

$

Currently unavailable

10

Echo A101000820

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

11

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

12

Echo V558000030

BEARING, NEEDLE 13

$

$

Currently unavailable

13

Echo V611000040

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

14

Echo 90032303014

KEY, WOODRUFF 3x14

$1.49

$

In Stock, only 2 left!

0

15

Echo A011001690

CRANKSHAFT ASSY

$

$

Currently unavailable

16

Echo P100013230

CRANKCASE SET

Note: Includes items 17-21

$

$

Currently unavailable

17

Echo 9403646203

BEARING, BALL 6203

$

$

Currently unavailable

18

Echo V508000100

SEAL, OIL 15

$5.49

$

In Stock, Qty 6

0

19

Echo V805000180

BOLT, TORX 5x30

$1.49

$

In Stock, Qty 5

0

20

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

21

Echo V102000360

GASKET, CRANKCASE

$

$

Currently unavailable

22

Echo V254000220

BOLT, TORX 6x30

$0.99

$

Usually ships in 2-4 days

0

23

Echo P021054550

GASKET KIT: ENGINE, INTAKE, EXHAUST

$

$

Currently unavailable
