PB-7910 T - Echo Backpack Blower (SN: P56415001001 - P56415999999) Throttle Control Parts Diagram

Backpack Blower

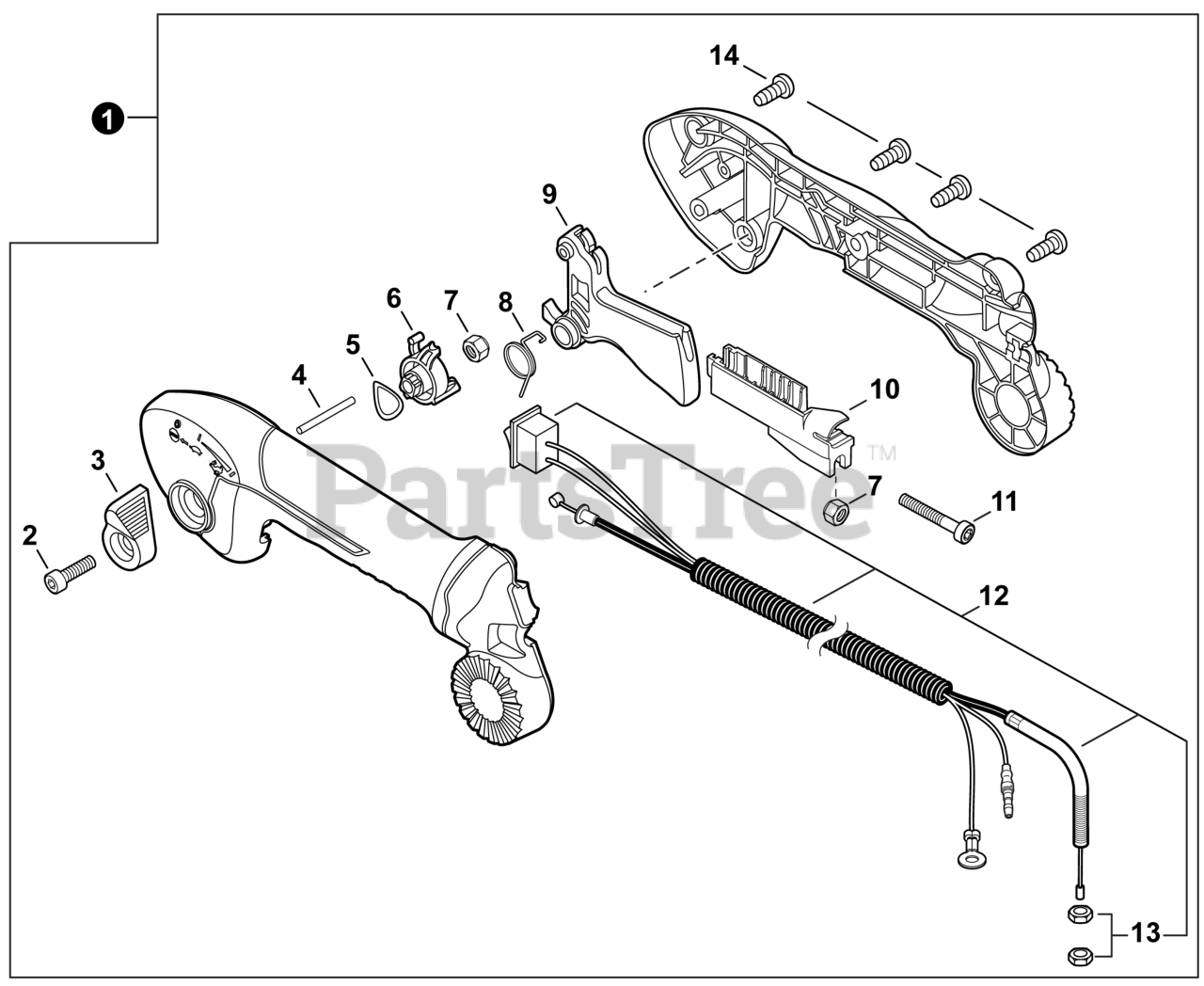

Throttle Control Parts Diagram

  • Title

1

Echo P021054600

THROTTLE CONTROL KIT - TUBE MOUNT

Note: Includes items 2-14

$

$

Currently unavailable

2

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

3

Echo C453000560

LEVER, THROTTLE

$6.99

$

In Stock, only 2 left!

0

4

Echo V621000040

PIN 3x32

$1.49

$

In Stock, Qty 8

0

5

Echo 42975201850

WASHER, WAVE 12

$1.99

$

In Stock, only 1 left!

0

6

Echo C453000580

CONTROL, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

7

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

8

Echo V452001630

SPRING, TORSION

$1.49

$

In Stock, only 3 left!

0

9

Echo C450000941

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 18

0

10

Echo C482000101

CONNECTOR, CABLE

$4.49

$

In Stock, only 1 left!

0

11

Echo V805000050

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 20+

0

12

Echo V043001230

CABLE ASSY, CONTROL

Note: Includes item 13

$

$

Currently unavailable

13

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 3 left!

0

14

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0
