PB-7910 H - Echo Backpack Blower (SN: P57613001001 - P57613999999) Throttle Control Parts Diagram

Backpack Blower

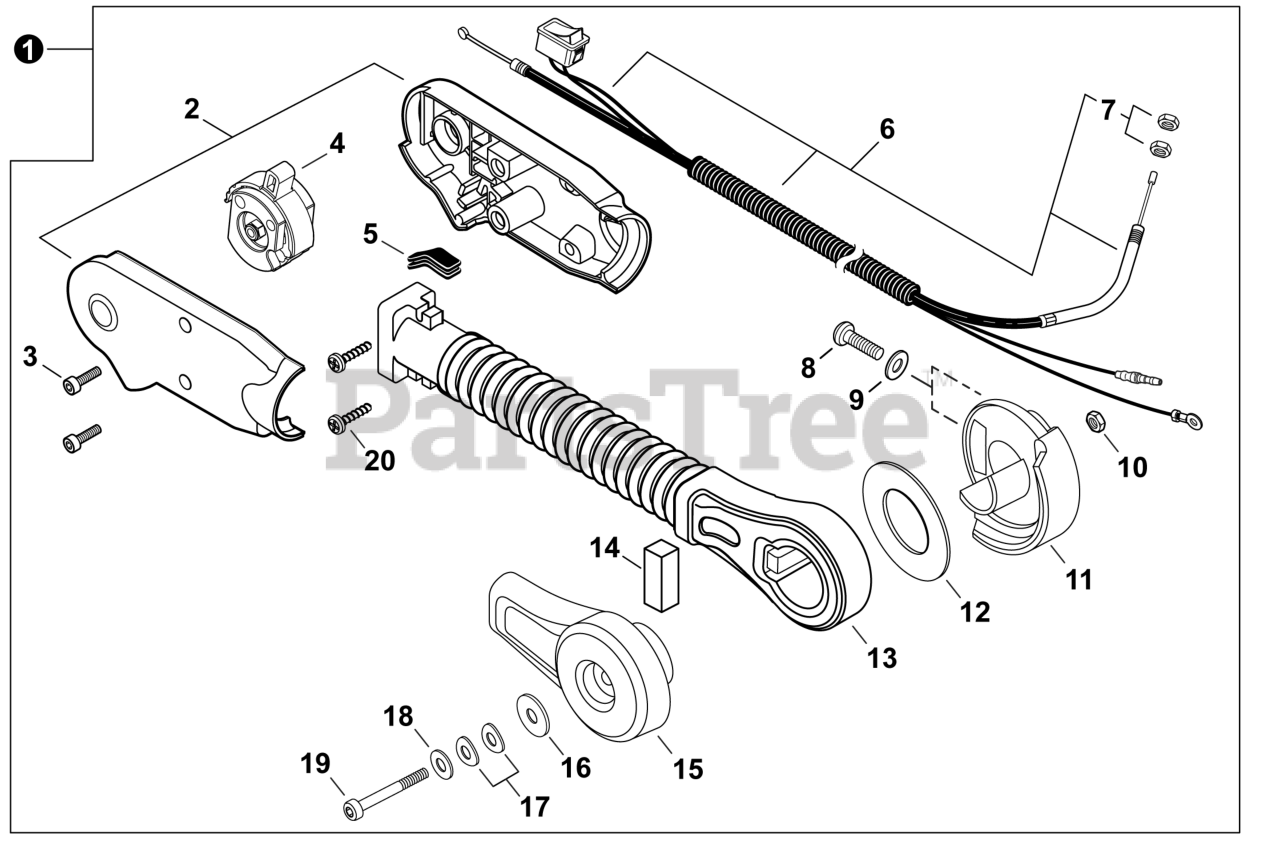

Throttle Control Parts Diagram

  • Title

1

Echo P021054560

THROTTLE CONTROL KIT - HIP MOUNT

Note: Includes items 2-20

$

$

Currently unavailable

2

Echo P021014673

GRIP SET, THROTTLE

$5.49

$

In Stock, only 4 left!

0

3

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

4

Echo C470000162

CONTROL, THROTTLE

$7.99

$

In Stock, only 2 left!

0

5

Echo V144000181

GROMMET

$2.49

$

In Stock, only 2 left!

0

6

Echo P021054570

CABLE ASSY, CONTROL

Note: Includes item 7

$

$

Currently unavailable

7

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 8

0

8

Echo V805000010

BOLT, TORX 5x20

$0.99

$

Usually ships in 2-4 days

0

9

Echo 13191103460

WASHER 5.5x16x0.8

$0.99

$

In Stock, Qty 9

0

10

Echo 90056250006

NUT, LOCK M6

$1.49

$

Usually ships in 2-4 days

0

11

Echo C472000041

BRACKET, ARM - INNER

$2.99

$

Usually ships in 2-4 days

0

12

Echo V336000000

WASHER 45

$1.99

$

In Stock, Qty 5

0

13

Echo C456000050

ARM, THROTTLE CONTROL

$8.49

$

In Stock, Qty 10

0

14

Echo V129000190

SEAL, DUST - FOAM

$0.99

$

Usually ships in 2-4 days

0

15

Echo C472000051

BRACKET, ARM - OUTER

$2.99

$

Usually ships in 2-4 days

0

16

Echo V304000040

WASHER 6.6x20x1.6

$0.99

$

In Stock, Qty 20+

0

17

Echo 17816021060

WASHER, FRICTION 6.6x14.3

$0.99

$

In Stock, only 3 left!

0

18

Echo 69911804560

WASHER 6.5x15.5x0.6

$0.99

$

In Stock, Qty 20+

0

19

Echo V806000030

BOLT, TORX 6x75

$1.99

$

In Stock, only 1 left!

0

20

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0
