PB-770 T - Echo Backpack Blower (SN: P45014001001 - P45014999999) Fuel System Parts Diagram

Backpack Blower

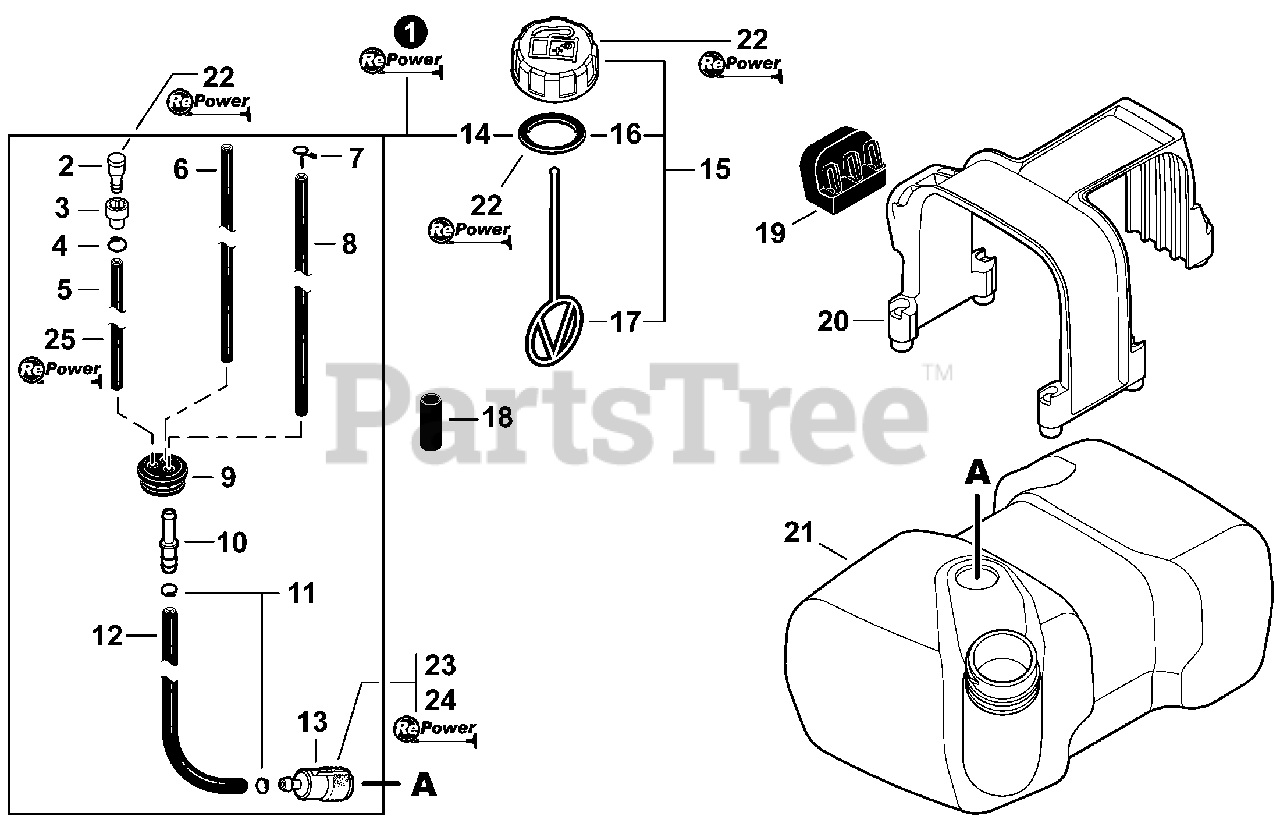

Fuel System Parts Diagram

  • Title
1

Echo 90134BP

FUEL SYSTEM KIT - REPOWER
(Superseded to 90134Y)

Note: Includes ITEMS 2-14

$29.99

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 10

0

4

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471002310

PIPE, FUEL VENT 3×6×130
(Superseded to V471002311)

$1.49

$

In Stock, Qty 9

0

6

Echo V471001470

PIPE, FUEL 2.4×5×200 BLACK
(Superseded to V471001471)

$3.99

$

In Stock, only 1 left!

0

7

Echo V490000510

CLIP, SPRING Ø5.2

$0.99

$

In Stock, Qty 13

0

8

Echo V471003580

PIPE, FUEL 3×5×135L BLACK

$5.49

$

In Stock, only 3 left!

0

9

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 18

0

10

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 15

0

12

Echo V470001950

PIPE, FUEL 3×5×105L BLACK

$4.49

$

In Stock, only 1 left!

0

13

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 16-17

$5.99

$

In Stock, Qty 20+

0

16

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

17

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

18

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

19

Echo V420004620

CUSHION

$4.99

$

Usually ships in 2-4 days

0

20

Echo A392000281

RETAINER, FUEL TANK

$9.49

$

In Stock, only 4 left!

0

21

Echo A350000920

TANK, FUEL
(Superseded to A350000921)

$34.99

$

In Stock, only 1 left!

0

22

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90122

TUNE-UP KIT - REPOWER
(Superseded to 90122Y)

$33.99

$

In Stock, only 3 left!

0

24

Echo 90124

FILTER KIT - REPOWER
(Superseded to 90122Y)

$33.99

$

In Stock, only 3 left!

0

25

Echo 90015

PIPE, BULK - 3×6mm BLACK

$40.99

$

In Stock, only 4 left!

0
