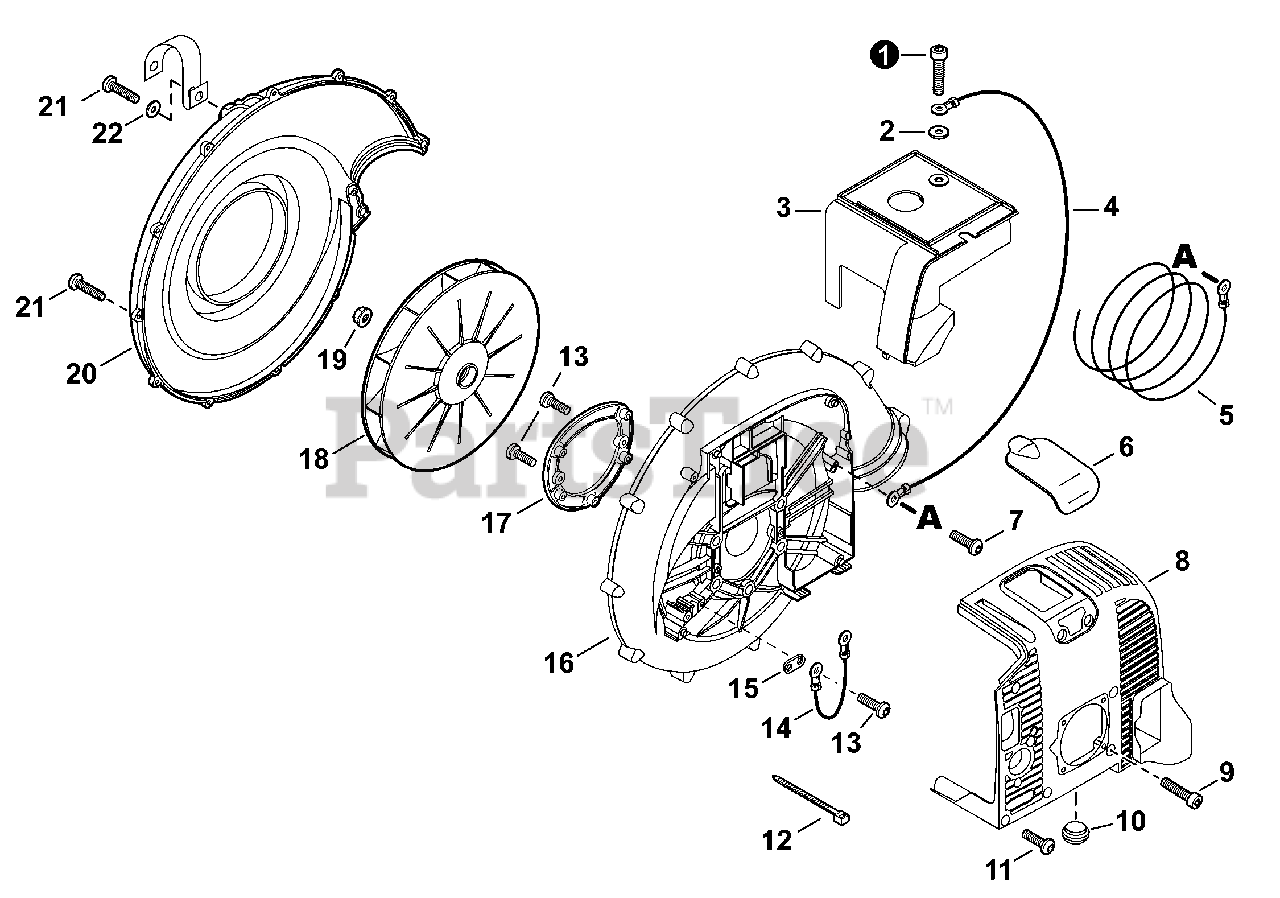

PB-770 T - Echo Backpack Blower (SN: P05311001001 - P05311999999) Fan Case, Engine Cover Parts Diagram

Backpack Blower

Fan Case, Engine Cover Parts Diagram

  • Title

1

Echo V253000990

SCREW 5×20

$1.49

$

In Stock, only 3 left!

0

2

Echo V323000060

WASHER 5.2×14×T3

$3.49

$

In Stock, only 1 left!

0

3

Echo A160001240

COVER, CYLINDER
(Superseded to A160001242)

$5.49

$

Usually ships in 2-4 days

0

4

Echo V485001180

LEAD L= 195 mm

$1.99

$

Usually ships in 2-4 days

0

5

Echo V485001200

WIRE, STATIC DISCHARGE 890mm

$6.49

$

In Stock, only 2 left!

0

6

Echo A429000060

COVER, SPARK PLUG

$3.49

$

In Stock, only 4 left!

0

7

Echo V805000240

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

8

Echo A190000850

COVER, ENGINE
(Superseded to A190000851)

$19.99

$

In Stock, Qty 20+

0

9

Echo V253001010

SCREW 5×16

$1.49

$

In Stock, only 4 left!

0

10

Echo V420000910

CUSHION

$1.49

$

In Stock, only 3 left!

0

11

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

12

Echo 17812143230

STRAP, TIE

$3.49

$

In Stock, only 4 left!

0

13

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo V485001190

LEAD L= 295 mm

$2.99

$

Usually ships in 2-4 days

0

15

Echo V150001350

PLATE, EYE

$0.99

$

In Stock, only 4 left!

0

16

Echo E103000670

CASE, FAN

$23.99

$

Usually ships in 2-4 days

0

17

Echo C632000100

PLATE, ENGINE

$13.99

$

In Stock, only 1 left!

0

18

Echo E100000080

FAN, BLOWER
(Superseded to E100000081)

$77.99

$

Usually ships in 2-4 days

0

19

Echo 90051900010

NUT, FLANGE 10×1.25

$1.99

$

In Stock, only 4 left!

0

20

Echo E103000680

COVER, FAN
(Superseded to E103000681)

$28.99

$

In Stock, only 4 left!

0

21

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

22

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 10

0
