PB-770 H - Echo Backpack Blower (SN: P44914001001 - P44914999999) Throttle Control Parts Diagram

Backpack Blower

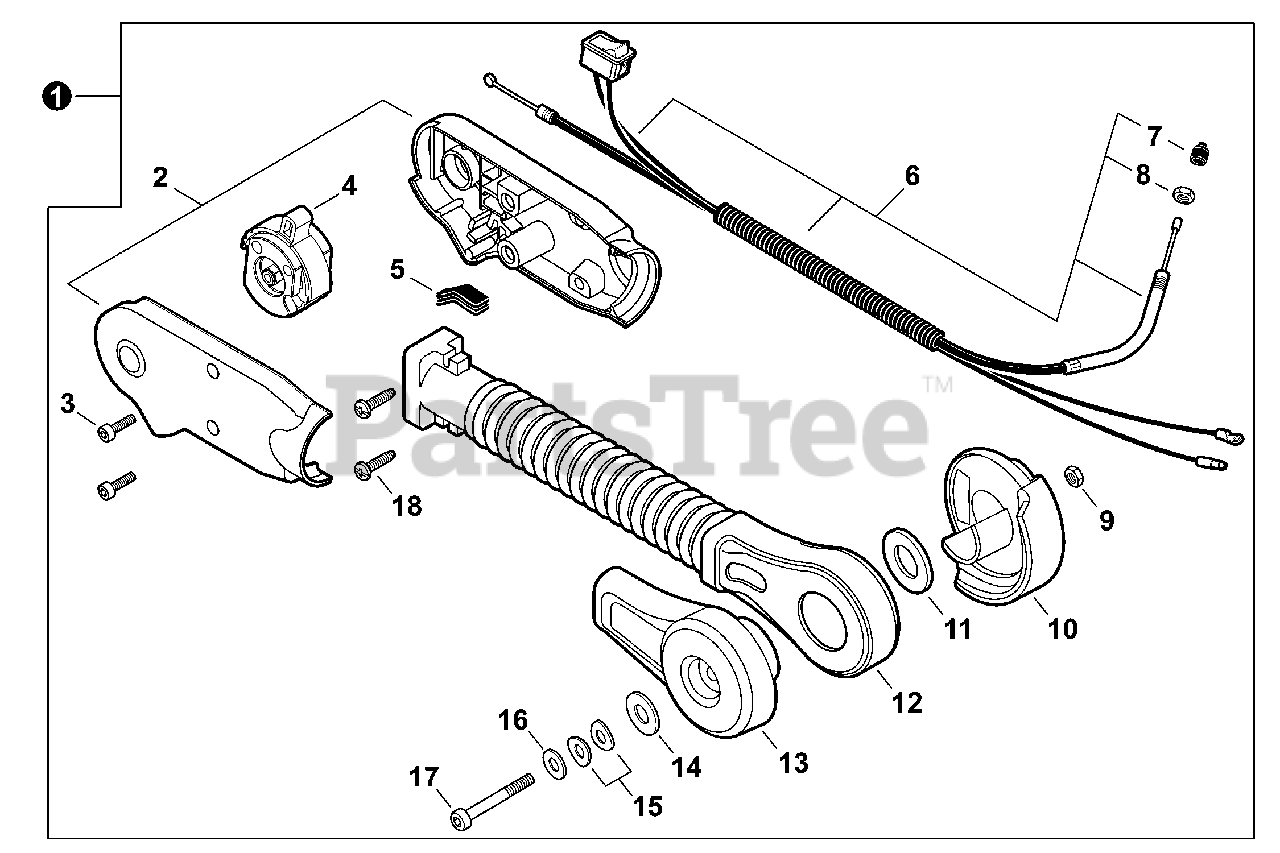

Throttle Control Parts Diagram

  • Title

1

Echo P021045690

THROTTLE CONTROL KIT - HIP MOUNT
(Superseded to P021052150)

Note: Includes ITEMS 2-18

$65.99

$

In Stock, Qty 6

0

2

Echo P021014672

GRIP SET, THROTTLE
(Superseded to P021014673)

$5.49

$

In Stock, only 4 left!

0

3

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo C470000162

CONTROL, THROTTLE

$7.99

$

In Stock, only 2 left!

0

5

Echo V144000181

GROMMET

$2.49

$

In Stock, only 2 left!

0

6

Echo V043000330

CABLE ASSY, CONTROL
(Superseded to P021052160)

Note: Includes ITEMS 7-8

$36.99

$

In Stock, Qty 5

0

7

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

8

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

9

Echo 90056250006

NUT, LOCK M6

$1.49

$

Usually ships in 2-4 days

0

10

Echo C472000041

BRACKET, ARM - INNER

$2.99

$

Usually ships in 2-4 days

0

11

Echo V336000000

WASHER 36.5×56×1.0

Note: Includes ITEMS 12-13

$1.99

$

In Stock, Qty 5

0

12

Echo C456000050

ARM, THROTTLE CONTROL

$8.49

$

In Stock, Qty 9

0

13

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$2.99

$

Usually ships in 2-4 days

0

14

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

15

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 3 left!

0

16

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

17

Echo V806000030

BOLT, TORX 6×75

$1.99

$

In Stock, only 1 left!

0

18

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0
