PB-770 H - Echo Backpack Blower (SN: P44914001001 - P44914999999) Backpack Frame, Harness Parts Diagram

Backpack Blower

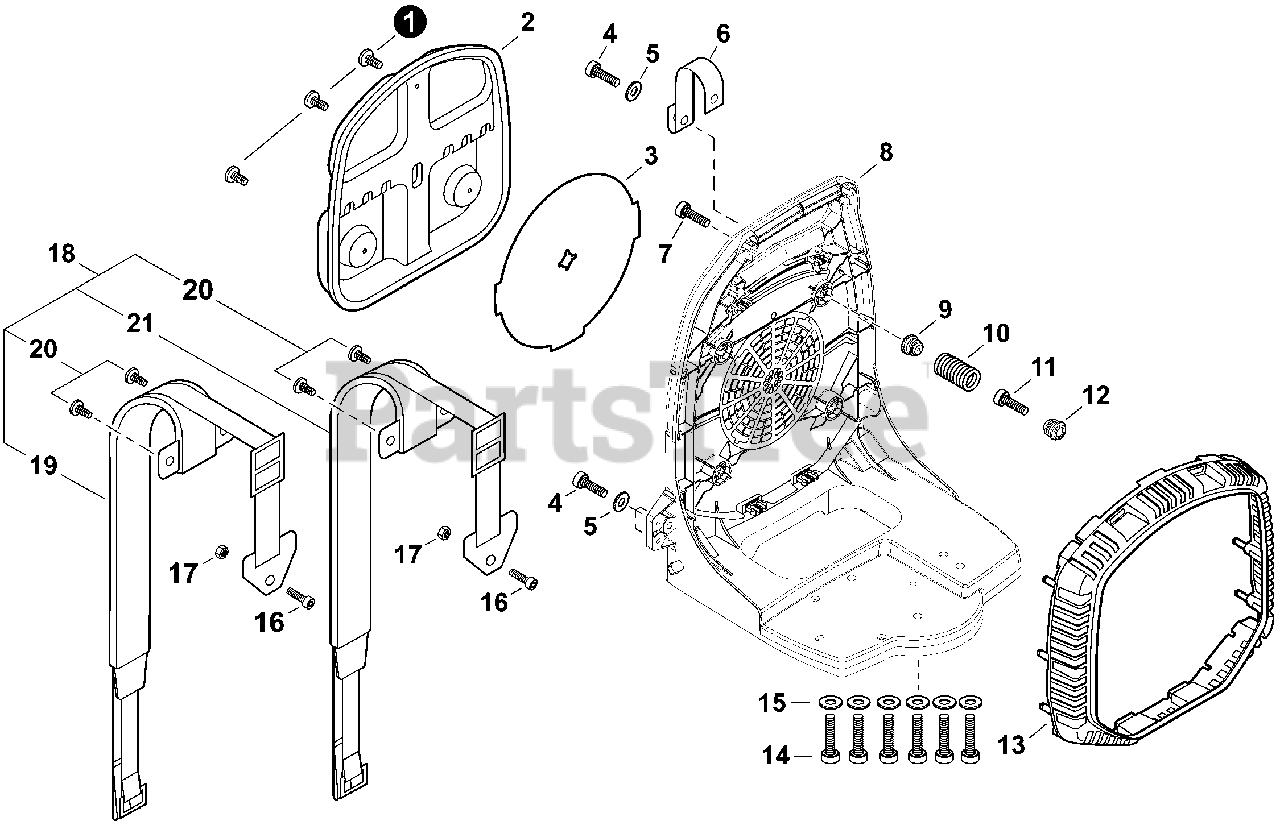

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo V491000090

CLIP

$1.49

$

In Stock, Qty 5

0

2

Echo C630000070

CUSHION, BACKPACK

$28.99

$

In Stock, only 2 left!

0

3

Echo C635000000

INSERT, COLD WEATHER

$6.49

$

In Stock, only 3 left!

0

4

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

5

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 10

0

6

Echo C617000380

STRAP, SAFETY 1.2×100

$0.99

$

In Stock, Qty 20+

0

7

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

8

Echo C620000335

FRAME, BACKPACK
(Superseded to P200000500)

$85.99

$

In Stock, only 1 left!

0

9

Echo V456000271

HOLDER, SPRING

$1.49

$

In Stock, Qty 5

0

10

Echo V450000780

SPRING, COMPRESSION

$1.99

$

In Stock, Qty 7

0

11

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo V456000260

HOLDER, SPRING

$1.99

$

In Stock, Qty 5

0

13

Echo E104000100

GUARD, LEAF

$15.99

$

In Stock, only 2 left!

0

14

Echo V253001030

SCREW 5×25

$0.99

$

In Stock, Qty 10

0

15

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 10

0

16

Echo V805000050

BOLT, TORX 5×30

$0.99

$

In Stock, Qty 20+

0

17

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

18

Echo P021046660

HARNESS KIT
(Superseded to P021046661)

Note: Includes ITEMS 19-21

$35.99

$

Usually ships in 2-4 days

0

19

Echo C061000560

HARNESS ASSY, LEFT
(Superseded to C061000561)

$14.99

$

In Stock, only 2 left!

0

20

Echo V491000090

CLIP

$1.49

$

In Stock, Qty 5

0

21

Echo C061000550

HARNESS ASSY, RIGHT
(Superseded to C061000551)

$14.99

$

Usually ships in 2-4 days

0
