PB-760 LNT - Echo Backpack Blower (SN: P43414001001 - P43414999999) Throttle Control S/N: P43414002021 - P43414999999 Parts Diagram

Backpack Blower

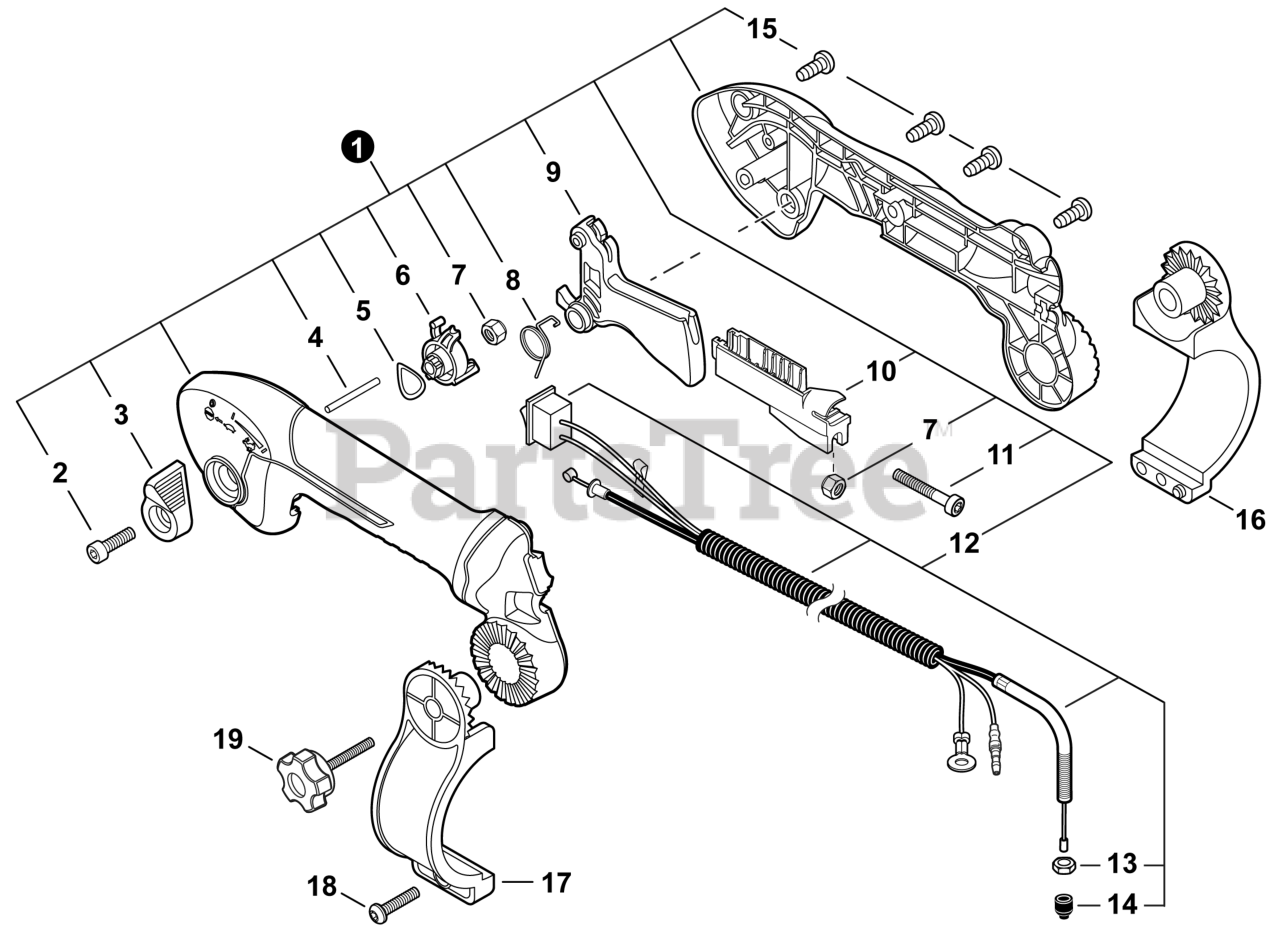

Throttle Control S/N: P43414002021 - P43414999999 Parts Diagram

  • Title

1

Echo P021052240

THROTTLE CONTROL KIT - TUBE MOUNT

Note: Includes Items 2-15

$54.99

$

In Stock, Qty 19

0

2

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

3

Echo C453000560

LEVER, THROTTLE

$6.99

$

In Stock, only 2 left!

0

4

Echo V621000040

PIN 3x32

$1.49

$

In Stock, Qty 8

0

5

Echo 42975201850

WASHER, WAVE 12

$1.99

$

In Stock, only 1 left!

0

6

Echo C453000580

CONTROL, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

7

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

8

Echo V452001630

SPRING, TORSION

$1.49

$

In Stock, only 2 left!

0

9

Echo C450000941

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 18

0

10

Echo C482000101

CONNECTOR, CABLE

$4.49

$

In Stock, only 1 left!

0

11

Echo V805000050

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 20+

0

12

Echo V043001170

CABLE ASSY, CONTROL
(Superseded to V043001171)

Note: Includes Items 13-14

$33.99

$

In Stock, only 2 left!

0

13

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

14

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

15

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

16

Echo C405000370

BRACKET, RIGHT

$2.49

$

In Stock, Qty 18

0

17

Echo C405000360

BRACKET, LEFT

$2.49

$

In Stock, Qty 20+

0

18

Echo V805000010

BOLT, TORX 5x20

$0.99

$

Usually ships in 2-4 days

0

19

Echo V299000630

KNOB, SCREW

$4.49

$

In Stock, Qty 8

0
