PB-760 LNT - Echo Backpack Blower (SN: P43414001001 - P43414999999) Fuel System Parts Diagram

Backpack Blower

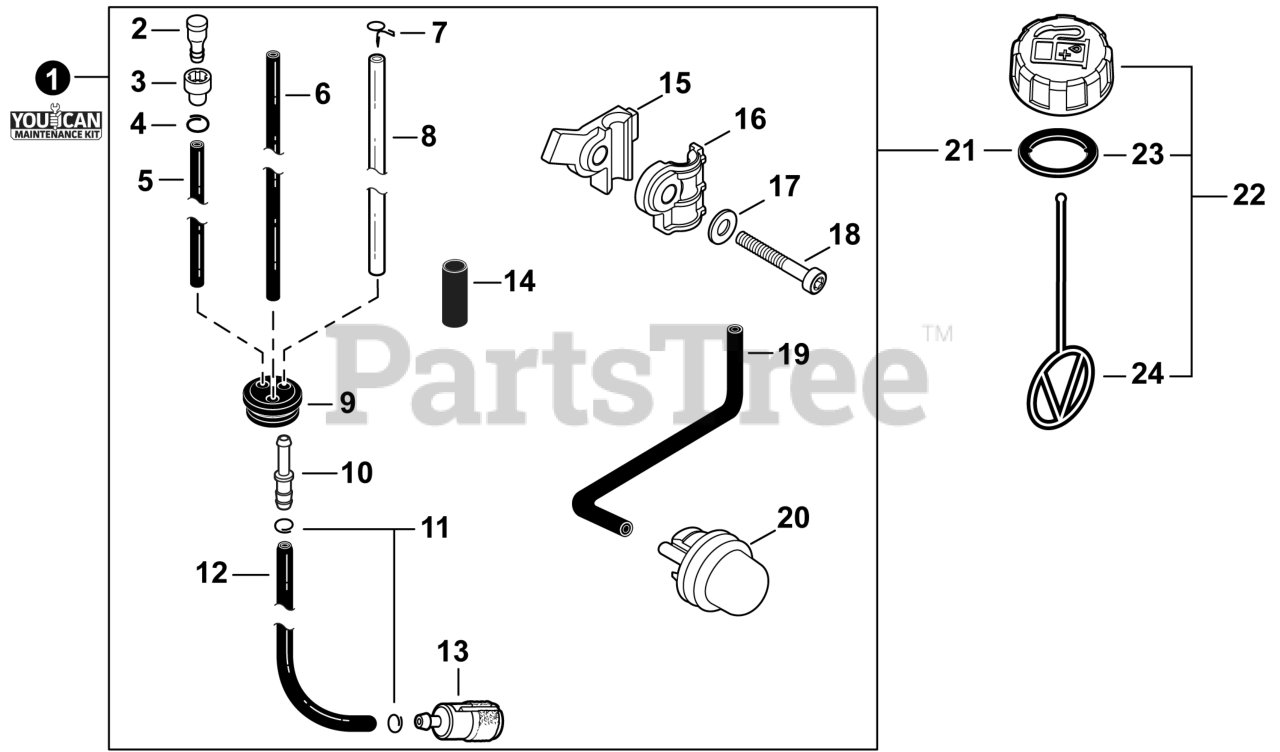

Fuel System Parts Diagram

  • Title

1

Echo 91204

FUEL SYSTEM KIT

Note: Includes Items 2-21

$29.99

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$7.99

$

Usually ships in 2-4 days

0

3

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, only 4 left!

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471002311

PIPE, FUEL 3x6x130 BLACK

$1.49

$

In Stock, Qty 9

0

6

Echo V471001471

PIPE, FUEL 2.4x5x200 BLACK

$3.99

$

In Stock, only 1 left!

0

7

Echo V490000510

CLIP, SPRING 5.2

$0.99

$

In Stock, Qty 14

0

8

Echo V471005141

PIPE, FUEL 3.5x6x210 CLEAR

$4.49

$

Usually ships in 2-4 days

0

9

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

10

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 11

0

12

Echo V470001951

PIPE, FUEL 3x5x105L BLACK

$5.99

$

Usually ships in 2-4 days

0

13

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

14

Echo V475004401

TUBE, FUEL LINE 16x18xL40

$1.49

$

Usually ships in 2-4 days

0

15

Echo E187000271

CLAMP, LOWER

$1.49

$

Usually ships in 2-4 days

0

16

Echo E187000280

CLAMP, UPPER

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000230

BOLT, TORX 5x25

$1.49

$

In Stock, Qty 7

0

19

Echo V471001241

PIPE, PURGE 2.4x5x140 BLACK

$3.49

$

In Stock, Qty 13

0

20

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

21

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

22

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 23-24

$5.99

$

In Stock, Qty 20+

0

23

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

24

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0
