PB-760 LNT - Echo Backpack Blower (SN: P43414001001 - P43414999999) Engine Parts Diagram

Backpack Blower

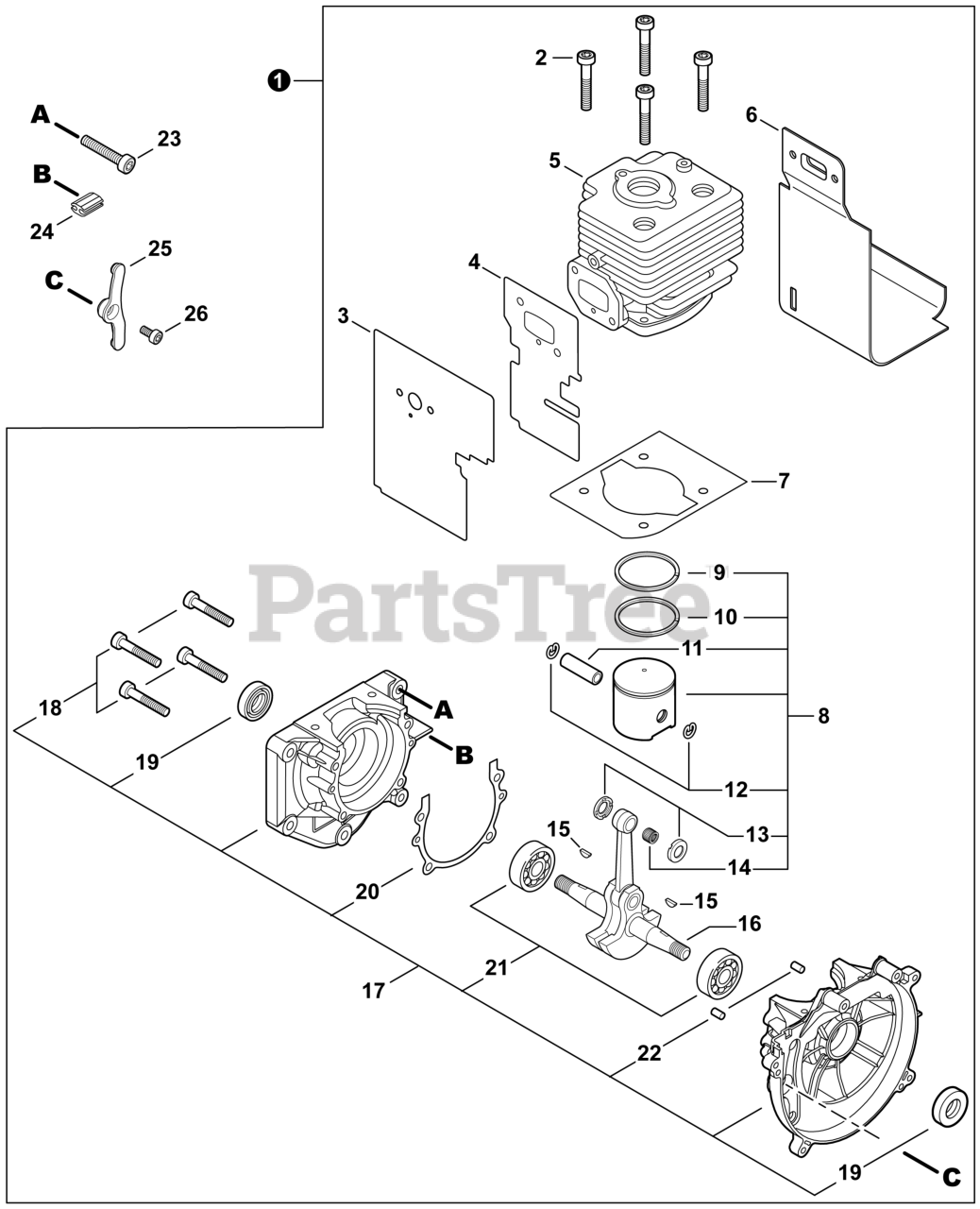

Engine Parts Diagram

  • Title
1

Echo SB1109

SHORT BLOCK

Note: Includes Items 2-22

$419.99

$

Usually ships in 2-4 days

0

2

Echo V805000220

BOLT, TORX 5x25

$1.49

$

In Stock, only 1 left!

0

3

Echo V103001692

HEAT SHIELD, INTAKE

$4.49

$

Usually ships in 2-4 days

0

4

Echo V103000530

HEAT SHIELD, INTAKE

$4.49

$

In Stock, only 3 left!

0

5

Echo A130002130

CYLINDER

$177.99

$

Usually ships in 2-4 days

0

6

Echo V104000950

HEAT SHIELD, EXHAUST

$9.99

$

In Stock, only 2 left!

0

7

Echo V100000770

GASKET, CYLINDER

$5.49

$

Usually ships in 2-4 days

0

8

Echo P021002984

PISTON KIT

Note: Includes Items 9-14

$98.99

$

In Stock, Qty 6

0

9

Echo A101000030

RING, PISTON

$11.99

$

In Stock, only 2 left!

0

10

Echo A101000020

RING, PISTON

$7.49

$

In Stock, only 2 left!

0

11

Echo V608000010

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

12

Echo 10001500120

RING, SNAP 8

$0.99

$

In Stock, Qty 11

0

13

Echo V307000550

WASHER, THRUST

$2.99

$

Usually ships in 2-4 days

0

14

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 7

0

15

Echo 90032303014

KEY, WOODRUFF 3x14

$1.49

$

In Stock, only 4 left!

0

16

Echo A011001260

CRANKSHAFT ASSY

$212.99

$

Usually ships in 2-4 days

0

17

Echo P021017260

CRANKCASE KIT

Note: Includes Items 18-22

$146.99

$

Usually ships in 2-4 days

0

18

Echo V805000180

BOLT, TORX 5x30

$1.49

$

In Stock, Qty 5

0

19

Echo V508000100

SEAL, OIL 15

$5.49

$

In Stock, only 4 left!

0

20

Echo V102000070

GASKET, CRANKCASE

$1.99

$

In Stock, only 3 left!

0

21

Echo 9403236302

BEARING, BALL 6302

$17.99

$

In Stock, only 1 left!

0

22

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

23

Echo V254000220

BOLT, TORX 6x30

$0.99

$

Usually ships in 2-4 days

0

24

Echo A127000400

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

25

Echo A127000240

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

26

Echo V253001040

BOLT, TORX 5x10

$1.49

$

Usually ships in 2-4 days

0
