PB-760 LNT - Echo Backpack Blower (SN: P39611001001 - P39611999999) Engine Parts Diagram

Backpack Blower

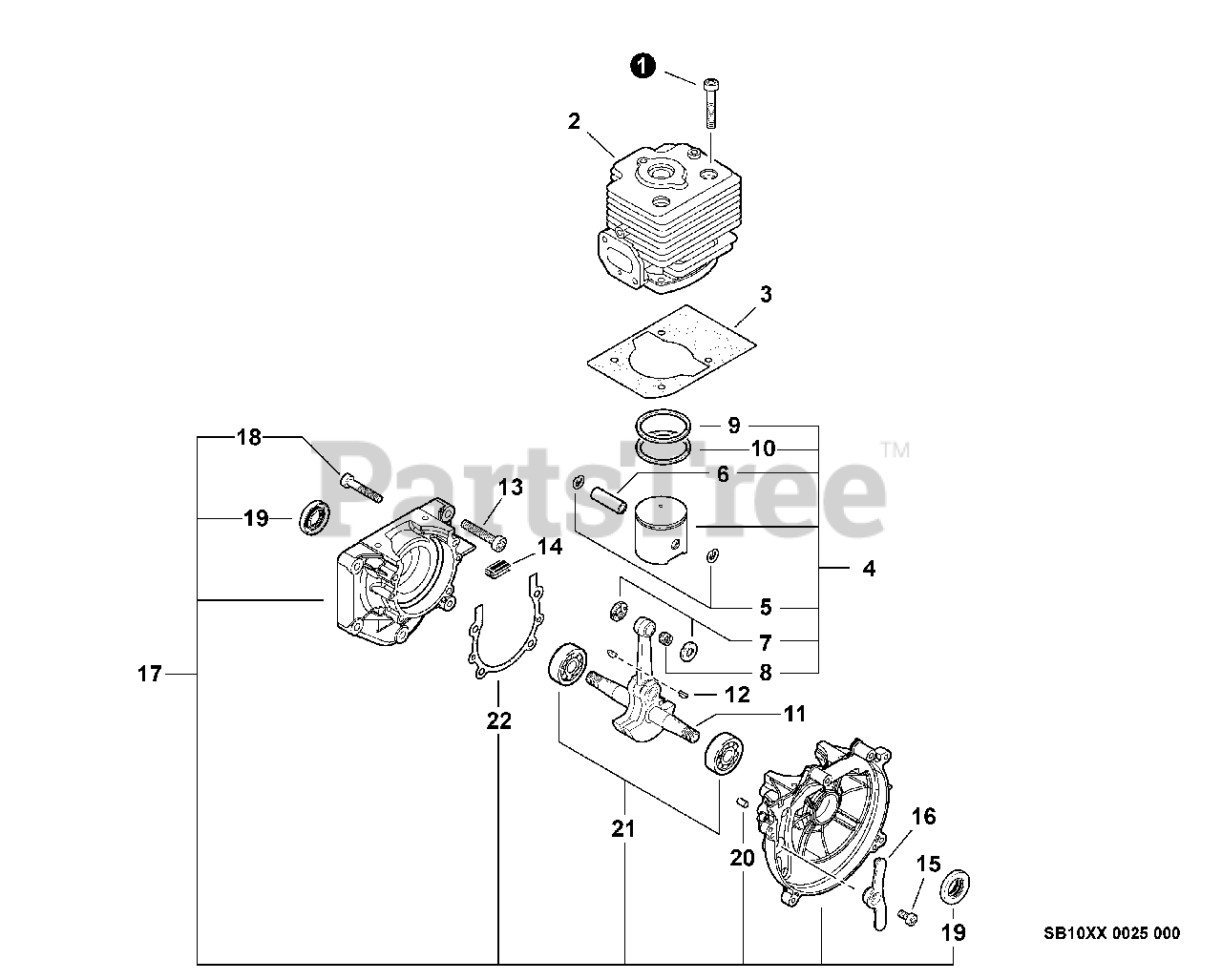

Engine Parts Diagram

  • Title

1

Echo V805000220

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0

2

Echo A130002130

CYLINDER

$177.99

$

Usually ships in 2-4 days

0

3

Echo V100000770

GASKET, CYLINDER

$5.49

$

Usually ships in 2-4 days

0

4

Echo P021002983

PISTON KIT
(Superseded to P021002984)

Note: Includes ITEMS 5-10

$98.99

$

In Stock, Qty 7

0

5

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

6

Echo V608000010

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

7

Echo V307000060

WASHER - 10

$6.49

$

Usually ships in 2-4 days

0

8

Echo V555000010

BEARING, NEEDLE - 10

$10.99

$

In Stock, only 1 left!

0

9

Echo A101000030

RING, PISTON

$11.99

$

In Stock, only 2 left!

0

10

Echo A101000020

RING, PISTON

$7.49

$

In Stock, only 2 left!

0

11

Echo A011001260

CRANKSHAFT ASSY

$212.99

$

Usually ships in 2-4 days

0

12

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 2 left!

0

13

Echo V254000220

SCREW - 6X30

$0.99

$

Usually ships in 2-4 days

0

14

Echo A127000400

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

15

Echo V805000130

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

16

Echo A127000240

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

17

Echo P021017260

CRANKCASE KIT

Note: Includes ITEMS 18-22

$146.99

$

Usually ships in 2-4 days

0

18

Echo V805000180

SCREW - 5X30

$1.49

$

In Stock, Qty 5

0

19

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$5.49

$

In Stock, Qty 5

0

20

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

21

Echo 9403236302

BEARING, BALL - 6302

$17.99

$

In Stock, only 1 left!

0

22

Echo V102000070

GASKET, CRANKCASE

$1.99

$

In Stock, only 3 left!

0
