PB-760 LNT - Echo Backpack Blower (SN: P37912001001 - P37912999999) Fuel System Parts Diagram

Backpack Blower

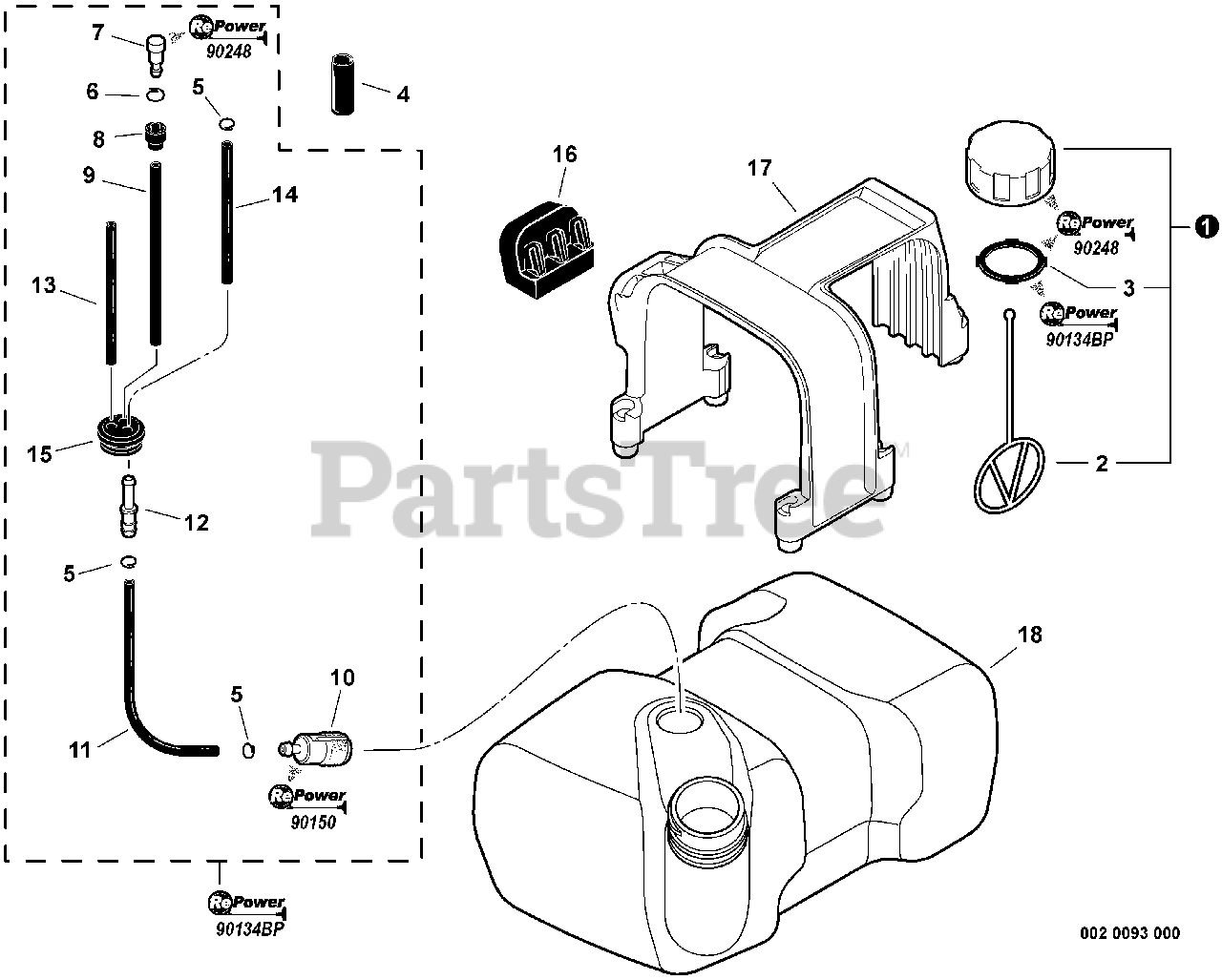

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

4

Echo V475004400

SLEEVE
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

5

Echo V490001240

CLIP - 6

$0.99

$

Usually ships in 2-4 days

0

6

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

8

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

9

Echo V471002310

PIPE - 3X6X130 -- BLACK
(Superseded to V471002311)

$1.49

$

In Stock, Qty 9

0

10

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

$6.99

$

In Stock, Qty 20+

0

11

Echo V470001950

PIPE - FUEL

$4.49

$

In Stock, only 1 left!

0

12

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

13

Echo V471001470

PIPE - 2.4X5X200 -- BLACK
(Superseded to V471001471)

$3.99

$

In Stock, only 1 left!

0

14

Echo V471003580

PIPE - 3X5X135 -- BLACK

$5.49

$

In Stock, only 3 left!

0

15

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 16

0

16

Echo V420004620

CUSHION

$4.99

$

Usually ships in 2-4 days

0

17

Echo A392000280

GUARD, FUEL TANK
(Superseded to A392000281)

$9.49

$

In Stock, only 2 left!

0

18

Echo A350000920

TANK, FUEL
(Superseded to A350000921)

$34.99

$

Usually ships in 2-4 days

0

19

Echo 90134BP

RePower FUEL SYSTEM KIT
(Superseded to 90134Y)

$29.99

$

In Stock, Qty 18

0

20

Echo 90150

Repower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available

21

Echo 90248

Repower CAP AND VENT KIT
(Superseded to Discontinued)

$

$

Not available
