PB-760 LNH - Echo Backpack Blower (SN: P43314001001 - P43314999999) Fuel System Parts Diagram

Backpack Blower

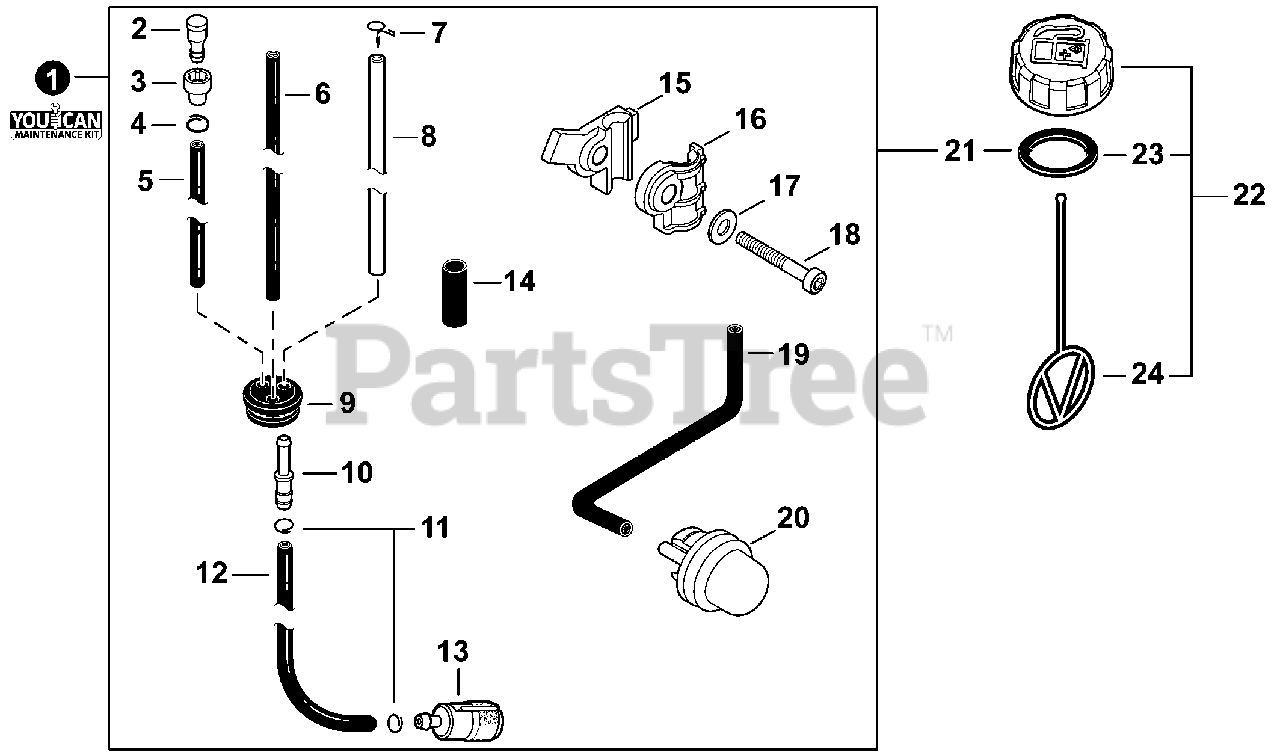

Fuel System Parts Diagram

  • Title
1

Echo 91204

FUEL SYSTEM KIT - YOUCAN™

Note: Includes ITEMS 2-21

$29.99

$

In Stock, Qty 18

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471002310

PIPE, FUEL VENT 3×6×130
(Superseded to V471002311)

$1.49

$

In Stock, Qty 9

0

6

Echo V471001470

PIPE, FUEL 2.4×5×200 BLACK
(Superseded to V471001471)

$3.99

$

In Stock, only 1 left!

0

7

Echo V490000510

CLIP, SPRING Ø5.2

$0.99

$

In Stock, only 1 left!

0

8

Echo V471005140

PIPE, FUEL 3.5×6×210 CLEAR
(Superseded to V471005141)

$4.49

$

Usually ships in 2-4 days

0

9

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 16

0

10

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V470001950

PIPE, FUEL 3×5×105L BLACK

$4.49

$

In Stock, only 1 left!

0

13

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

14

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

15

Echo E187000271

CLAMP, LOWER

$1.49

$

Usually ships in 2-4 days

0

16

Echo E187000280

CLAMP, UPPER

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, Qty 6

0

19

Echo V471001240

PIPE, PURGE 2.5×5×140
(Superseded to V471001241)

$3.49

$

In Stock, Qty 13

0

20

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

21

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

22

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 23-24

$5.99

$

In Stock, Qty 20+

0

23

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

24

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0
