PB-755 SH - Echo Backpack Blower (SN: P53014001001 - P53014999999) Throttle Control Parts Diagram

Backpack Blower

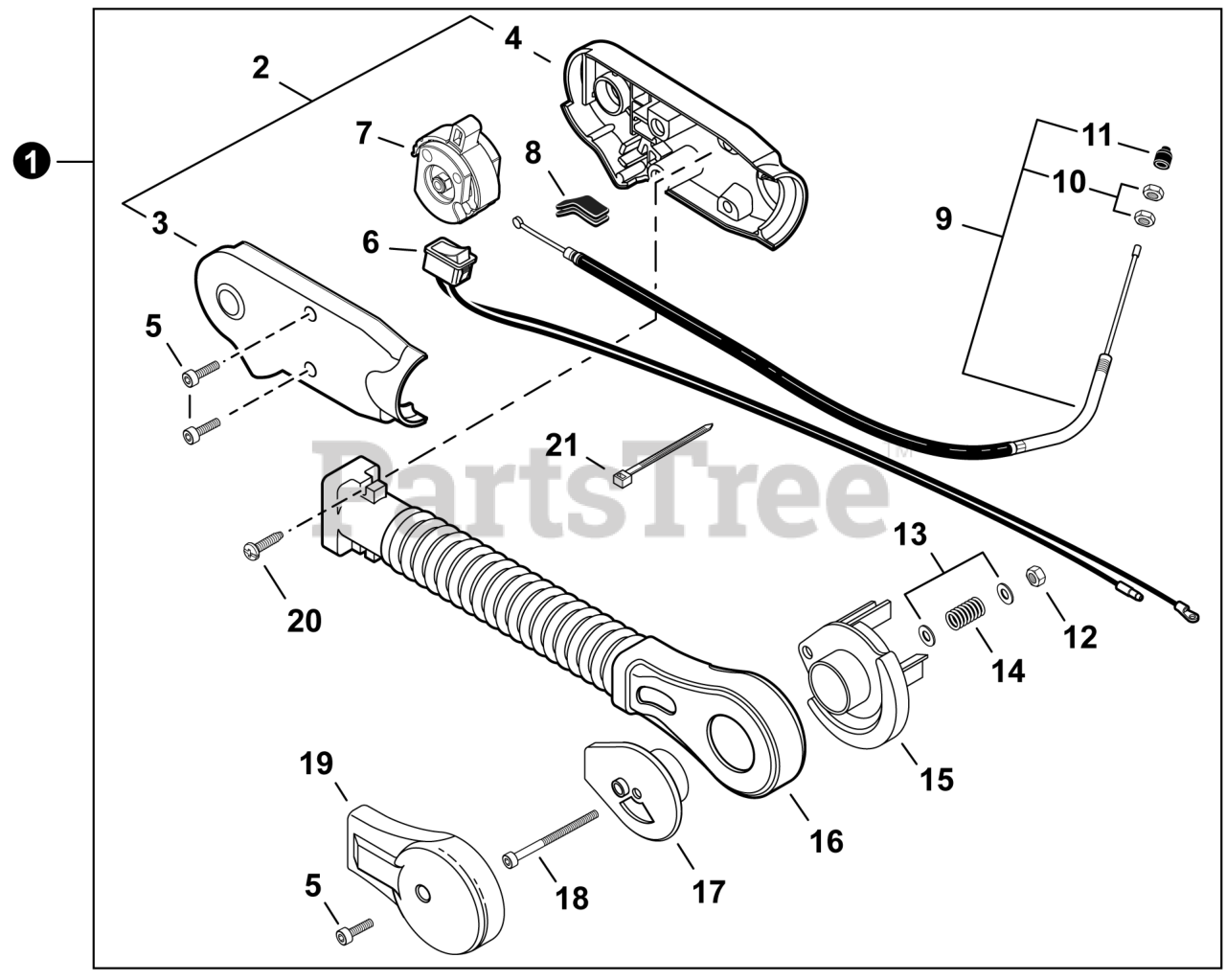

Throttle Control Parts Diagram

  • Title

1

Echo P021053680

THROTTLE CONTROL KIT - HIP MOUNT
(Superseded to 900109)

Note: Includes Items 1-21

$63.99

$

In Stock, only 2 left!

0

2

Echo P021014673

GRIP SET, THROTTLE

Note: Includes Items 3-4

$5.49

$

In Stock, only 4 left!

0

3

Echo C471000115

GRIP, LEFT THROTTLE

$3.49

$

In Stock, only 1 left!

0

4

Echo C471000102

GRIP, RIGHT THROTTLE

$3.49

$

Usually ships in 2-4 days

0

5

Echo 90010505014

BOLT 5x14

$1.49

$

In Stock, Qty 20+

0

6

Echo A045000790

SWITCH, ON-OFF

$12.99

$

Usually ships in 2-4 days

0

7

Echo C470000162

CONTROL, THROTTLE

$7.99

$

In Stock, only 2 left!

0

8

Echo V144000181

GROMMET

$2.49

$

In Stock, only 2 left!

0

9

Echo V430001670

CABLE ASSY, THROTTLE

Note: Includes Items 10-11

$20.99

$

In Stock, only 2 left!

0

10

Echo 90050300006

NUT 6 MM

$0.99

$

In Stock, Qty 6

0

11

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

12

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

13

Echo 30021700610

WASHER 5.5x18x1

$0.99

$

In Stock, Qty 14

0

14

Echo V450000510

SPRING, COMPRESSION 9.53x24.13

$1.49

$

Usually ships in 2-4 days

0

15

Echo C472000020

BRACKET, ARM - INNER

$3.49

$

Usually ships in 2-4 days

0

16

Echo C456000050

ARM, THROTTLE CONTROL

$8.49

$

In Stock, Qty 10

0

17

Echo C472000030

BRACKET, ARM - OUTER

$2.49

$

Usually ships in 2-4 days

0

18

Echo V253000110

SCREW M5x80

$1.99

$

Usually ships in 2-4 days

0

19

Echo C459000000

BRACKET, ARM - OUTER

$2.99

$

In Stock, only 3 left!

0

20

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 17812143230

STRAP, CABLE

$3.49

$

In Stock, only 4 left!

0
