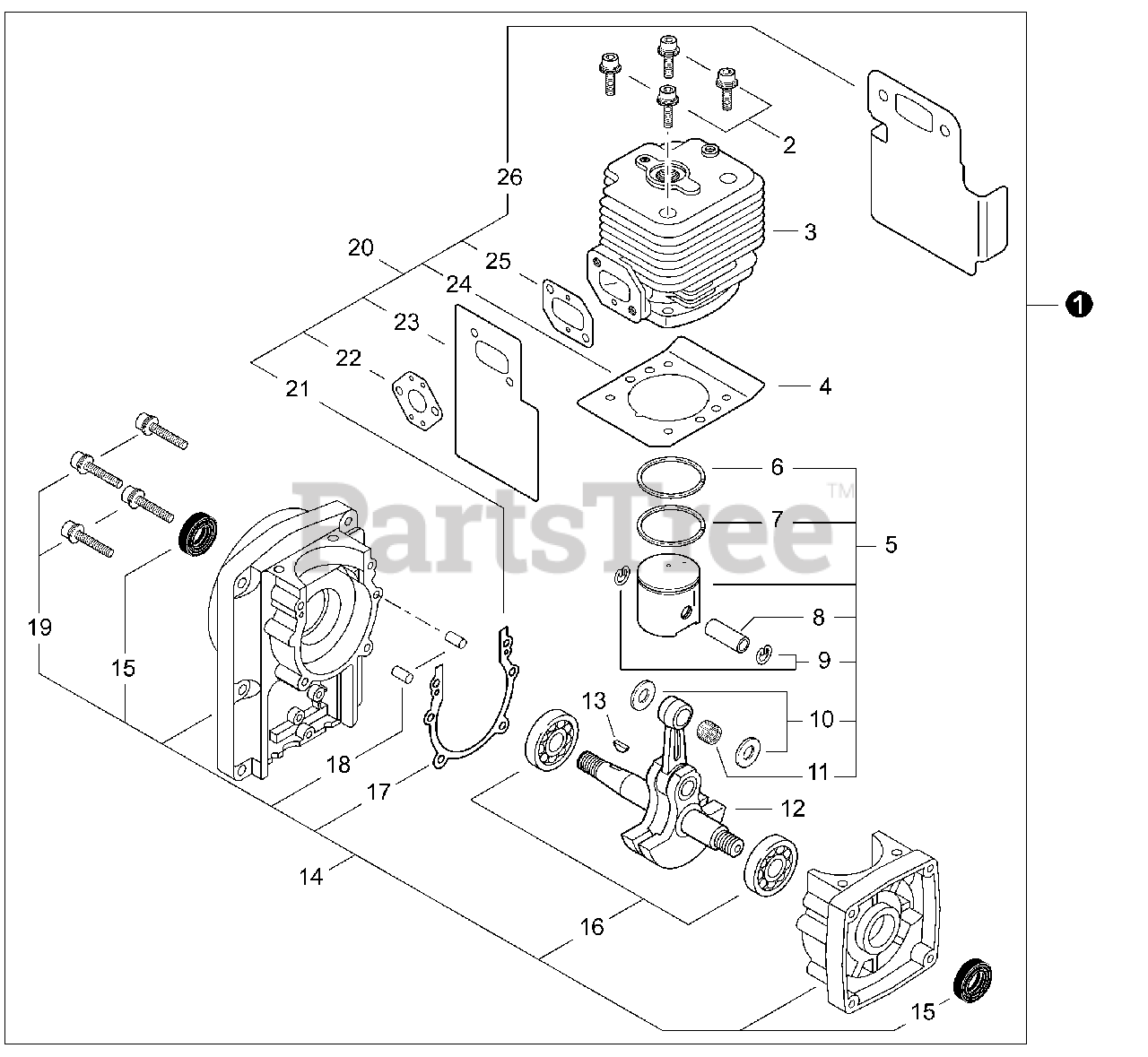

PB-755 SH - Echo Backpack Blower (SN: P04513001001 - P04513999999) Engine Parts Diagram

Backpack Blower

Engine Parts Diagram

  • Title
1

Echo SB1070

SHORT BLOCK

Note: Includes Items 2-26

$401.99

$

In Stock, only 2 left!

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo A130001000

CYLINDER

$221.99

$

In Stock, only 1 left!

0

4

Echo V100000100

GASKET, CYLINDER

$8.99

$

In Stock, Qty 9

0

5

Echo P021002983

PISTON KIT
(Superseded to P021002984)

Note: Includes Items 5-11

$98.99

$

In Stock, Qty 6

0

6

Echo A101000030

RING, PISTON

$11.99

$

In Stock, only 2 left!

0

7

Echo A101000020

RING, PISTON

$7.49

$

In Stock, only 2 left!

0

8

Echo V608000010

PIN, PISTON 6×10×40

$6.99

$

Usually ships in 2-4 days

0

9

Echo 10001500120

RING, SNAP 8

$0.99

$

In Stock, Qty 11

0

10

Echo V307000060

WASHER, THRUST 10×17×2.4

$6.49

$

Usually ships in 2-4 days

0

11

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 7

0

12

Echo A011000140

CRANKSHAFT ASSY

$214.99

$

In Stock, only 1 left!

0

13

Echo 90032303014

KEY, WOODRUFF 3×14

$1.49

$

In Stock, only 4 left!

0

14

Echo P021002991

CRANKCASE KIT

Note: Includes Items 15-19

$245.99

$

Usually ships in 2-4 days

0

15

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$5.49

$

In Stock, only 4 left!

0

16

Echo 9403236302

BEARING, BALL 6302

$17.99

$

In Stock, only 1 left!

0

17

Echo V102000010

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 18

0

18

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90016205035

BOLT 5×35

$1.49

$

In Stock, Qty 6

0

20

Echo P021005932

GASKET KIT

Note: Includes Items 21-26

$18.99

$

In Stock, only 1 left!

0

21

Echo V102000010

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 18

0

22

Echo V103000080

GASKET, INTAKE

$1.49

$

In Stock, Qty 7

0

23

Echo V103000130

HEAT SHIELD, INTAKE

$3.49

$

In Stock, only 3 left!

0

24

Echo V100000100

GASKET, CYLINDER

$8.99

$

In Stock, Qty 9

0

25

Echo V103000140

GASKET, INTAKE

$1.49

$

In Stock, Qty 9

0

26

Echo V104000720

HEAT SHIELD, EXHAUST

$3.49

$

In Stock, Qty 5

0
