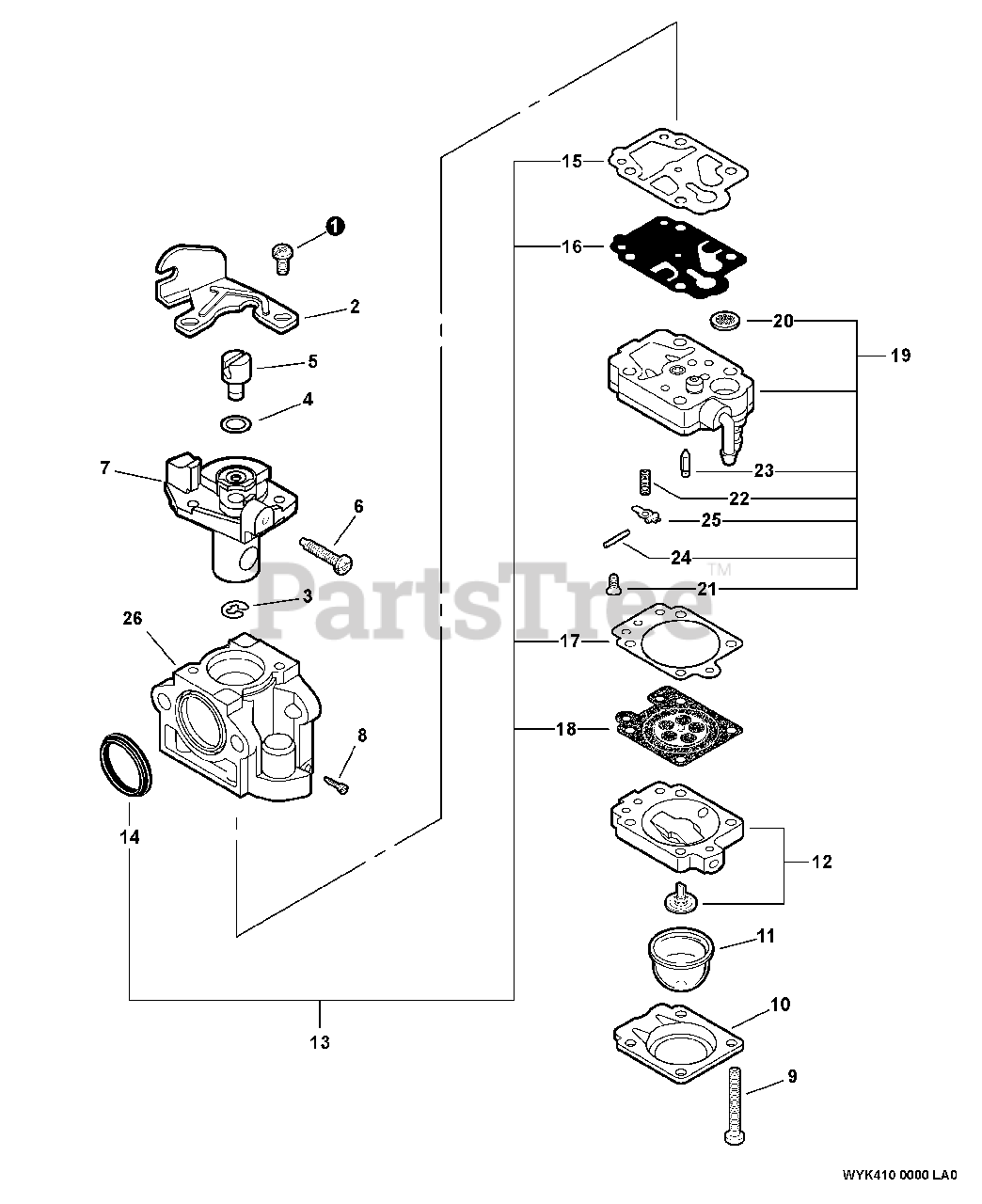

PB-755 - Echo Backpack Blower (SN: P38526001001 - P38526999999) Carburetor -- WYK-410 Parts Diagram

Backpack Blower

Carburetor -- WYK-410 Parts Diagram

  • Title

Echo A021004060

CARBURETOR WYK-410
(Superseded to A021004061)

$70.99

$

Usually ships in 2-4 days

0

$2.49

$

In Stock, only 3 left!

0

2

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

4

$0.99

$

In Stock, only 1 left!

0

5

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

Echo P003005210

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

8

Echo P003001130

NEEDLE - HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

9

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

10

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

11

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

12

Echo 12318005560

PURGE BASE ASSY

$7.49

$

Usually ships in 2-4 days

0

13

Echo P033000070

DIAPHRAGM/GASKET KIT
(Superseded to P003000060)

Note: Includes ITEMS 14-18

$10.99

$

In Stock, Qty 7

0

14

------------------

SEAL

$

$

Not available

15

------------------

GASKET, PUMP

$

$

Not available

16

------------------

DIAPHRAGM, PUMP

$

$

Not available

17

------------------

GASKET, METERING

$

$

Not available

18

------------------

DIAPHRAGM, METERING

$

$

Not available

19

Echo P003000630

PUMP BODY ASSY

Note: Includes ITEMS 20-25

$22.99

$

In Stock, only 1 left!

0

20

------------------

STRAINER

$

$

Not available

21

------------------

SCREW, METERING LEVER PIN

$

$

Not available

22

------------------

SPRING, METERING LEVER

$

$

Not available

23

------------------

VALVE, INLET NEEDLE

$

$

Not available

24

------------------

PIN, METERING LEVER

$

$

Not available

25

------------------

LEVER, METERING

$

$

Not available

26

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
